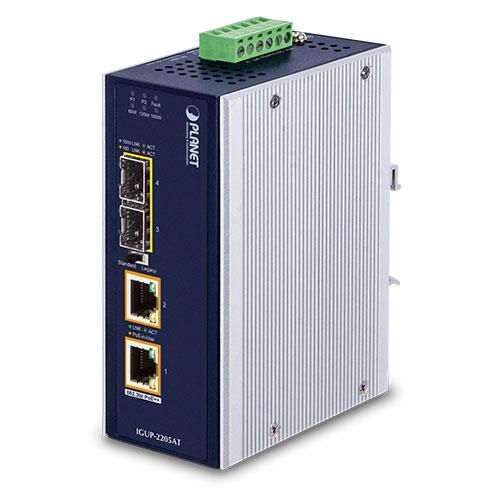

Industrial 2-Port 100/1000X
€233,85
Industrial 2-Port 100/1000X
Availability: In stock
Secure payment · Fast delivery
EAN:4711605284394Categories:, , Brand:
Industrial 2-Port 100/1000X
Specifications
Specifications
| Certification | FCC Part 15 Class A, CE |
| DIN rail mounting | Yes |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
| LED indicators | Fault, PoE, Power, System |
| Product colour | Blue |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Converter input interface | 1000Base-T, 100Base-T, 10Base-T |
| Converter output interface | 1000Base-BX, 1000Base-LX, 1000Base-SX |
| Duplex system | Full, Half |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 |
| Flow control support | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Operating relative humidity (H-H) | 5 - 90 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Performance | Fiber cable diameters supported (core/cladding) 50/125, 62.5/125, 9/125Fiber mode structure Multi-mode, Single-mode |
| Fiber cable diameters supported (core/cladding) 50/125, 62.5/125, 9/125 | Fiber mode structure Multi-mode, Single-mode |
| Fiber cable diameters supported (core/cladding) | 50/125, 62.5/125, 9/125 |
| Fiber mode structure | Multi-mode, Single-mode |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 0 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 2 |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power | Input voltage 12 - 48 VPower over Ethernet (PoE) Yes Total Power over Ethernet (PoE) budget 90 W |
| Input voltage | 12 - 48 V |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90 W |
| Vendor information | Brand Name Planet Warranty 5 År |
| Brand Name Planet | Warranty 5 År |
| Brand Name | Planet |
| Warranty | 5 År |
| Kategorier | Hovedkategori Network Underkategori Wired Network Underkategori Network Media Converters |
| Hovedkategori | Network |
| Underkategori | Network Media Converters |
