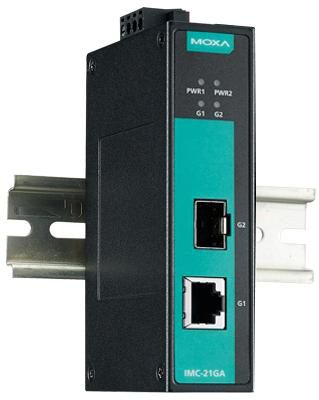

IMC-21GA
€221,93
IMC-21GA
Availability: In stock
Secure payment · Fast delivery
EAN:5711783332671Categories:, , Brand:
IMC-21GA
Specifications
Specifications
| Design | DIN rail mounting Yes Housing material Metal Internal No |
| DIN rail mounting | Yes |
| Housing material | Metal |
| Internal | No |
| Converter input interface | 1000Base-T, 100Base-T, 10Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX, 100Base-LX, 100Base-SX |
| Copper ethernet cabling technology | 1000BASE-LX, 1000BASE-SX, 1000BASE-T, 100BASE-T, 10BASE-T |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3az |
| Operational conditions | Operating relative humidity (H-H) 5 - 95 %Operating temperature (T-T) -10 - 60 °CStorage temperature (T-T) -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Link budget | 12 dB |
| Maximum transfer distance | 10000 m |
| Mean time between failures (MTBF) | 2762058 h |
| Rx power (max) | -3 dBmW |
| Rx power (min) | -21 dBmW |
| Tx power (max) | -3 dBmW |
| Tx power (min) | -9 dBmW |
| Wavelength | 1310 nm |
| Ports & interfaces | Connectivity technology Wired Fiber optic connector SC, SFP |
| Connectivity technology Wired | Fiber optic connector SC, SFP |
| Connectivity technology | Wired |
| Fiber optic connector | SC, SFP |
| Power | Input voltage 12 - 48 V |
| Input voltage | 12 - 48 V |
| Vendor information | Brand Name Moxa Warranty 2 År |
| Brand Name Moxa | Warranty 2 År |
| Brand Name | Moxa |
| Warranty | 2 År |
| Kategorier | Hovedkategori Surveillance & Security Underkategori Infrastructure Underkategori Network Media Converters |
| Hovedkategori | Surveillance & Security |
| Underkategori | Network Media Converters |
