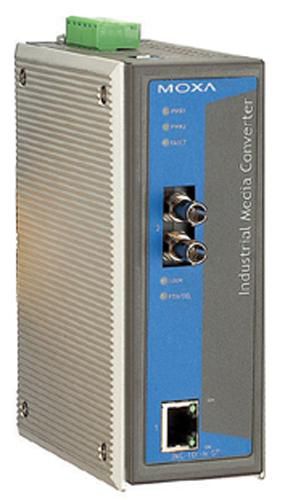

Moxa Industrial Ethernet-to-fiber media converters
Industrial 10/100BaseT(X) to 100BaseFX Media Converters The IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature of 0 to 60˚C, and an extended operating temperature of -40 to 75˚C. All IMC-101 series are subjected to a 100% burn-in test. Features: - 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X; - Link Fault Pass-Through (LFP) (media converters should work as a pair); - Power failure, port
Availability: In stock
Industrial 10/100BaseT(X) to 100BaseFX Media Converters Features: Industrial 10/100BaseT(X) to 100BaseFX Media Converters The IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101’s reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. The IMC-101 series is available in models that support an operating temperature of 0 to 60˚C, and an extended operating temperature of -40 to 75˚C. All IMC-101 series are subjected to a 100% burn-in test. Features: - 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X; - Link Fault Pass-Through (LFP) (media converters should work as a pair); - Power failure, port break alarm by relay output; - Redundant power inputs; - 40 to 75°C operating temperature range (T models); - Designed for hazardous locations (Class 1 Div. 2/Zone 2).
Specifications
| Certification | UL, CSA, FCC, CISPR |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Cabling technology | 10/100Base-T(X), 100Base-FX |
| Maximum data transfer rate | 100 Mbit/s |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Dimensions (WxDxH) | 53.6 x 135 x 105 mm |
| Fiber type | 50/125, 62.5/125 µm |
| Full duplex | Yes |
| Interface | RJ-45, ST (2.5mm) |
| Power budget | 12 dB |
| Power requirements | 24V, 0.16A |
| Maximum transfer distance | 5000 m |
| Mean time between failures (MTBF) | 401000 h |
| Sensitivity | -32 dBmW |
| Wavelength | 1310 nm |
| Connectivity technology | Wired |
| Brand Name | Moxa |
| Warranty | 2 years |
