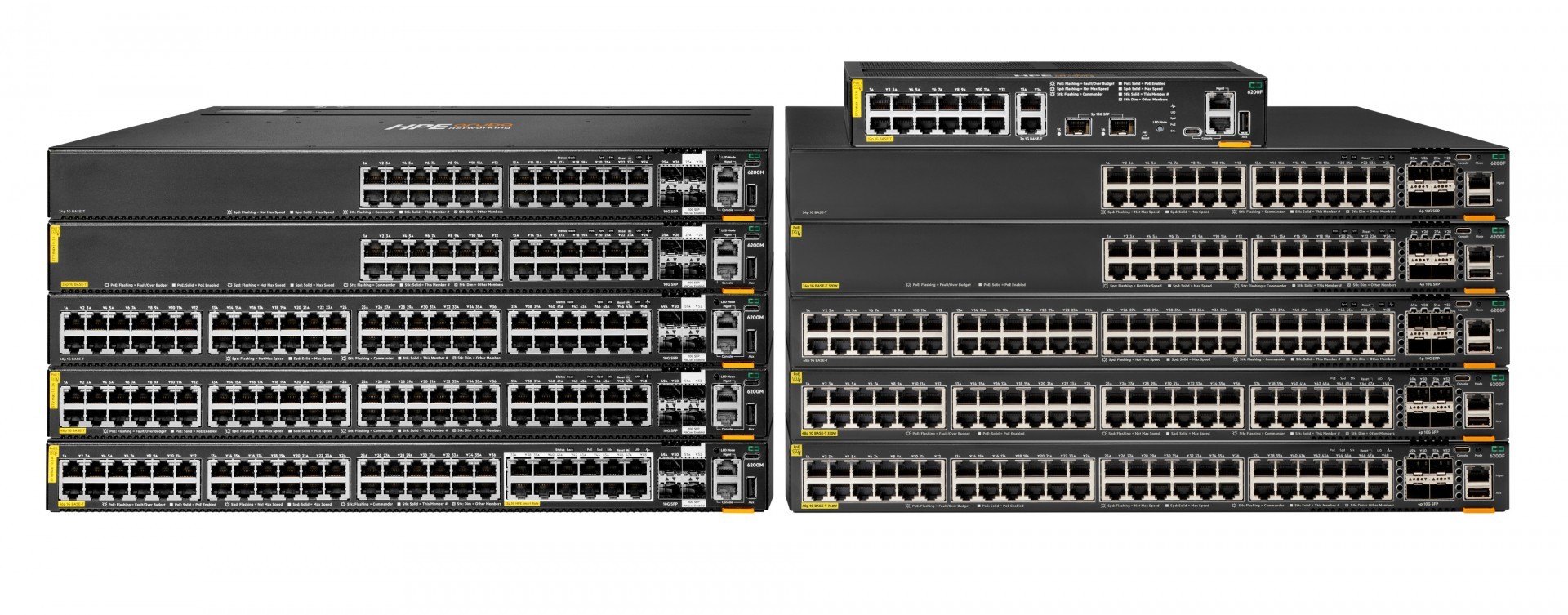

HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch
€10056,52
- Managed L3
- Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45/USB Type-C
- 10G support
- MAC address table: 32000 entries Switching capacity: 272 Gbit/s
- Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
Availability: In stock
Secure payment · Fast delivery
EAN:190017535043Categories:, , Brand:
HPE Aruba Networking CX 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP modules quantity: 4, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 272 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting
Specifications
Management features
| Switch type | Managed |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 60.0000 |
Ports & interfaces
| Console port | RJ-45/USB Type-C |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Performance
| Flash memory | 16000 MB |
| Internal memory | 8000 MB |
| Physical stacking (units) | 8 |
| Processor frequency | 1800 MHz |
| Processor model | ARM Cortex-A72 |
| Built-in processor | Yes |
Network
| 10G support | Yes |
Design
| Rack mounting | Yes |
Data transmission
| Switching capacity | 272 Gbit/s |
| Throughput | 130.9 Mpps |
| MAC address table | 32000 entries |
Power
| AC input voltage | 200 - 240 V |
| Power consumption note | 76W at 230 VAC |
| Power supply included | Yes |
| Power consumption (typical) | 76.0000 |
| Power source | AC |
Weight & dimensions
| Depth | 442.47 mm |
| Width | 43.9 mm |
| Height | 383.8 mm |
Other features
| I/O ports | 36 x 10/100/1000BASE-T Class 6 PoE ports, supporting up to 60W per port 12 x HPE Smart Rate 1/2.5/5G BaseT Class 6 PoE ports supporting up to 60W per port 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) Supports PoE standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Dimensions (W x D x H) (imperial) | 43,9 x 442,5 x 383,8 |
| Latency | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Memory and processor | CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC |
| Fan | Fixed fans |
