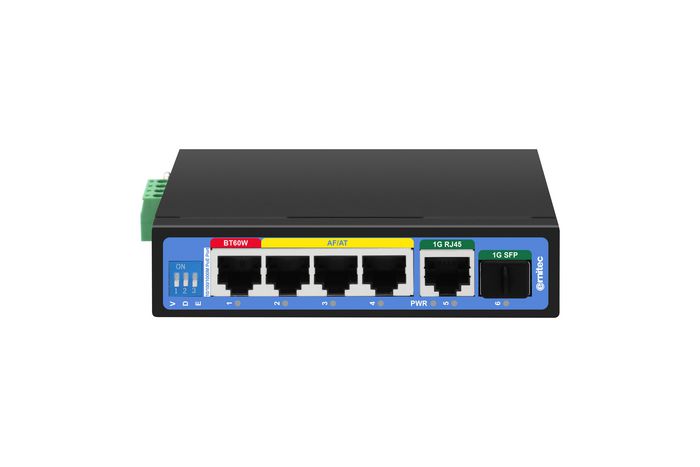

Ernitec 6-port Gigabit Intelligent Industrial PoE Switch - PoE 120W
The Ernitec 6-port 1000Mbps Intelligent Industrial PoE Switch is designed for high-performance and reliability in industrial settings. Here are some key features: Gigabit Ethernet Ports: Six 10/100/1000 Mbps PoE ports for fast and efficient data transfer. PoE Capability: Supports Power over Ethernet (PoE) to power devices like IP cameras and wireless access points directly through the Ethernet cables. Industrial-Grade Design: Built to withstand harsh environments with a rugged housing and wide operating temperature range. Flexible Network Expansion: Two Gigabit SFP uplink ports for easy network expansion. This switch is ideal for applications requiring robust and reliable network connectivity in challenging environments. 4 x 1000Mbps PoE RJ45 ports 1 x 1000Mbps uplink RJ45 port 1 x 1000Mbps uplink SFP port Ports 1-4 support standard PoE power supply and comply with IEEE 802.3af/at international standards. Port 1 support 90W BT IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IE
Availability: In stock
The Ernitec 6-port 1000Mbps Intelligent Industrial PoE Switch is designed for high-performance and reliability in industrial settings. Here are some key features: Gigabit Ethernet Ports: Six 10/100/1000 Mbps PoE ports for fast and efficient data transfer. PoE Capability: Supports Power over Ethernet (PoE) to power devices like IP cameras and wireless access points directly through the Ethernet cables. Industrial-Grade Design: Built to withstand harsh environments with a rugged housing and wide operating temperature range. Flexible Network Expansion: Two Gigabit SFP uplink ports for easy network expansion. This switch is ideal for applications requiring robust and reliable network connectivity in challenging environments. 4 x 1000Mbps PoE RJ45 ports 1 x 1000Mbps uplink RJ45 port 1 x 1000Mbps uplink SFP port Ports 1-4 support standard PoE power supply and comply with IEEE 802.3af/at international standards. Port 1 support 90W BT IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3z (Gigabit Ethernet Fibre Standards) IEEE802.3x (Flow Control) Operates in temperatures ranging from -40°C to 75°C. Features a 4-pin industrial terminal and DC2.1 input interface, with a wide voltage input of DC48-55V. Supports VLAN, Genius, and Extend modes. Suitable for both rail and wall mounting installations.
Specifications
| NDAA Compliance | Yes |
| Forwarding rate | 8,928 Mpps |
| Jumbo frames support | Yes |
| MAC address table | 2000 entries |
| Packet forwarding | Yes |
| Store-and-forward | Yes |
| Switching capacity | 12 Gbit/s |
| Housing material | Metal |
| LED indicators | PoE, Power, System |
| On/off switch | Yes |
| Reset button | Yes |
| RoHS compliance | Yes |
| Switch type | Unmanaged |
| Networking standards | IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3U |
| VLAN support | Yes |
| Operating temperature (T-T) | -40-70 °C |
| Material | Metal |
| Power LED | Yes |
| Manual | Yes |
| Mounting brackets included | Yes |
| Fanless | Yes |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| SFP module slots quantity | 1 |
| Uplink ports quantity | 2 |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 15,4 W |
| Warranty period | 5 year(s) |
| Brand Name | Ernitec |
| Homepage | http://www.ernitec.com |
| Warranty | 5 years |
