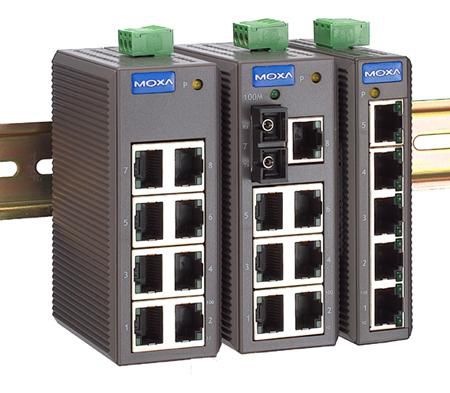

Moxa EtherDevice™ Switch EDS-208
The EDS-208/205 series of industrial Ethernet switches are entry-level industrial 8/5-port Ethernet switches that support IEEE802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. EDS-208/205 series switches are rated to operate at temperatures ranging from -10 to 60°C, and are rugged enough forany harsh industrial environment. EDS-208/205 series switches can be easily installed with DIN-Rail mounting as well as distribution boxes. The DIN-rail mounting ability, wide operating temperature, and the the IP30 case with LED indicators make the plug-and-play EDS-208/205 switches easy to use and reliable. -High Performance Network Switching Technology 10/100BaseT(X) (RJ45) and 100BaseFX (Multi mode, SC/ST connector) Broadcast Storm Protection IEEE 802.3/802.3u/802.3x supports Store and Forward switching process type 10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing -Industrial Rugged Design Operating temperature range from -10 to 60°C Case designed meets IP30
Availability: In stock
The EDS-208/205 series of industrial Ethernet switches are entry-level industrial 8/5-port Ethernet switches that support IEEE802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. EDS-208/205 series switches are rated to operate at temperatures ranging from -10 to 60°C, and are rugged enough forany harsh industrial environment. EDS-208/205 series switches can be easily installed with DIN-Rail mounting as well as distribution boxes. The DIN-rail mounting ability, wide operating temperature, and the the IP30 case with LED indicators make the plug-and-play EDS-208/205 switches easy to use and reliable. -High Performance Network Switching Technology 10/100BaseT(X) (RJ45) and 100BaseFX (Multi mode, SC/ST connector) Broadcast Storm Protection IEEE 802.3/802.3u/802.3x supports Store and Forward switching process type 10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing -Industrial Rugged Design Operating temperature range from -10 to 60°C Case designed meets IP30 protection standard Power inputs support 24 VDC or 24 VAC DIN-Rail mounting ability -Recommeded Accessories DR Series DIN-Rail 24 VDC power supplies
Specifications
| Safety | UL508, UL60950-1 |
| Switch type | Unmanaged |
| Operating temperature (T-T) | -10 - 60 °C |
| Relative humidity | 5 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
| Dimensions (WxDxH) | 40 x 109 x 95 mm |
| Power requirements | 12 - 45 VDC, 18 - 30 VAC (47 - 63 Hz) |
| Mean time between failures (MTBF) | 368000 h |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power over Ethernet (PoE) | No |
| Brand Name | Moxa |
| Warranty | 2 years |
