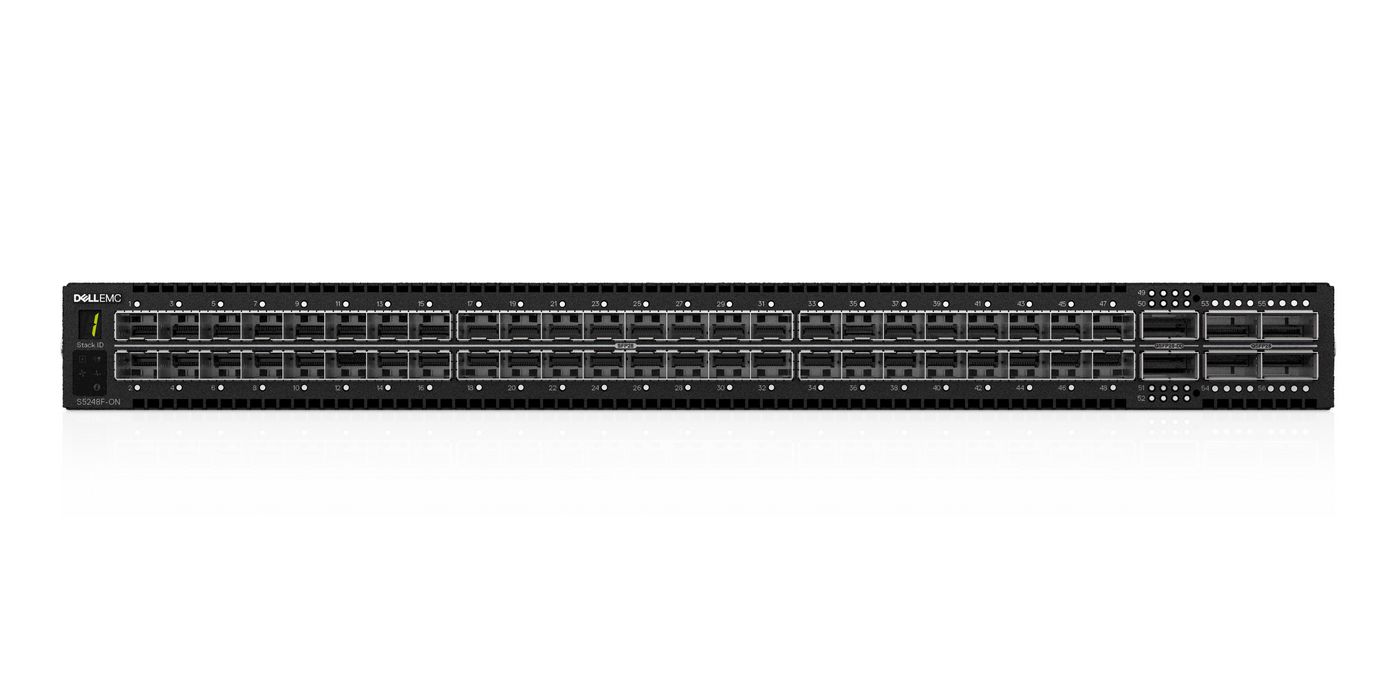

DELL S-Series S5248F-ON Managed L2/L3 1U Black
€5859,94
DELL S-Series S5248F-ON, Managed, L2/L3, 100 Gigabit Ethernet, Rack mounting, 1U
Availability: In stock
Secure payment · Fast delivery
EAN:5397184223130Categories:, , Brand:
DELL S-Series S5248F-ON. Switch type: Managed, Switch layer: L2/L3. Switching optical modules type: 100 Gigabit Ethernet. Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 2000 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s,.... Power connector: AC-in jack. Rack mounting, Form factor: 1U
Specifications
Specifications
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP module slots quantity | 48 |
| Fiber optic connector | QSFP-DD, QSFP28-DD, QSFP28, SFP28 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Address Resolution Protocol (ARP) entries (max) | 128000 |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Switching optical modules type | 100 Gigabit Ethernet |
| Switching capacity | 2000 Gbit/s |
| MAC address table | 16000 entries |
| Packet buffer memory | 32 MB |
| Security algorithms | 802.1x RADIUS, AES, EAP |
| Multicast support | Yes |
| Management protocols | CLI, SNMP, REST, API’s |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Cable management | Yes |
| Display type | LED |
| Backlight display | Yes |
| Number of fans | 4 fan(s) |
| Built-in processor | Yes |
| Internal memory | 16000 MB |
| Compatible operating systems | Debian Linux version 9 |
| List of RFCs | IP, IPv4, IPv6, RIP, OSPF, IS-IS, BGP |
| Minimum system requirements | Linux Kernel 4.9 |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 400 W |
| Power consumption (max) | 602 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 2054 BTU/h |
| Width | 434 mm |
| Depth | 460 mm |
| Height | 44 mm |
| Weight | 9.7 kg |
| Certification | RoHS |
| Harmonized System (HS) code | 85176990 |
