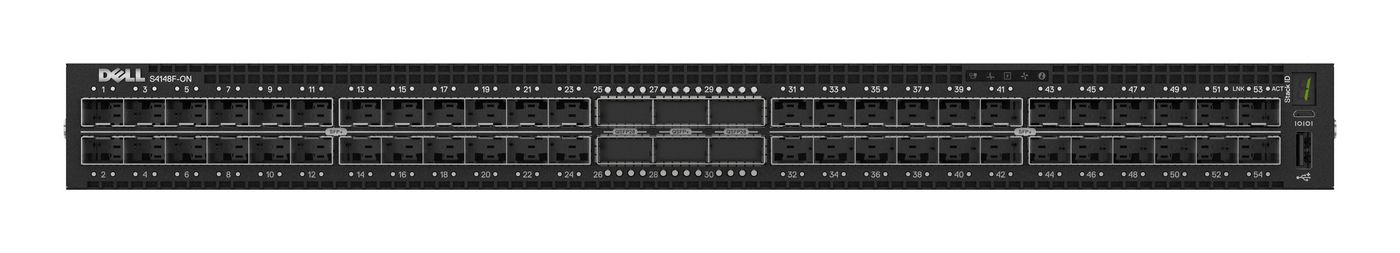

DELL S-Series S4148F-ON Managed L2/L3 1U Black
€3088,33
DELL S-Series S4148F-ON, Managed, L2/L3, Rack mounting, 1U
Availability: In stock
Secure payment · Fast delivery
EAN:5397184219645Categories:, , Brand:
DELL S-Series S4148F-ON. Switch type: Managed, Switch layer: L2/L3. USB 2.0 ports quantity: 1, Console port: RJ-45/Micro-USB. MAC address table: 272000 entries, Switching capacity: 1760 Gbit/s. Networking standards: IEEE 802.3. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Specifications
Specifications
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | IP MIB, IP Forward MIB, Host Resources MIB, IF MIB, LLDP MIB, Entity MIB, LAG MIB, Dell-Vendor MIB, TCP MIB, UDP MIB, SNMPv2 MIB |
| Basic switching RJ-45 Ethernet ports type | No |
| Gigabit Ethernet (copper) ports quantity | 1 |
| SFP+ module slots quantity | 48 |
| QSFP+ module slots quantity | 2 |
| Console port | RJ-45/Micro-USB |
| USB 2.0 ports quantity | 1 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3 |
| 10G support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Switching capacity | 1760 Gbit/s |
| Throughput | 1320 Mpps |
| MAC address table | 272000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9416 |
| Packet buffer memory | 12 MB |
| Multicast support | Yes |
| Management protocols | CLI, SNMP, REST, API’s |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Ventilation system | Front-to-back airflow |
| Built-in processor | Yes |
| Internal memory | 4000 MB |
| Power supply included | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 200 W |
| Power consumption (max) | 370 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 431 mm |
| Depth | 457 mm |
| Height | 44 mm |
| Weight | 9.46 kg |
| Harmonized System (HS) code | 85176990 |
