Aten Ultra Short Depth Single Rail WideScreen LCD Console (USB,VGA), NORDIC

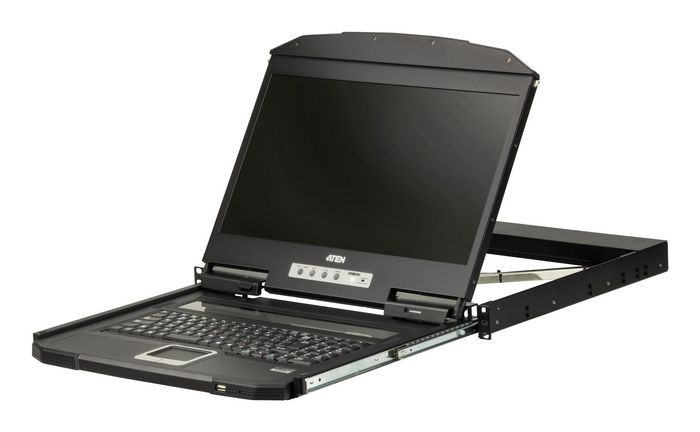

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms. The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers. With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operatio
Availability: In stock
The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms. The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers. With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry. Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
Specifications
| Display switch button | Yes |
| Hot keys | Yes |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 18,5 " |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| I/O ports | 2x 3.5mm Audio Jack |
| Output connections | 1x SPHD |
| Cables included | AC, KVM |
| Manual | Yes |
| Rack mount kit | Yes |
| DDC2B support | Yes |
| Firmware upgradeable | Yes |
| HD type | HD |
| Maximum analog resolution | 1920 x 1200 pixels |
| Maximum resolution | 1366 x 768 pixels |
| Video bandwidth | 60 Hz |
| AC-in ports quantity | 1 |
| Audio connections | Yes |
| Console ports | SPHD, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Number of computers controlled | 1 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Video port type | VGA |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Power source | AC |
| Compliance certificates | RoHS |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | SunOS |
| Windows operating systems supported | Yes |
| Brand Name | Aten |
| Warranty | 2 years |
