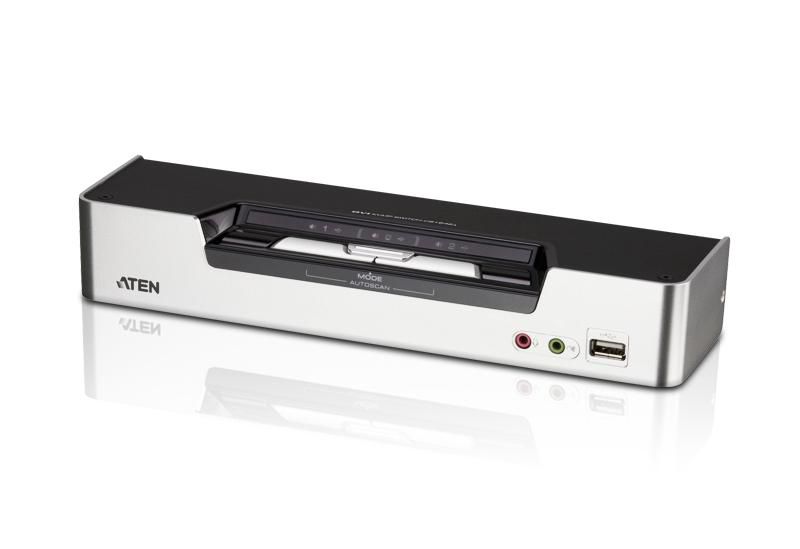

ATEN 2-Port USB DVI Dual-View KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
ATEN 2-Port USB DVI Dual-View KVM Switch with Audio & USB 2.0 Hub (KVM cables included), 2560 x 1600 pixels, Ethernet LAN, Rack mounting, 10.6 W, 1U, Black, Silver
Availability: In stock
ATEN 2-Port USB DVI Dual-View KVM Switch with Audio & USB 2.0 Hub (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2560 x 1600 pixels, Video bandwidth: 60 Hz, Scan interval: 1,99 s. Product colour: Black, Silver, Rack capacity: 1U, Housing material: Metal, Plastic. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 10.6 W. Compliance certificates: RoHS
Specifications
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 6 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum resolution | 2560 x 1600 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,99 s |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black, Silver |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 10.6 W |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 262.3 mm |
| Depth | 76.8 mm |
| Height | 44 mm |
| Weight | 1.72 kg |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 2 kg |
| Cables included | DVI, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Master (outer) case net weight | 8.6 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 10.9 kg |
| Products per master (outer) case | 5 pc(s) |
