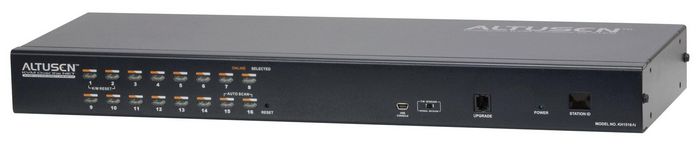

Aten 16-Port CAT5e/6 KVM Over IP Switch
The KH1516Ai Cat 5 High-Density KVM over IP Switch offers 16 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser. The KH1516Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance- up to 50m without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation. In addition to TCP/IP connectivity, the KH1516Ai provides console ports for a locally attached USB or PS/2 console and a Laptop USB console (LUC) – allowing access and control from the data center as well as over the Net. 1x KH1516Ai Cat 5 High-Density KVM over IP Switch 1x Firmware Upgrade Cable 1x LIN6-04U1-M18G Laptop
Availability: In stock
The KH1516Ai Cat 5 High-Density KVM over IP Switch offers 16 computer port configurations in a 1U-high housing for convenient rack mounting. They allow local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser. The KH1516Ai features RJ-45 connectors and Cat 5e/6 cable to link to the computers and supports multiplatform. This ensures that high quality signals can travel over long distance- up to 50m without the need for KVM extenders. Utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation. In addition to TCP/IP connectivity, the KH1516Ai provides console ports for a locally attached USB or PS/2 console and a Laptop USB console (LUC) – allowing access and control from the data center as well as over the Net. 1x KH1516Ai Cat 5 High-Density KVM over IP Switch 1x Firmware Upgrade Cable 1x LIN6-04U1-M18G Laptop USB Console Cable USB-A to Micro USB-B 1x LIN2-481K-E12G Power Cord 1x Rack Mount Kit 1x Foot Pad Set (4 pcs.) 1x User Instructions
Specifications
| Hot keys | Yes |
| Housing material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Push button | Yes |
| Built-in display | No |
| Master (outer) case gross weight | 11570 g |
| Master (outer) case height | 25,8 cm |
| Master (outer) case length | 56,5 cm |
| Master (outer) case net weight | 9420 g |
| Master (outer) case width | 42 cm |
| Products per master (outer) case | 3 pc(s) |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 16 |
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Manual | Yes |
| Quick installation guide | Yes |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1, 255 |
| Video bandwidth | 60 Hz |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Number of computers controlled | 16 |
| PS/2 ports quantity | 2 |
| USB connector type | USB Type-A |
| Video port type | VGA |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 8,9 W |
| Power source | AC |
| Brand Name | Aten |
| Homepage | http://www.aten.com |
| Warranty | 2 years |
