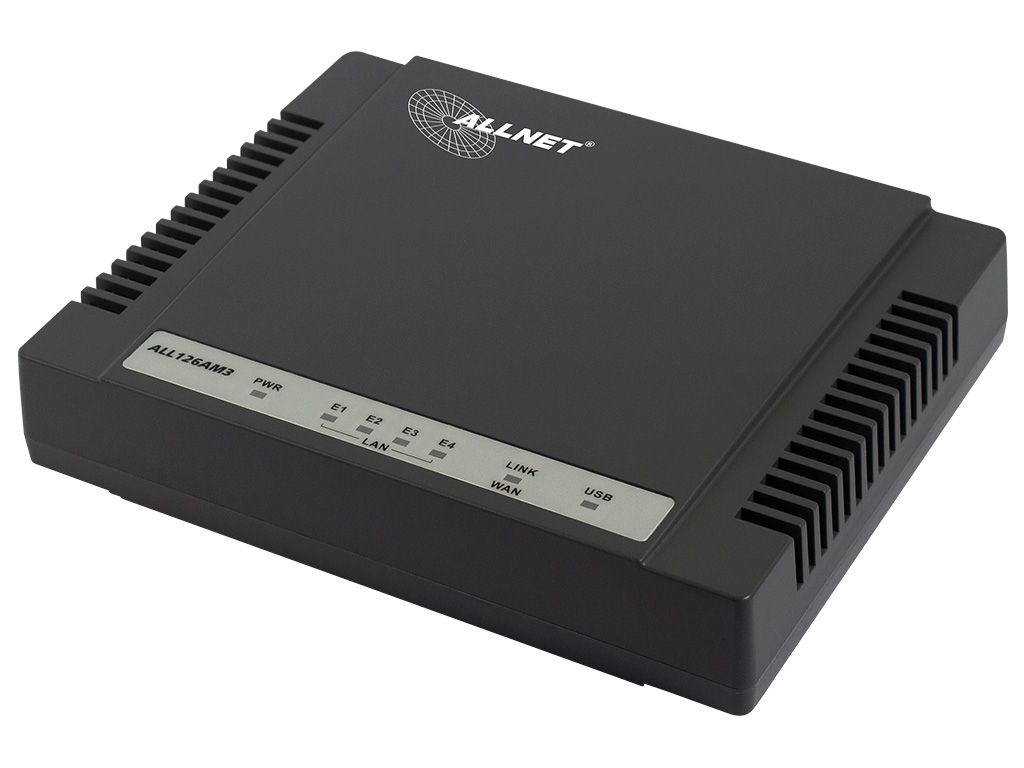

["Using the ALLNET ALL126AM3 VDSL master modem in conjunction with the ALL126AS3 VDSL slave modem, leased lines can be implemented using a simple 2-wire copper cable with a length of up to 2.5 kilometers. Bandwidths of up to 100 Mbit/s are possible for short distances. At the same time, analogue telephones can be connected and operated via the same line. Existing telephone cabling can also be used for high-performance data services. Especially for outdoor buildings / hotels / hospitals, this technology represents the optimal solution for providing high-performance network applications cost-effectively and with minimal effort via 2 twisted pair cables. 4x RJ-45 10/100Mbps auto-negotiation RJ-45 Ethernet port - POTS splitter on board for analog phones - supports web management (HTTP/HTTPS) - supports surge protection for VDSL input - supports dual firmware image backup Temperature operation: 0°C ~ 50°C (32°F ~ 122°F) Temperature storage: -20°C ~ 70°C (-4°F ~ 150°F) - ALL126AM3 VDSL Master Modem - Plug-in power supply 12V 1A - 1 patch cable LAN - 1 patch cable telephone (Western plug)", "VDSL CO master modem according to VDSL2 standard for high data throughput", "Integrated 4-port Ethernet 10/100Mbps switch", "Two RJ11 sockets for telephone/line connection", "Integrated DSL splitter and surge protection", "A variety of VDSL bandwidth profiles can be configured", "Configuration via web browser (HTTP/HTTPS)", "Energy saving, low power consumption (only approx. 5.5W)", "VDSL technology from Metanoia up to 100Mbps/symm", "Can be used for pure point-to-point connections in conjunction with a slave CPE modem, e.g. ALL126AS3", "Network connection via twisted pair telephone cables", "Parallel telephony connection possible for analogue telephones on the same line"]
