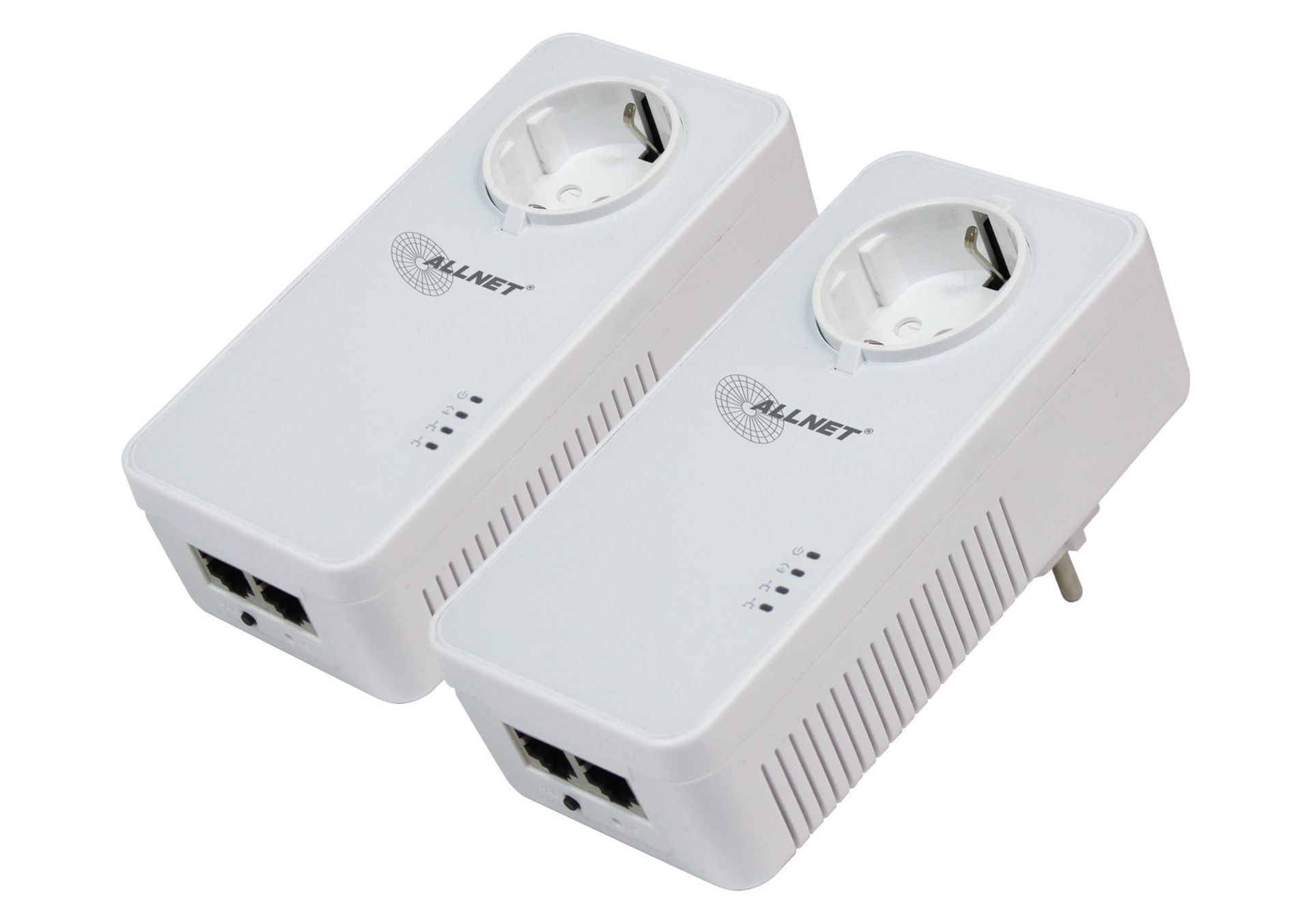

ALLNET Powerline 1200Mbit 2er Bundle Bridge RJ45 HomePlugV2 "SmartLink" Passtrough ALL1681205v2
With the ALL1681205v2 adapter, the second ALLNET powerline adapter generation according to the HomePlug AV2 standard with Smartlink 1200 Mbps and MIMO support comes onto the market. The ALLNET ALL1681205v uses the latest Qualcomm Atheros QCA7500 / QCA8334 chipset. It has two Gigabit Ethernet RJ45 in
Availability: In stock
["With the ALL1681205v2 adapter, the second ALLNET powerline adapter generation according to the HomePlug AV2 standard with Smartlink 1200 Mbps and MIMO support comes onto the market. The ALLNET ALL1681205v uses the latest Qualcomm Atheros QCA7500 / QCA8334 chipset. It has two Gigabit Ethernet RJ45 interfaces and is compatible with the powerline standards IEEE1901/Homeplug AV and GreenPHY. This enables easy use with existing Powerline devices from other manufacturers. The solution is compliant with IEEE1901, Homeplug AV and Homeplug AV2, enabling easy compatibility with existing Homeplug AV2 devices and other providers of IEEE1901 PLC (Powerline Line Communication) devices. High data rates and Quality of Service (QoS) enable the use of HD multimedia applications and help you realize high-speed digital multimedia home networks throughout the home, including IPTV services, simultaneous HD video and audio distribution, voice over IP calls, online gaming, high speed Internet. The ALL1681205v2 offers simple plug & play networking via a push button, without the need for software configuration. The Network Management Key (NMK) with its 128-bit AES hardware encryption ensures secure, authenticated access to the logical network and protects the network from hackers. The new HomePlug AV2 standard enables highly efficient data transmission on the power cable with technologies such as Efficient Notching. 2* LAN 10/100/1000Base-TX applied for RJ45 interface PWR(power light) PLC(PLC signal light) ETH(Ethernet light) IEEE 802.3 IEEE 802.3u 10/100Ethernet Standard working humidity 10%-90% non-condensed state", "New HomePlug AV2 standard", "Up to 1200 Mbps Powerline data transfer rate via Powerline", "Compatible with other HomePlug AV technologies", "MIMO support", "2 Gigabit Ethernet ports", "Secure communication and protection of your data at the touch of a button", "Easy installation", "Notch filter (26.96 - 27.41 MHz) amateur radio protection"]
Specifications
| Item | ALL1681205v2 |
| Interface | 2* LAN 10/100/1000Base-TX applied for RJ45 interface |
| LED display lights | PWR(power light) PLC(PLC signal light) ETH(Ethernet light) |
| Transmission band | 2-68MHz |
| protocol | HomePlug AV2 IEEE 802.3 IEEE 802.3u 10/100Ethernet Standard |
| security | 128-AES |
| Transfer rate(PHY) | 1200Mbps |
| modulation | OFDM |
| plug | EU Type-F |
| Support operating system | Windows 98/ME/NT/2003/7 Windows XP Home/Pro Mac OSX Linux |
| Power source | AC 100V-240V 120/50Hz |
| Operating environment | working temperature:0°C ~ +70°C working humidity 10%-90% non-condensed state |
| size | 145mm×70mm×43mm L×W×H |
| weight | 0.30kg |
| marks | CE ROHS |
