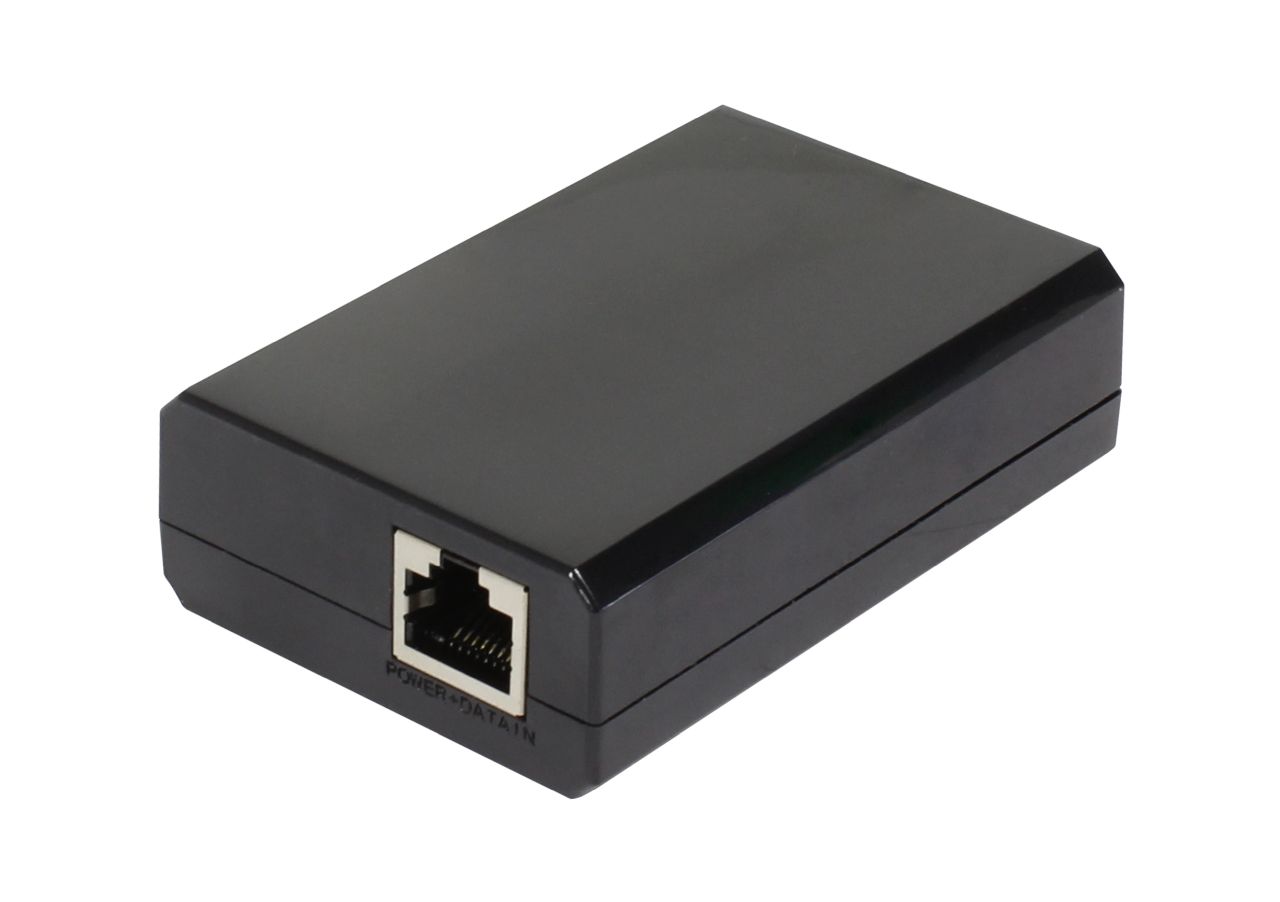

ALLNET PoE Splitter-Mini/Extractor / Gigabit / 60W / USB-C PD / ALL-PS103G-BT60-PD
The ALL-PS103G-BT60-PD splits the data and power from PoE to Type-C devices. It supports PoE applications in Gigabit Ethernet environments. The ALL-PS103G-BT60-PD is compliant with the IEEE802.3af/at/bt power classification. Wide input voltage range, 36Vdc to 57Vdc. The maximum output power can reac
Availability: In stock
["The ALL-PS103G-BT60-PD splits the data and power from PoE to Type-C devices. It supports PoE applications in Gigabit Ethernet environments. The ALL-PS103G-BT60-PD is compliant with the IEEE802.3af/at/bt power classification. Wide input voltage range, 36Vdc to 57Vdc. The maximum output power can reach 50W, and the output voltage is between 5V and 20V, depending on the needs of your Type-C PD terminal devices, such as computer, IPad, Macbook, Google Wifi, etc. DC5V/3.4A, 9VDC/3A, 12VDC/3A, 15V3A, 20V2.5A IEEE802.3af 15W PoE Type 1 Class 3 IEEE802.3at 30W PoE Type 2 Class 4 IEEE802.3bt 60W PoE Type 3 Class 6", "Charges devices with a USB-C power input such as notebooks, Macbook Pro®, tablets, smartphones from an IEEE 802.3bt/at/af PoE connection", "Provides a Gigabit Ethernet socket for an RJ45 network-capable end device", "PoE power budget of 45W max. at 60W input power via IEEE 802.3bt connection from the upstream PoE BT switch or injector", "Output DC5V/4A,9VDC/3A, 12VDC/3A, 15V3A, 20V2.5A", "Thermal shutdown", "Surge protection (OVP)", "Overcurrent protection (OCP)", "Short Circuit Protection (SCP)"]
Specifications
| Item | Description |
| Ports | 1x 10/100/1000M RJ45 PoE Port (DATA + POWER IN) 1x 10/100/1000M RJ45 LAN Port (Only DATA) 1x Type-C USB (DC OUT) |
| Network Media | 10Mbps: Cat 3,4,5 Unshielded Cable 100Mbps: Cat 5,5E Unshielded Cable 1000Mbps: Cat 5E, 6 Unshielded Cable |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Power Output | DC5V/3.4A, 9VDC/3A, 12VDC/3A, 15V3A, 20V2.5A |
| Input Power Requirements | IEEE802.3af 15W PoE Type 1 Class 3 IEEE802.3at 30W PoE Type 2 Class 4 IEEE802.3bt 60W PoE Type 3 Class 6 |
| Indicators | PoE ready / in-use |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Dimensions | 80x54x24mm |
| Environmental Conditions | Operating Ambient Temperature:0 to 40? Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-20 to 70? Storage Humidity: Maximum 95%, Non-condensing |
| Regulatory Compliance | IEEE 803.3bt (60W PoE) IEEE 802.3at (30W PoE) IEEE 802.3af (15W PoE) IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) RoHS Compliant, CE, FCC |
