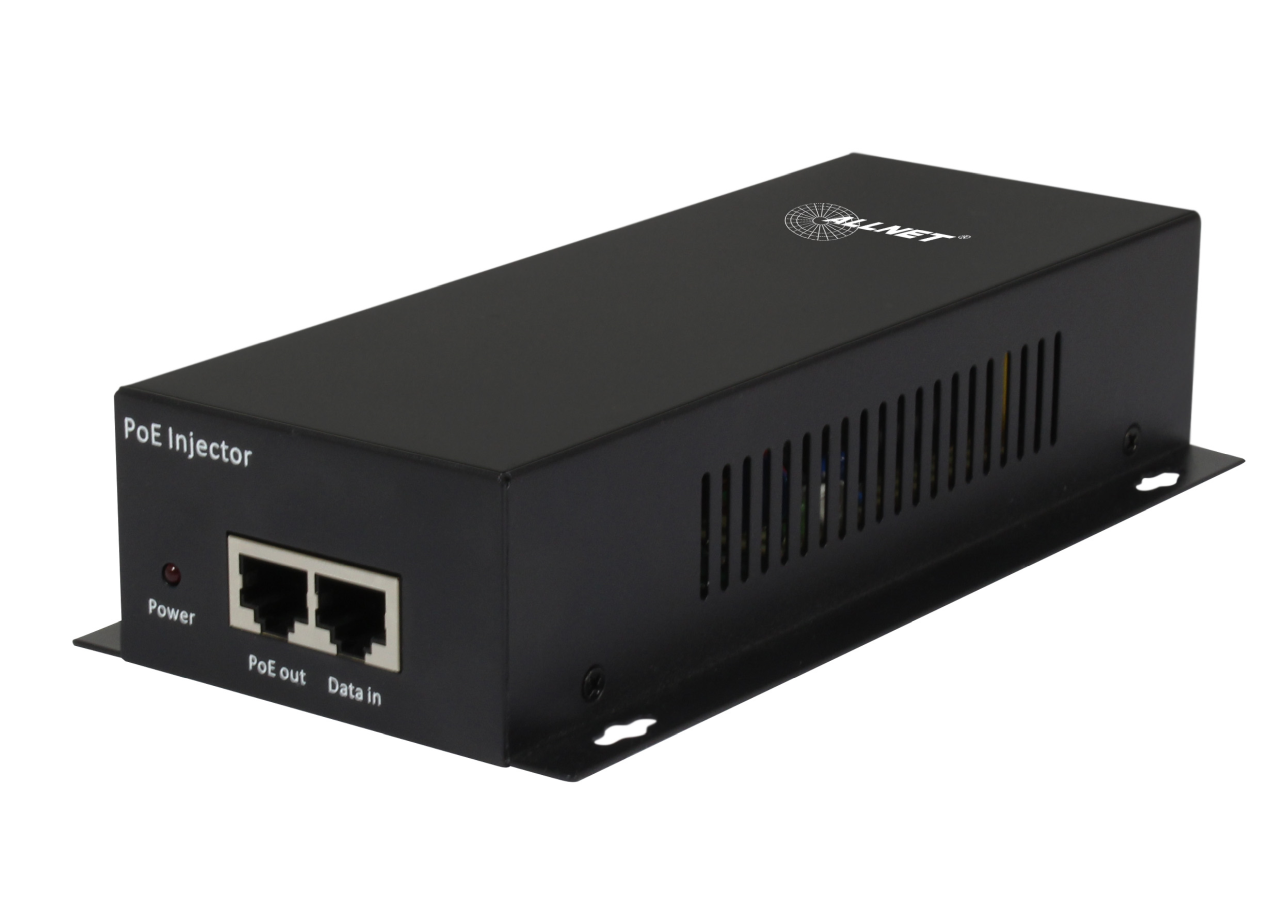

ALLNET PoE Injector MultiGigabit • PoE bt 90W • 1G/2.5G/5G/10G PoE & PoE bt (15.4W/30W/60W/90W) • Metal housing • Wall mounting • ALL-PI103MG-BT90-10G
The ALLNET PoE Injector ALL-PI103MG-BT90-10G is a powerful Multigigabit PoE Injector that provides up to 90W output power per PoE port. The port supports automatic adaptation to different speeds (1G / 2.5G / 5G / 10G), which makes it flexible to different network environments. The voltage range
Availability: In stock
["The ALLNET PoE Injector ALL-PI103MG-BT90-10G is a powerful Multigigabit PoE Injector that provides up to 90W Ausgangsleistung per PoE Port. The port supports automatic adaptation to different speeds (1G / 2.5G / 5G / 10G), which makes it flexible to different network environments. The voltage range for the entrance lies between 100 and 240V AC, while the operating temperature range ranges from -20°C to +50°C. Dank eines robusten Industrie-Chip-Design ist der PoE-Injektor besonders widenstandsfähig und mit ESD-Überspannungsschutz ausgestattt. Is erfüllt sämtliche relevanten Standards wie FCC, CE und RoHS, was für hohe Rezälvätigung und Sicherheit sorgt. The well-thought-out hardware design guarantees stable, uninterrupted operation, ideal for automation systems. Die Montage des compacten Gehäuse ist sowohl an Wänden als auch auf Taschen möglich. Typical application areas include PTZ cameras, compact computers, all-in-one devices, digital signage displays and other network-based systems that require high performance and reliability. Surveillance systems This product is frequently used in the area of network camera monitoring, as it can provide both the data connection and the power supply for network cameras. WLAN networks The product finds broad application in WLAN network projects, such as in parks or larger open spaces. The PoE-Injector can provide wireless access points (APs) both power and stable data connection", "Support 1*Multigigabit 10G PoE port (1G/2.5G/5G/10G) + 1*10G (1G/2.5G/5G/10G LAN) RJ45 port", "Support IEEE802.3af (15.4w), IEEE802.3at (30w) and IEEE802.3bt (90w)", "Support power supply 100-240VAC", "Metal housing, IP20 protection rating, -20 ~ 50°C working temperature", "Support port surge protection: Differential mode 2KV, common mode 6KV; ESD: Contact 6KV, air 8KV"]
Specifications
| Einsatzbereich Display | Indoor |
| Housing | Metall |
| Speed injector | 1G (1000Mbit/s) , 2.5G (2500Mbit/s) , 5G (5000Mbit/s) , 10G (10000Mbit/s) , 10M (10Mbit/s) , 100M (100Mbit/s) |
| PoE performance | 15 , 30 , 45 , 60 , 90 , Watt |
| PoE Standard | IEEE802.3af , IEEE802.3bt , IEEE8023at |
| Product Name | ALL-PI103MG-BT90-10G |
| Port | 1*10G PoE Port + 1*10G RJ45 Port MultiGigabit: 1G/2.5G/5G/10G |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at/ IEEE802.3bt |
| Network Medium | 100Base-TX: Cat5 or above UTP(=100m) 1000Base-TX: Cat5 or above UTP(=100m) 10000 Base-TX: Cat6 or above UTP(=100m) |
| Indicator (PWR) | On: Powered On Off: Powered Off |
| Power | Input Voltage: AC 100-240V Working Frequency: 50/60 Hz Supply Power: 52V1.73A/90W |
| Working Environment | Working Temperature: -20~50°C Storage Temperature: -40~85°C Humidity: 5%~95 % (non-condensing) |
| Industry Standard | EN61000-4-2 (ESD) IEN61000-4-5 (Surge) EN61000-4-3 (RS) EN61000-4-6 (CS) EN61000-4-4 (EFT) |
| Physical Structure | Protection Grade: IP20 Install: Wall Mounting Product N.W: 0.486KG Product G.W: 0.712KG Product Size (L*W*H): 187* 95*40 mm Package Size (L*W*H): 245*190*60mm |
| Package List | 10G 90W PoE Injector: 1pcs User Manual: 1pcs Certificate, Warranty Card:1pcs |
| Support port surge protection | Differential mode 2KV, common mode 6KV; ESD: Contact 6KV, air 8KV. |
| 10G 90W PoE Injector | 1pcs |
| User Manual | 1pcs |
| Certificate, Warranty Card | 1pcs |
