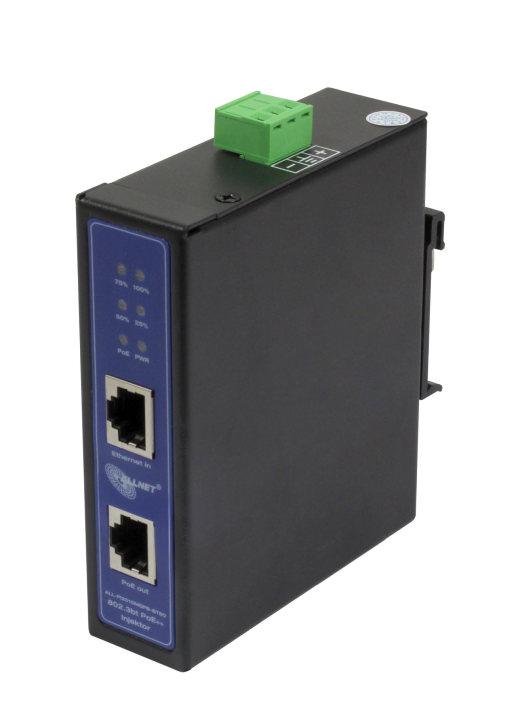

["The ALLNET ALL-PI2015MGPB-BT90 is an industrial single-port 802.3bt PoE++ injector that delivers a maximum output power of up to 90 watts over Ethernet cable. It has two 10M/100M/1G/2.5G/5G/10GBase-T RJ45 copper interfaces, which enable the transmission of large amounts of data. The ALL-PI2015MGPB-BT90 supports the IEEE 802.3bt standard and delivers power over all four pairs of a standard Cat cable, unlike traditional 2-pair twisted pair UTP cables. This can be done in either end-span (pins 1, 2, 3 and 6) or mid-span (pins 4, 5, 7 and 8) and allows for a power supply of up to 90 watts. The injector is backwards compatible with the PoE standards 802.3af/at, allowing the flexible use of standard and high-performance devices. This means that both data and power can be transmitted over distances of up to 100 meters via an Ethernet cable. An integrated power booster or step-up converter offers a flexible power input from 12VDC to 57VDC and can provide 48~55VDC at the PoE output. This means that the injector can also be used in special cases where only 12VDC or 24VDC is available. The ALL-PI2015MGPB-BT90 simplifies the installation of security IP cameras and wireless access points by eliminating the need for power outlets and additional AC wiring. This reduces the number of cables required, eliminates the need for sockets in hard-to-reach locations and significantly reduces installation time", "Supports 1x10M/100M/1G/2.5G/5G/10GBase-T Ethernet data input RJ45 port +1xDC 12-57V input power port+1x10M/100M/1G/2.5G/5G/10GBase-T PoE PSE output RJ45 port", "Meets the IEEE 802.3af/at/bt PoE/PoE+/PoE++ PSE standard", "Supports PoE power up to 90 watts for PoE++ port", "Automatic detection of IEEE 802.3af/at/bt PoE/PoE+/PoE++ End-Span/Mid-Span compliant PD devices, which can protect devices from damage caused by incorrect installation", "LED indicators monitor the status of all PoE usage in real time", "Remote power supply up to 100m", "Supports 12~57VDC power input with built-in power booster", "IP30 slim metal housing", "Sturdy design for DIN rail or wall mounting", "Supports 6KV surge and ESD protection", "-40 to +80°C operating temperature"]
