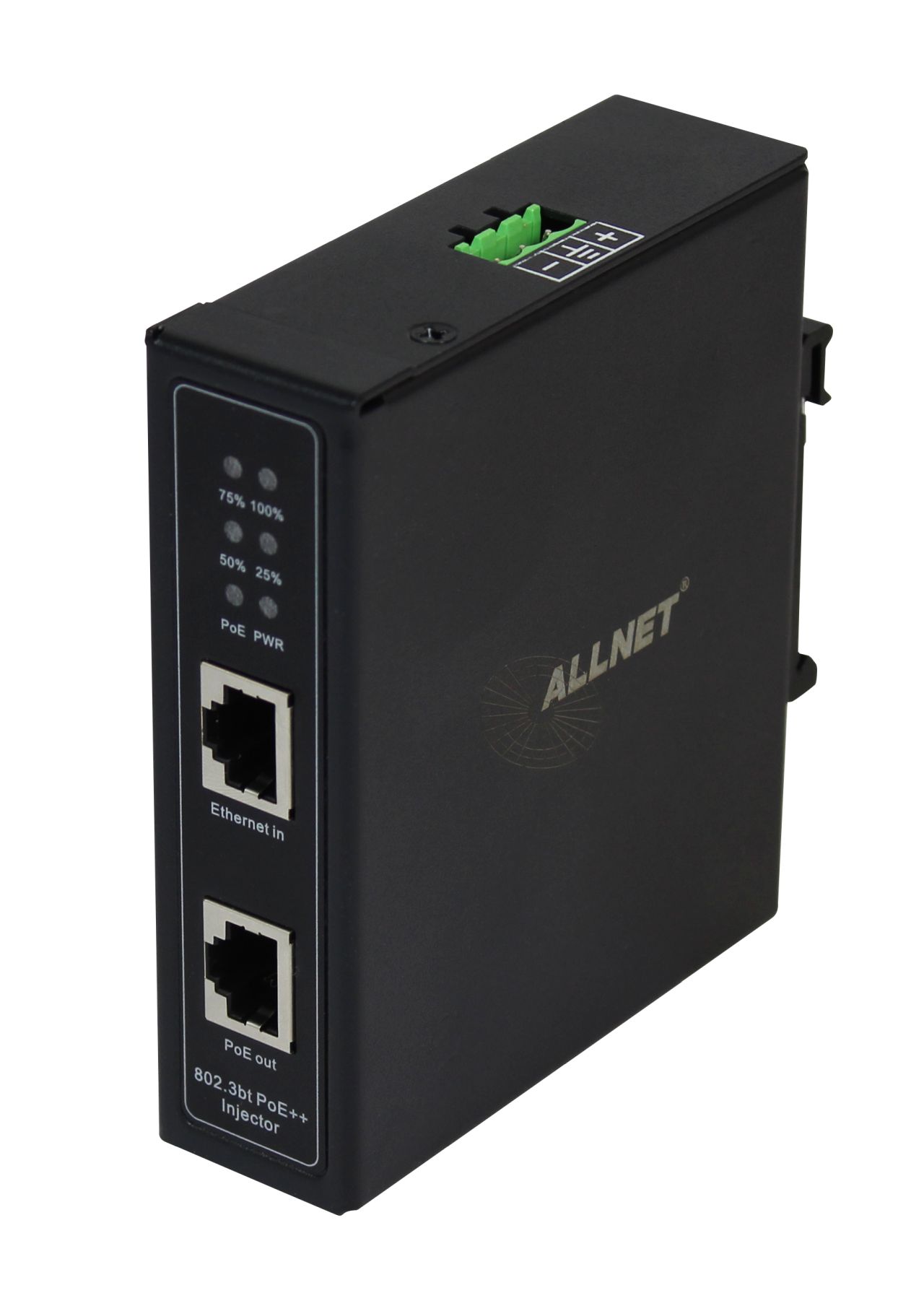

ALLNET PoE Injector Industrial Gigabit / PoE BT (15.4W/30W/90W) / DIN / metal housing / "ALL-PI2014-I-BT90"
Ensure the reliable power supply of your PoE devices with the ALLNET PoE injector Industrial Gigabit, model "ALL-PI2014-I-BT90". This high-quality PoE injector offers a variety of features that optimize your network infrastructure. Here are some of the highlights: Data and power via one cable: The i
Availability: In stock
["Ensure the reliable power supply of your PoE devices with the ALLNET PoE injector Industrial Gigabit, model \"ALL-PI2014-I-BT90\". This high-quality PoE injector offers a variety of features that optimize your network infrastructure. Here are some of the highlights: Data and power via one cable: The injector has an RJ45 Ethernet data input and an RJ45 Power over Ethernet output. This allows you to transfer data and power over a single Ethernet cable, simplifying cabling. Powerful PoE: With support for 90W LTPoE++ (Low-Temperature Power over Ethernet), this injector is able to supply even high-performance PoE devices with sufficient power. Versatile mounting options: The injector can be mounted on both DIN rails and wall, making installation flexible. Optional external power supplies: For additional flexibility, the injector offers a 48~57VDC terminal block for optional external power supplies. However, please note that an external power supply must be purchased separately. Gigabit Speed: The injector supports 10/100/1000Base-TX, meaning it can be used on both Gigabit and standard Ethernet networks. PoE+ compatible: It is IEEE802.3at PoE+ compatible, which allows powering PoE+ devices. Clear diagnostics: The extensive LED displays provide a quick and easy way to monitor the status of the PoE power supply and perform diagnostics. Robust design: With an operating temperature of -40°C to +75°C, this PoE injector is suitable for use in demanding environments. The ALLNET PoE Injector Industrial Gigabit / PoE BT (model \"ALL-PI2014-I-BT90\") is the ideal solution for reliably supplying your PoE devices with power and keeping your network running smoothly and efficiently", "1 RJ45 Ethernet data input + 1 RJ45 Power over Ethernet output (Data + Power)", "90W LTPoE++ Power Sourcing Equipment Support", "DIN rail and wall mounting brackets", "48~57VDC terminal block for optional external power supplies (ATTENTION: POWER SUPPLY IS STILL REQUIRED)", "Supports 10/100/1000Base-TX", "IEEE802.3at PoE+ compatible", "Extensive LED displays for PoE diagnostics", "-40°C to +75°C operating temperature", "Data and power via one cable: The injector has an RJ45 Ethernet data input and an RJ45 Power over Ethernet output. This allows you to transfer data and power over a single Ethernet cable, simplifying cabling", "Powerful PoE: With support for 90W LTPoE++ (Low-Temperature Power over Ethernet), this injector is able to supply even high-performance PoE devices with sufficient power", "Versatile mounting options: The injector can be mounted on both DIN rails and wall, making installation flexible", "Optional external power supplies: For additional flexibility, the injector offers a 48~57VDC terminal block for optional external power supplies. However, please note that an external power supply must be purchased separately", "Gigabit Speed: The injector supports 10/100/1000Base-TX, meaning it can be used on both Gigabit and standard Ethernet networks", "PoE+ compatible: It is IEEE802.3at PoE+ compatible, which allows powering PoE+ devices", "Clear diagnostics: The extensive LED displays provide a quick and easy way to monitor the status of the PoE power supply and perform diagnostics", "Robust design: With an operating temperature of -40°C to +75°C, this PoE injector is suitable for use in demanding environments"]
Specifications
| Einsatzbereich Display | Industrie |
| Housing | Metall |
| Speed injector | 1G (1000Mbit/s) , 10M (10Mbit/s) , 100M (100Mbit/s) |
| PoE performance | 15 , 30 , 60 , 90 , Watt |
| PoE Standard | IEEE802.3af , IEEE802.3bt , IEEE8023at |
| Model | ALL-PI2014-I-BT90 |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt 4-pair Power over Ethernet Plus Plus |
| Fixed Port | Ethernet in:1x10/100/1000Base-TX RJ45 PoE out:1x10/100/1000Base-TX PoE++ PSE RJ45 |
| Network Medium | 10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 UTP or better(≤100 meters) 1000BASE-TX: Cat5e,6 UTP or better(≤100 meters) |
| PoE Description | PoE Standard:IEEE802.3af/at/bt PSE PoE Pin Assignment:1/2/4/5+,3/6/7/8-(4-Pair) PoE Distance:Max 100m(Cat5e/Cat6) PoE Power Output:Max 90W(DC52-57V,1.73A) |
| Mechanical | Case: IP30 Slim type metal case Cooling way: Natural cooling,fanless design Dimension: 110x98x31mm(LxWxH) Weight: 0.35Kg Installation:DIN-Rail / Wall-mount |
| Protection | 6KV 8/20u lighting protection 6KV ESD protection under-voltage,over-voltage,over-current and short circuit protection |
| Environmental | Working Temperature: -40°C to +80°C Storage Temperature:-40°C to +85°C Working Humidity: 10%~90% (non-condensing) Storage Humidity: 5% ~ 90%(non-condensing) |
| MTBF | 100,000 hours |
| Data and power via one cable | The injector has an RJ45 Ethernet data input and an RJ45 Power over Ethernet output. This allows you to transfer data and power over a single Ethernet cable, simplifying cabling. |
| Leistungsstarkes PoE | With support for 90W LTPoE++ (Low-Temperature Power over Ethernet), this injector is able to supply even power-intensive PoE devices with sufficient power. |
| Versatile mounting options | Der Injektor kann sowohl auf DIN-Schienen als auch an der Wand montiert werden, was die Installation flexibel gestaltet. |
| Optionale externe Netzteile | For additional flexibility, the injector offers a 48~57VDC terminal block for optional external power supplies. However, please note that an external power supply must be purchased separately. |
| Gigabit speed | The injector supports 10/100/1000Base-TX, meaning it can be used on both Gigabit and standard Ethernet networks. |
| PoE+ kompatibel | It is IEEE802.3at PoE+ compatible, which allows powering PoE+ devices. |
| Clear diagnosis | The extensive LED displays provide a quick and easy way to monitor the status of the PoE power supply and perform diagnostics. |
| Robustes Design | With an operating temperature of -40°C to +75°C, this PoE injector is suitable for use in demanding environments. |
