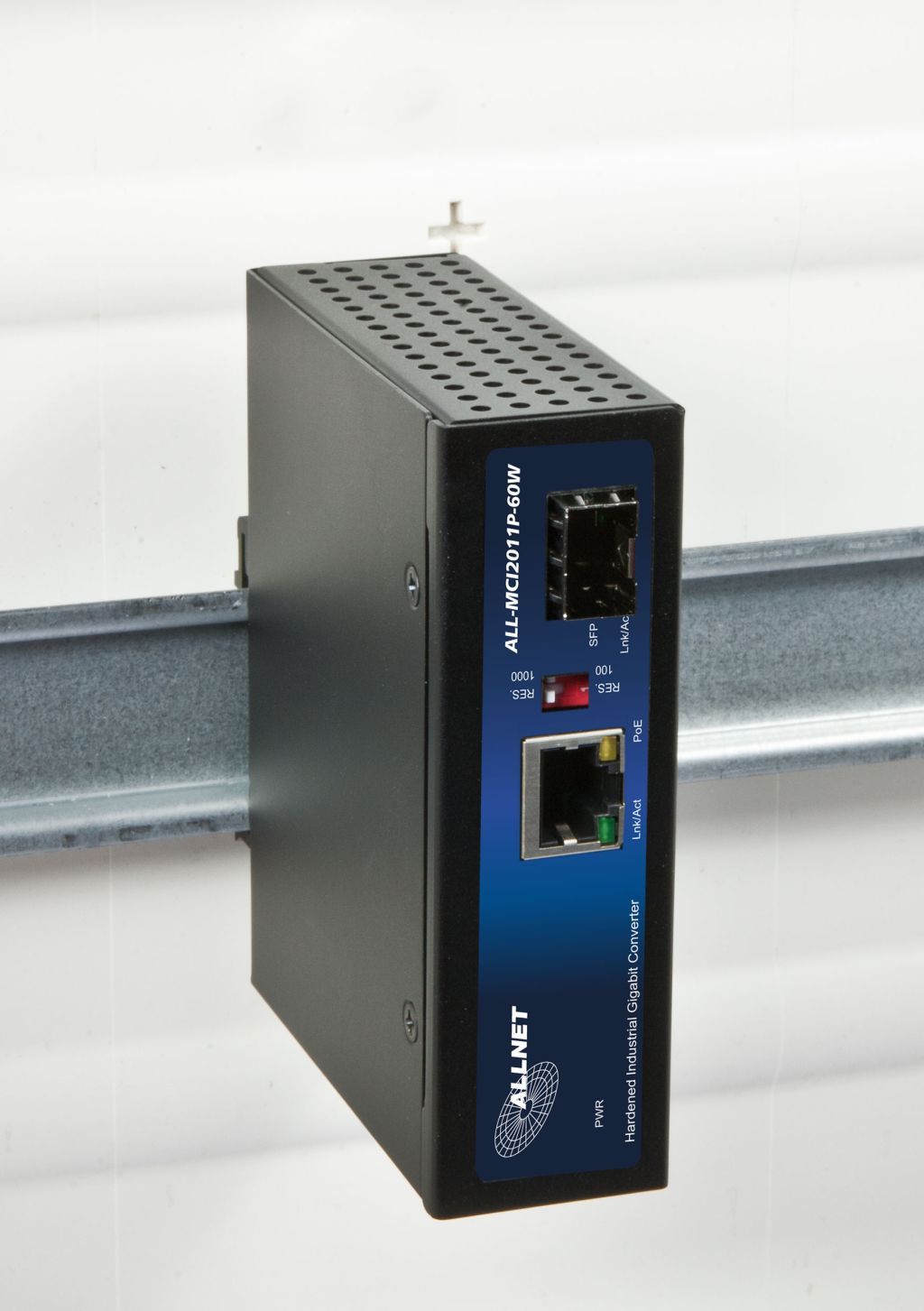

ALLNET media converter Industrial PoE (15.4W/30W/60W) to 1000BASE-SX/-LX single/multimode SFP Mini-GBIC connection / DIN / "ALL-MCI2011P-60W"
The robust 60W Industrial PoE converter with Marvell IC supplies your PD devices with up to 60W PoE power. Extreme temperatures and unfavorable environmental conditions are also no problem. Our ColdDesign technology supplies your PD devices with power and reduces excessive heat development to a mini
Availability: In stock
["The robust 60W Industrial PoE converter with Marvell IC supplies your PD devices with up to 60W PoE power. Extreme temperatures and unfavorable environmental conditions are also no problem. Our ColdDesign technology supplies your PD devices with power and reduces excessive heat development to a minimum. To meet the voltage requirements of the IEEE802.3af/at PoE standard, an input voltage between 48V and 56V DC is required. Thorough testing ensures the functionality of your security, transport and telephony applications, providing you with a reliable partner. IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control Back Pressure IEEE802.af for PoE IEEE802.3at for PoE+ 1x 100/1000BaseT (RJ-45) 1x 1000BaseSX/LX SFP module slot TP:10/100/1000BaseT Cat. 5, 5E, 6 UTP/STP, up to 100 m 1000BaseSX: 62.5/125μm Multi Mode LWL, up to 220 m 50/125μm Multi Mode LWL, up to 550 m 1000BaseLX: 9/125μm Single Mode LWL 4pin Terminal Block with 48V-56V VDC Power input with PoE 12~56VDC without PoE SW (Relay): Relay switch for alarm Temperature operation: -40° ~ +75° °C Humidity operation: 5% ~ 95% (non-condensing) Temperature storage: -40 ~ 85 °C Humidity storage: 5% ~ 95% (non-condensing) CE, FCC, VCCI EN55022 Class A EN55022/24 ITE Equipment EN55011 Industrial, Scientific and Medical (ISM) equipment IEC EN60950-1 Safety", "Robust 60W Gigabit PoE converter", "Marvell IC hardware design", "1x 10/100/1000M 60W PSE (equivalent to 802.3af/at) TX + 100/1000M SFP", "48-56V DC redundant power supply", "Extended operating temperature: -40°C to +75°C"]
Specifications
| Features | Industrial , PoE |
| Fiber connection | SFP |
| speed | 1G |
| Element | Spezifization |
| Standards | IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control Back Pressure IEEE802.af for PoE IEEE802.3at for PoE+ |
| Network connections | 1x 100/1000BaseT (RJ-45) 1x 1000BaseSX/LX SFP Module Slot |
| Data transfer rate | Half/Full-Duplex on TP |
| PoE | IEEE802.3at/af kompatibel |
| Jumbo Frame | 9KB |
| Packet Buffer Size | 1M |
| MAC adress Table Size | 2K |
| DIP Switch | Speed adjustable from SFP 100M or 1000M |
| Reverse polarity protection | vorhanden |
| Overload current protection | vorhanden |
| transmission media | TP:10/100/1000BaseT Cat. 5, 5E, 6 UTP/STP, bis zu 100 m 1000BaseSX: 62.5/125μm Multi Mode LWL, bis zu 220 m 50/125μm Multi Mode LWL, bis zu 550 m 1000BaseLX: 9/125μm Single Mode LWL |
| Led Anzeige | PWR, SYS, Link/ACT, PoE |
| Power supply | 4pin Terminal Block mit 48V-56V VDC Power Eingang mit PoE 12~56VDC ohne PoE SW (Relay): Relay switch for alarm |
| Stromverbrauch | 2W@48VDC ohne PoE |
| PoE Power | Maximum PoE Power 72W bei 56VDC Input |
| Mass | 103,5 × 32 × 81 mm |
| Installation option | DIN HUT-Schiene oder Wandmontage |
| Housing | Metall, IP30 Schutzart |
| MTBF ( mean time between failure) | 510304 Std. (MIL-HDBK-217F) bei 25°C |
| Vicinity | Operating temperature: -40° ~ +75° °C Operating humidity: 5% ~ 95% (non-condensing) Storage temperature: -40 ~ 85°C Storage humidity: 5% ~ 95% (non-condensing) |
| Kennzeichnungen | CE, FCC, VCCI EN55022 Class A EN55022/24 ITE Equipment EN55011 Industrial, Scientific and Medical (ISM) equipment IEC EN60950-1 Safety |
| Shock | EN50155 / EN 60068-2-27 |
| Free Fall | EN5055 / EN 60068-2-32 |
| Vibration | EN 50155 / IEC 60068-2-6 |
| EMI | FCC Part 15 Supbart B Class A CE EN 55022 Class A |
| Erweiterte Betriebstemperatur | -40°C bis +75°C |
