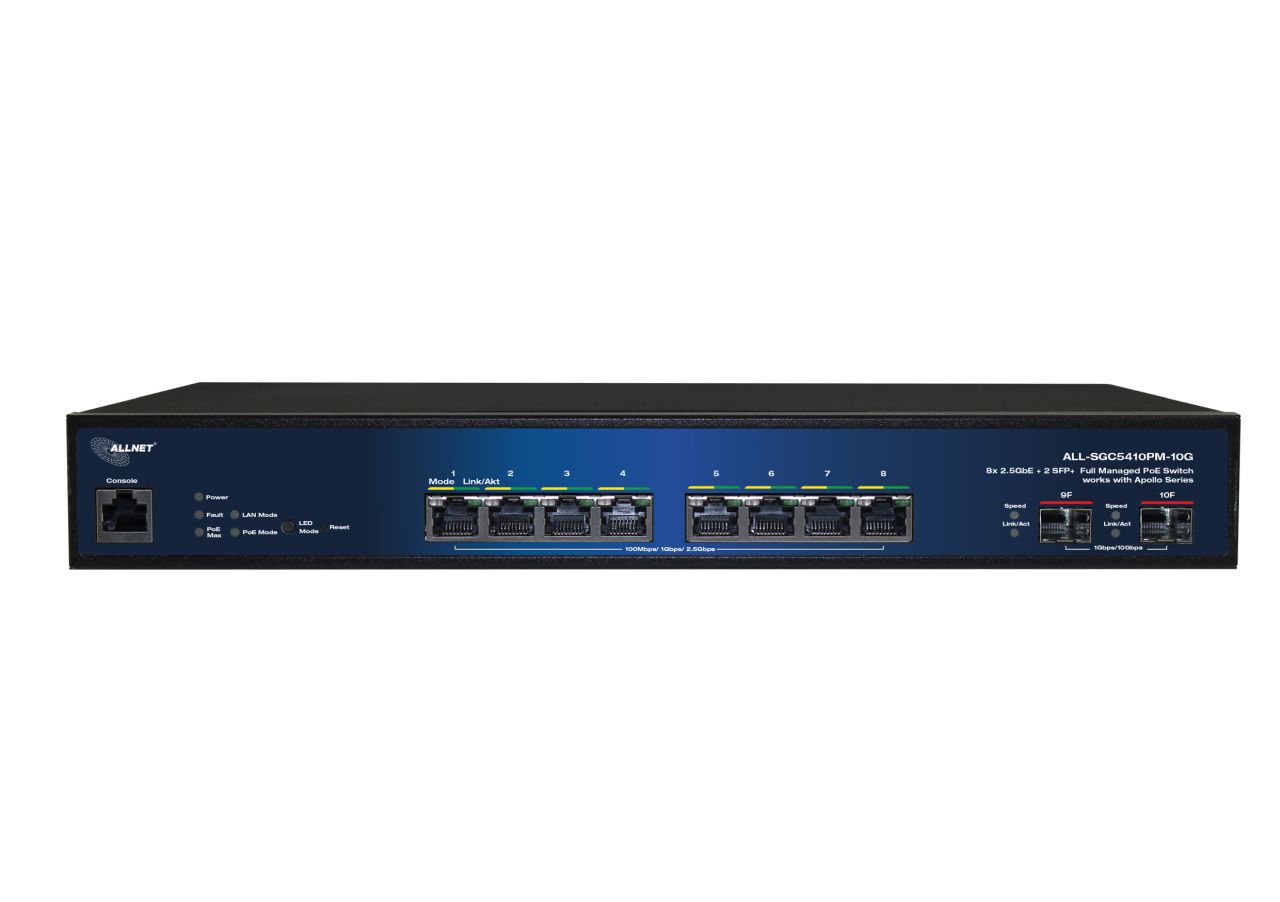

ALLNET Apollo full managed Layer2+ 10Port • 8x 2.5GB • PoE Budget 240W • 8x PoE at • 2x SFP+ • Apollo • ALL-SGC5410PM-10G
There are more and more applications that require a faster Ethernet switch. ALLNET Apollos MultiG Switches support faster Wi-Fi 6/6E/7 APs, accelerate large file uploads and downloads, make video conferencing smoother and prevent jitter
Availability: In stock
["There are more and more applications that require a faster Ethernet switch. ALLNET Apollos MultiG Switches support faster Wi-Fi 6/6E/7 APs, accelerate large file uploads and downloads, make video conferencing smoother and prevent jitter", "8x 2.5GbE PoE ports", "2x SFP+ 10G ports for uplink", "Support PoE IEEE802.3af/at with max. 30W per port", "PoE budget 240W", "Supports jumbo frames", "Support IGMP snooping v1/v2/v3", "Support link aggregation", "Support loop protection", "Support Spanning Tree Protocoll (STP) and Rapid Spanning Tree (RSTP)", "Works as a standalone switch or with Apollo Controller (see ALL-AC100)"]
Specifications
| Anzahl Ports PoE/LAN | 8/0 |
| Ventilation switch | With fan |
| Einsatzort Switch | 19" |
| LAN speed | 1Gbit/s , 2,5GBit/s , 100 Mbit/s |
| Management | Apollo Series (Apollo Controller) , full managed |
| PoE port performance | 30W at |
| SFP speed | SFP+ 10GBit |
| SFP Port Anzahl | 2 |
| Cable | 1 G |
| Cat5e | • |
| Cat6 | • |
| Cat6a | • |
| Copper Ports | 8x 2.5GbE |
| SFP Ports | - |
| SFP+ Ports | 2x 10GbE |
| PoE Available Ports | 8 |
| PoE Standard | 802.3af/at |
| PoE Power Budget | 240W |
| Switch Chip | RTL9302C |
| PHY | GPY241 |
| PoE Controller | RTL8238B |
| Flash Memory | 16MB NOR 128MB NAND |
| SDRAM Memory | 512MB DDR3 |
| Packet Buffer | 12Mbit |
| MAC Table Size | 16K |
| Switching Capacity | 80Gbps |
| Fan(s) | 2 |
| Power Supply | Int. PSU 300W |
| Dimensions (W x H x D) | 330 x 44 x 230 |
| Operating Temperature | 0°C to 50°C |
| PoE Budget | <300 Watt |
