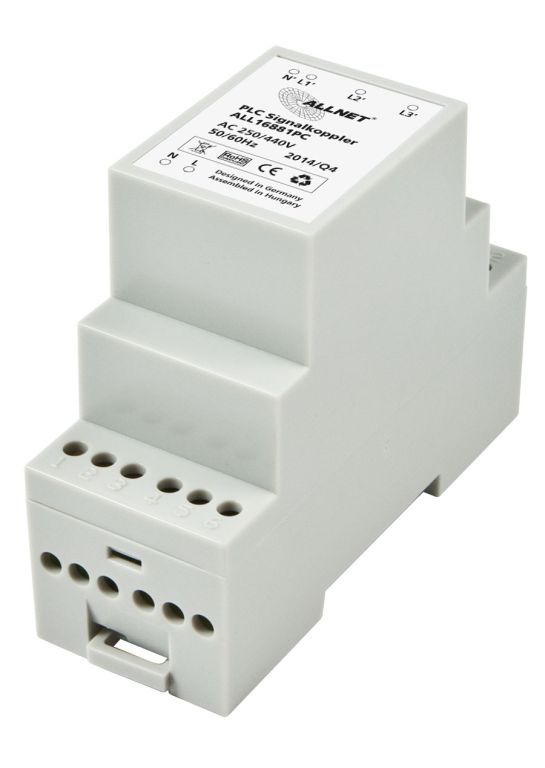

ALLNET ALL16881 / Powerline phase coupler/signal bridge 3 Pha
Connects all phases of the house power network and makes the powerline signal available on all sockets in a circuit. Cross-connections to other circuits can be implemented via the fourth LX phase if electricity meters, FI circuit breakers and similar obstacles to powerline communication have to be o
Availability: In stock
["Connects all phases of the house power network and makes the powerline signal available on all sockets in a circuit. Cross-connections to other circuits can be implemented via the fourth LX phase if electricity meters, FI circuit breakers and similar obstacles to powerline communication have to be overcome. **IMPORTANT: 3 phases + \"L/N\" . Increased range due to better coupling compared to the standard phase coupler. Multiple circuits can be connected with this adapter. FIs can be bridged with several ** ATTENTION: These devices may only be installed by a qualified electrician, otherwise there is a risk of fire or electric shock", "ALL16881PC AC 250/440V 50/60Hz", "Powerline devices on different phases and circuits can now communicate with each other", "Frequency range 1~70 MHz", "Mounting on DIN HUT rail", "Suitable for signal bridging via FI circuit breakers and electricity meters"]
Specifications
| Frequency Range | 0-70Mhz |
| Nominal Voltage | AC 250/440V 4x22nFX2, 3 phase |
| Temperature Range | -25°C - 100°C |
| Installation width | 34mm |
| Installation depth | 70mm max. |
| Mounting | DIN rail mounting |
| Mark | CE |
