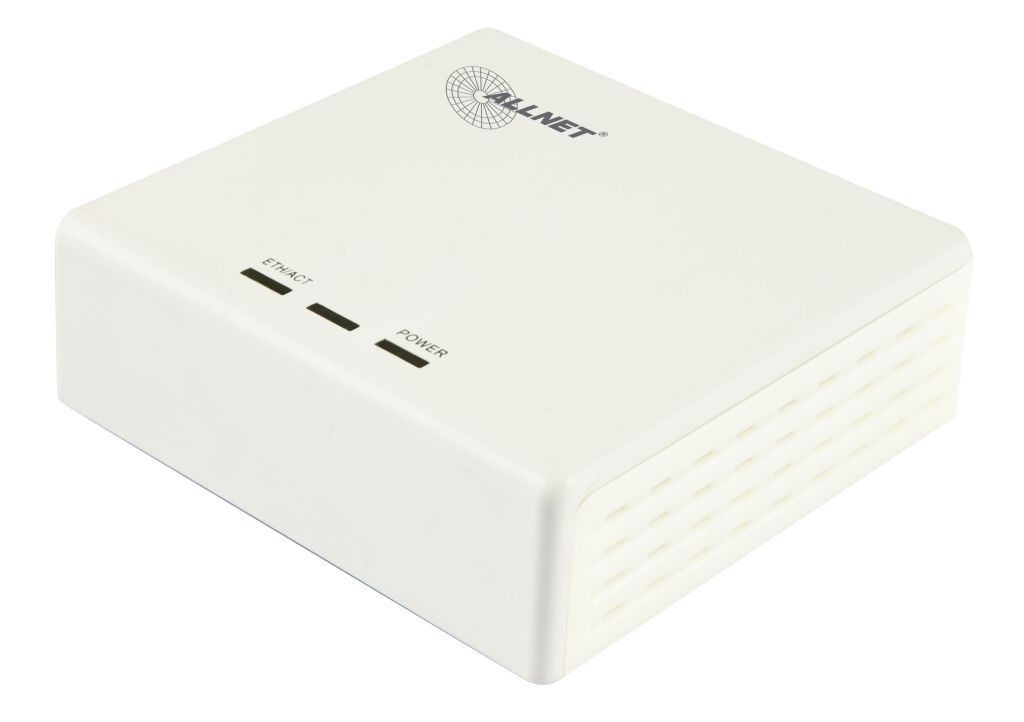

["With the ALL168607 adapter, the first ALLNET coax line / powerline adapter according to the HomePlug AV2 standard with Smartlink 600 Mbps comes onto the market. The ALLNET ALL168607 uses the latest Qualcomm QCA7450/AR1540 chipset. It has a Gigabit Ethernet RJ45 interface and is compatible with the powerline standards IEEE1901/Homeplug AV and GreenPHY. This enables easy use with existing powerline devices from other manufacturers and transmits in parallel. High data rates and Quality of Service (QoS) enable the use of HD multimedia applications and help you realize high-speed digital multimedia home networks throughout the home, including IPTV services, simultaneous HD video and audio distribution, voice over IP calls, online gaming, high speed Internet. The ALL168607 offers simple plug & play networking using a push button, without the need for software configuration. The Network Management Key (NMK) with its 128-bit AES hardware encryption ensures secure, authenticated access to the logical network and protects the network from hackers. In order to meet the requirements for modern Green IT products, the ALL168607 complies with the European Code of Conduct (CoC) for improving energy efficiency and the Energy using Products (EuP) Directive of the European Union. The new HomePlug AV2 standard enables highly efficient data transmission on the power cable with technologies such as Efficient Notching & High Efficiency PHY Protocoll Data Unit (PPDU) Structure. The ALL168207 is the right device if you want to provide network connections via coax cabling (e.g. TV antenna cable). Up to 200 Mbit/s gross transfer rate can be achieved and cable lengths of up to approx. 800m are possible. The range depends on the installed sockets, attenuators, filters, etc. of the cable network. The TV signal remains unaffected, so that TV reception is still guaranteed via the same cable. Powerline -> HomePlug AV2 MIMO Powerline -> HomePlug AV Powerline -> IEEE 1901 Ethernet -> IEEE 802.3 Ethernet -> IEEE 802.3u 10/100/1000 Ethernet (1Gbps) Energy Saving -> EuP Compliance OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK and ROBO modulation scheme 128Bit AES encryption with key management (activated via Simple Connect Button) Power LED PowerLine Link/ACT Status LED Ethernet Link/ACT Status LED Operating systems for configuration software: Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit Temperature operation: 0 ~ 40 °C Humidity operation: 30% ~ 80% (non-condensing) Temperature storage: -25 ~ 70 °C Humidity storage: 30% ~ 95% (non-condensing) 1 piece ALLNET ALL1686607 1 piece RJ45 patch cable 1.8m 1 piece CD-ROM with manual & software", "New HomePlug AV2 standard", "Up to 600 Mbps Powerline data transfer rate via Coax Line & Powerline \"SMARTLINK\"", "More bandwidth through extended frequency range 30 to 86Mhz", "Secure communication and protection of your data at the touch of a button", "Easy installation", "Integrated QoS enhancements", "Hardware Packet Classifiers for TOS, CoS and IP Port Number", "QoS Classification by destination MAC address and IP port", "Powerline max 200m", "Coax line max. 700m", "Support IGMP managed multicast sessions", "IGMP snooping with multicast to multiple unicast support", "IGMP/MLD address filtering"]
