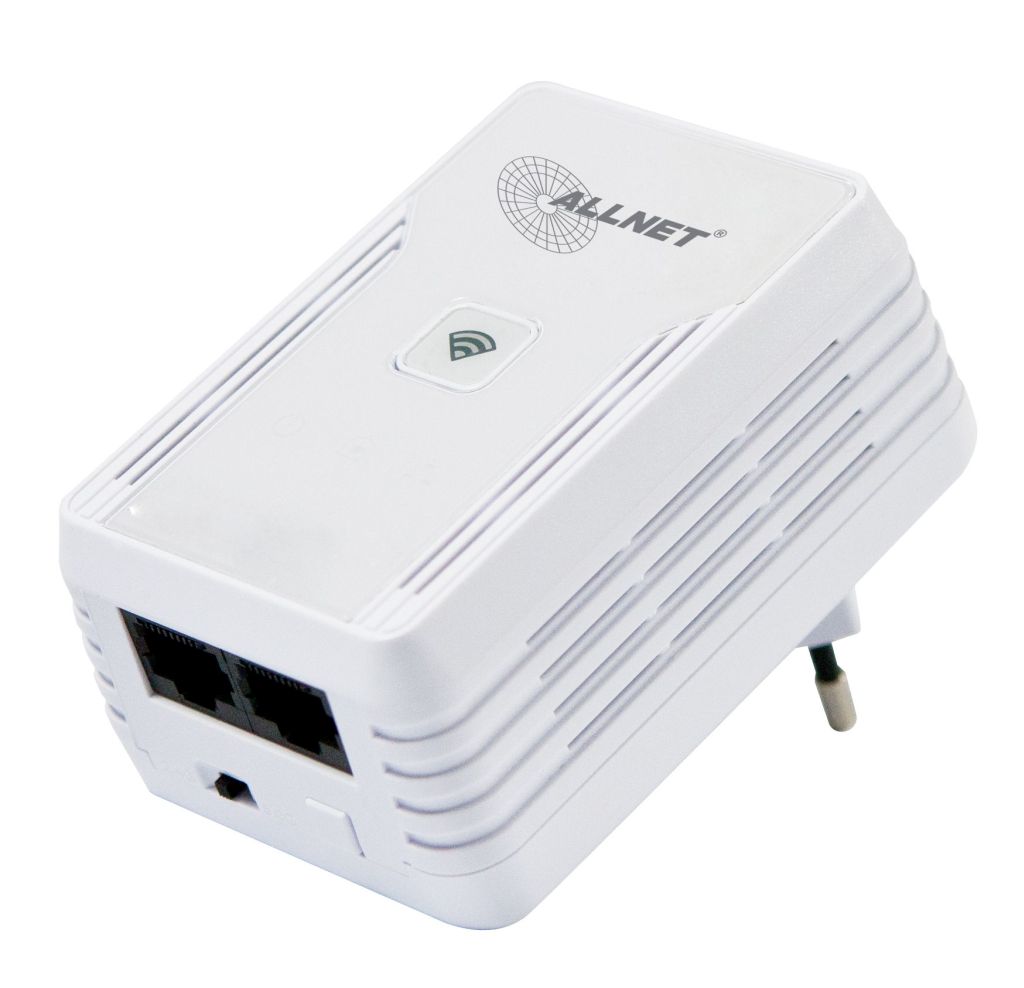

ALLNET ALL1682511v2 / 500Mbit Powerline + 300Mbit Accesspoin
The ALLNET ALL1682511v2 is a 500 Mbps Homeplug AV Wireless N adapter that combines powerline and wireless LAN in one device. It establishes the network connection to other Homeplug AV adapters via the 230V house power network and at the same time communicates with wireless devices such as laptops, s
Availability: In stock
["The ALLNET ALL1682511v2 is a 500 Mbps Homeplug AV Wireless N adapter that combines powerline and wireless LAN in one device. It establishes the network connection to other Homeplug AV adapters via the 230V house power network and at the same time communicates with wireless devices such as laptops, smartphones and tablets via its 300 Mbps wireless LAN interface (IEEE802.11b/g/n or IEEE802.11a/n selectable). In addition, the ALL1682511v2 Homeplug AV Wireless N Adapter has two RJ45 network ports for connecting wired network devices. The highest encryption standards for wireless LAN and powerline, which can be activated at the push of a button, ensure tap-proof data exchange across all interfaces. Quality of Service (QoS) for HomePlug offers the necessary bandwidth for modern multimedia applications such as Broadband TV (IPTV), higher data rate broadband sharing, online gaming, VoIP calls, audio-video transmission over the network and IP camera connectivity. With an average power consumption of less than 7 watts, the ALL1682511v2 Homeplug AV Wireless N adapter meets all the requirements that modern Green IT products have to meet today. The compact design, no larger than a normal plug-in power supply, enables inconspicuous installation without covering neighboring power sockets. Powerline -> HomePlug AV Wireless -> IEEE 802.11b/g/n Ethernet -> IEEE 802.3, Auto MDI/MDIX IEEE 1901/HomePlug AV Compliant Co-existence with HomePlug 1.0 Nodes Compliant to EuP requirements TDMA and priority-based CSMA/CA channel access OFDM 1024/256/64/16/8 QAM, QPSK, BPSK, ROBO 128Bit AES encryption with key management (activated via Simple Connect Button) Operation 3.6W watts, standby max. 0.5 watts Operating systems for configuration software: Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit Temperature operation: 0 ~ 45 °C Humidity operation: 10% ~ 90% (non-condensing) Temperature storage: -20 ~ 60°C Humidity Storage: 5% ~ 90% (non-condensing)", "500 Mbps Homeplug AV", "300Mbps Wireless N Access Point", "2.4Ghz or 5Ghz selectable", "WPS function", "2nd LAN port", "Priority-based CSMA/CA channel access schemes maximize efficiency and throughput", "Integrated Quality of Service (QoS) Enhancements", "Hardware Packet Classifiers for ToS, CoS and IP Port Number", "Supports IGMP managed multicast session", "WEP 64/128/152bit", "WPA, WPA-PSK", "WPA2, WPA2-PSK", "Power LED (PWR)", "PowerLine Link/ACT Status LED (PL-LKACT)", "Ethernet Link/ACT Status LED (ETH-LKACT)", "WPS on/off status LED", "1 piece ALLNET ALL1682511v2", "1 piece RJ45 patch cable 1.8m", "1 piece CD-ROM with manual & software"]
Specifications
| Element | Spezifikation |
| Chipsatz Powerline | Atheros AR7420+1540 |
| Chipsatz Wireless | Atheros AR9344 |
| Standards | Powerline -> HomePlug AV Wireless -> IEEE 802.11b/g/n Ethernet -> IEEE 802.3, Auto MDI/MDIX IEEE 1901/HomePlug AV Compliant Co- existence with HomePlug 1.0 Nodes Compliant to EuP requirements |
| Brutto Datenrate Powerline | bis zu 500Mbps |
| Brutto Datenrate Wireless | bis zu 300Mbps, 2Tx2R |
| Frequenz-Band Powerline | 2~28 MHz |
| Frequenz-Band Wireless | 2,4 GHz / 5Ghz umschaltbar |
| Access-Methode Powerline | TDMA und priority-based CSMA/CA channel Zugriff |
| Access-Methode Wireless | CSMA/CA,EDCA |
| Quality of Service | 4 Levels Priority-based CSMA/CA channel access schemes maximize efficiency and throughput Integrated Quality of Service (QoS) Enhancements Hardware Packet Classifiers for ToS, CoS and IP Port Number Supports IGMP managed multicast session |
| Modulationsart Powerline | OFDM 1024/256/64/16/8 QAM, QPSK, BPSK, ROBO |
| Modulationsart Wireless | CCK,BPSK,DQPSK, QPSK, QAM |
| Powerline Anschluss | EURO-Netzstecker |
| Network connection | 2x RJ45 10/100Mbit |
| Powerline encryption | 128-bit AES encryption with key management (activated via Simple Connect Button) |
| Encryption wireless | WEP 64/128/152bit WPA, WPA-PSK WPA2, WPA2-PSK |
| LED indicators | Power LED (PWR) PowerLine Link/ACT Status LED (PL-LKACT) Ethernet Link/ACT Status LED (ETH-LKACT) WPS on/Off Status LED |
| Power supply | 100~240 VAC, 50/60 Hz |
| Stromverbrauch | Operation 3.6W watts, standby max. 0.5 watts |
| Operating systems for operations | alle TCP/IP Betriebssyteme |
| Operating systems for configuration software | Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit |
| Housing | Plastic housing |
| Vicinity | Operating temperature: 0 ~ 45 °C Operating humidity: 10% ~ 90% (non-condensing) Storage temperature: -20 ~ 60 °C Storage humidity: 5% ~ 90% (non-condensing) |
| Labeling | CE, |
| Mass | 82 x 62 x 42 mm (height x width x depth) |
| Weight | 140 Gramm (nur Adapter) |
| Verpackungsinhalt | 1 piece ALLNET ALL1682511v2 1 piece RJ45 patch cable 1.8m 1 piece CD-ROM with manual & software |
| LED-Anzeigen | Power LED (PWR) PowerLine Link/ACT Status LED (PL-LKACT) Ethernet Link/ACT Status LED (ETH-LKACT) WPS on/Off Status LED |
