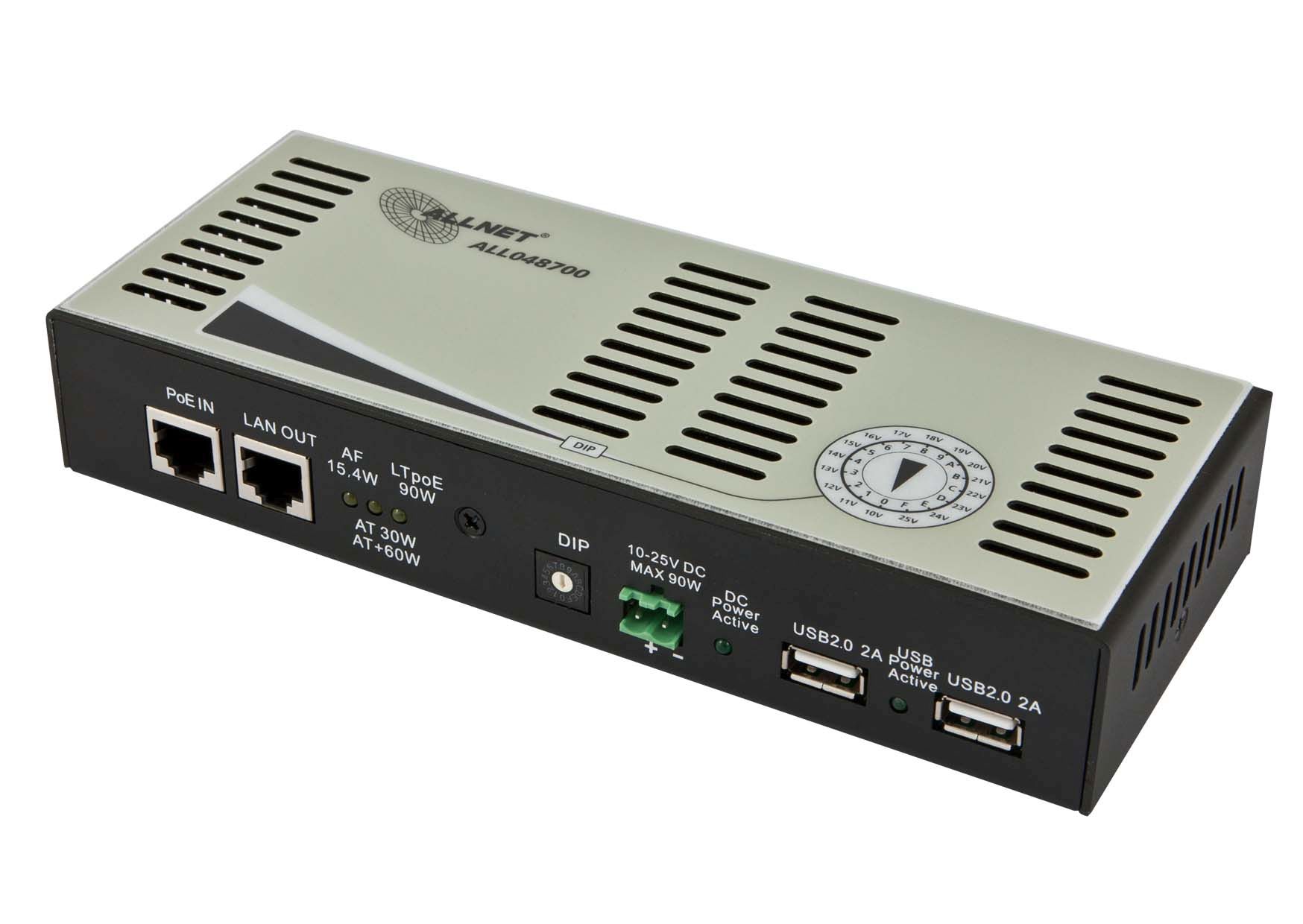

ALLNET ALL048700 / Splitter HPoE 90W 10-25V 2x USB 2.0 je 10
Power over Ethernet, even if your device doesn't support it. The Power Over Ethernet Splitter allows you to supply your network devices, such as access points, LAN cameras or switches/hubs that are not PoE-capable, with power via the CAT6 cable wherever you need the devices. The ALL048700 splits the
Availability: In stock
["Power over Ethernet, even if your device doesn't support it. The Power Over Ethernet Splitter allows you to supply your network devices, such as access points, LAN cameras or switches/hubs that are not PoE-capable, with power via the CAT6 cable wherever you need the devices. The ALL048700 splits the voltage coming from the network cable and the data back into two sockets in front of the device. A voltage of 10V-25V (in 1V steps) is output via a rotary switch, so this splitter can be used universally. The splitter is compatible with IEEE802.3af/at / LT PoE++ and even delivers up to an output power of 90 watts, depending on the input power. In addition, smartphones and tablets, for example, can be charged via the two USB ports. LT PoE++ IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet enhancements IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE 802.3ab 1000BaseT 1x RJ45 input (data and power) 1x RJ45 output (data only) 1x output (power only) Phoenix terminals 2x USB 2.0 5V outputs at max. 2A 10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25V System: 2.1A (Max. 120W), StandBy: typ. 1.8W Temperature operation: 0 ~ 50 °C Humidity operation: 10% ~ 90% (not condensing) Storage temperature: -40 ~ 70 °C Storage humidity: 5% ~ 90% (non-condensing)", "IEEE802.3af/at standard", "up to 90W output power", "DC output 10-25V", "2x USB output 5V/2A"]
Specifications
| Element | Spezifikation |
| Supported standards | LT PoE++ IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet enhancements IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE 802.3ab 1000BaseT |
| Connections | 1x RJ45 input (data and power) 1x RJ45 output (data only) 1x output (power only) Phoenix terminals 2x USB 2.0 5V outputs at max. 2A |
| LED Indikatoren | Power / PoE Act/Status |
| Spannungseingang | 44~57V |
| Spannungsausgang | 10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25V |
| Stromverbrauch | System: 2,1A (Max.120W), StandBy: typ. 1,8W |
| Housing | Metal housing, wall mounting possible |
| Mass | Length/width/height: 200 x 80 x 36 mm |
| Weight | 440g (without power supply and packaging) |
| Vicinity | Operating temperature: 0 ~ 50 °C Operating humidity: 10% ~ 90% (non-condensing) Storage temperature: -40 ~ 70 °C Storage humidity: 5% ~ 90% (non-condensing) |
| Labeling | CE |
