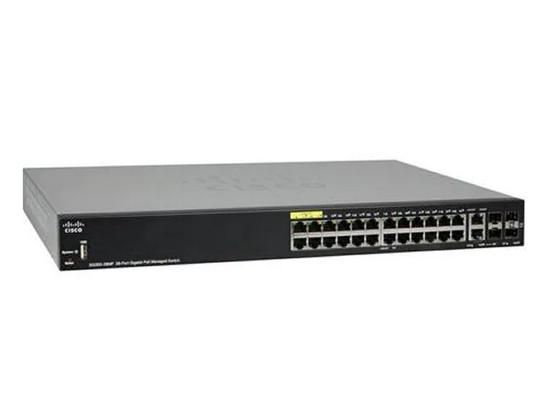

Cisco Managed, 24 x 10/100/1000 PoE+ ports (4 support 60W PoE), 2 x Gigabit copper/SFP combo + 2 SFP ports, 382W PoE power budget
€361,85
Order Cisco Managed, 24 x 10/100/1000 PoE+ ports (4 support 60W PoE), 2 x Gigabit copper/SFP combo + 2 SFP ports, 382W PoE power budget from EET. Distributor of Cisco Network Switches. Same day shipping.
Availability: In stock
Secure payment · Fast delivery
EAN:W129110082Categories:, , Brand:
Order Cisco Managed, 24 x 10/100/1000 PoE+ ports (4 support 60W PoE), 2 x Gigabit copper/SFP combo + 2 SFP ports, 382W PoE power budget from EET. Distributor of Cisco Network Switches. Same day shipping.
Specifications
Specifications
| Certification | UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A |
| Compliance certificates | WHAT, WEEE |
| Forwarding rate | 41.66 Mpps |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Number of IP interfaces | 128 |
| Number of queues | 8 |
| Number of static routes | 990 |
| Packet buffer memory | 1,5 MB |
| Static route | Yes |
| Switching capacity | 56 Gbit/s |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Redundant fans support | Yes |
| Reset button | Yes |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1/2 |
| Multicast support | Yes |
| 10G support | No |
| Active link detection | Yes |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Cable types supported | Cat5e |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet LAN data rates | 10, 100, 1000 |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs | 4094 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| VLAN mapping type | 1:1 VLAN mapping |
| VLAN support | Yes |
| Heat dissipation | 1573,3 BTU/h |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Built-in processor | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 213373 h |
| Processor frequency | 800 MHz |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| USB 2.0 ports quantity | 1 |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 382 W |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
| Management protocols | SNMP v1/2c/3, Telnet, HTTP/HTTPS, SSH, BOOTP, SNTP |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 1024 |
| Authentication | Guest VLAN, Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS, TACACS+ |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client, DHCP Option 82, DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| Security algorithms | SSH, SSH-2, SSL/TLS |
| Sustainability compliance | Yes |
| Brand Name | Cisco |
| Warranty | 1 year |
