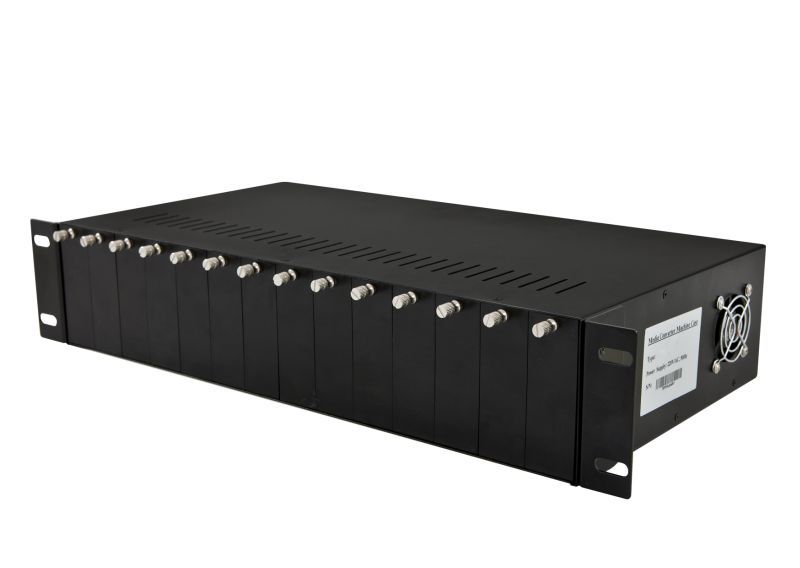

ALLNET media converter accessories 14-slot chassis 19"
14x slots for 10/100M or 1000M or 10/100/1000M stand-alone media converter of ALL-MC1xx Series Protection of power supply circuit-breaker when overvoltage circuit-breaker when overflow circuit-breaker when short circuit Temperature operating: -10 ~ 50 °C Humidity operating: 5% ~ 95% (non-condensing)
Availability: In stock
["14x slots for 10/100M or 1000M or 10/100/1000M stand-alone media converter of ALL-MC1xx Series Protection of power supply circuit-breaker when overvoltage circuit-breaker when overflow circuit-breaker when short circuit Temperature operaring: -10 ~ 50 °C Humidity operating: 5% ~ 95% (non-condensing) Temperature storage: -20 ~ 85 °C Humidity storage: 5% ~ 95% (non-condensing)", "14 slots chassis for stand-alone media converters of the ALL-MC1xx series (5VDC series)", "2U 19\"", "Max. power consumption / budget 120W", "including 2x internal power supplies"]
Specifications
| Element | Spezifikation |
| Slots | 14x slots for 10/100M or 1000M or 10/100/1000M stand-alone media converter of ALL-MC1xx Series |
| Material | aluminium alloy or steel |
| Power in | AC 90V ~ 230V |
| Power Out | DC 5V 12A |
| Max Power Consumption | 120W |
| Dimensions | 485 × 231 × 90 mm (L x W x H) , 19", 2U |
| Ripple | ≤50 Mv |
| Noise | ≤50 M |
| Additional Features | Protection of power supply circuit-breaker when overvoltage circuit-breaker when overflow circuit-breaker when short circuit |
| Environment | Temperature operarting: -10 ~ 50 °C Humidity operating: 5% ~ 95% (non-condensing) Temperature storage: -20 ~ 85 °C Humidity storage: 5% ~ 95% (non-condensing) |
| Marks | CE |
