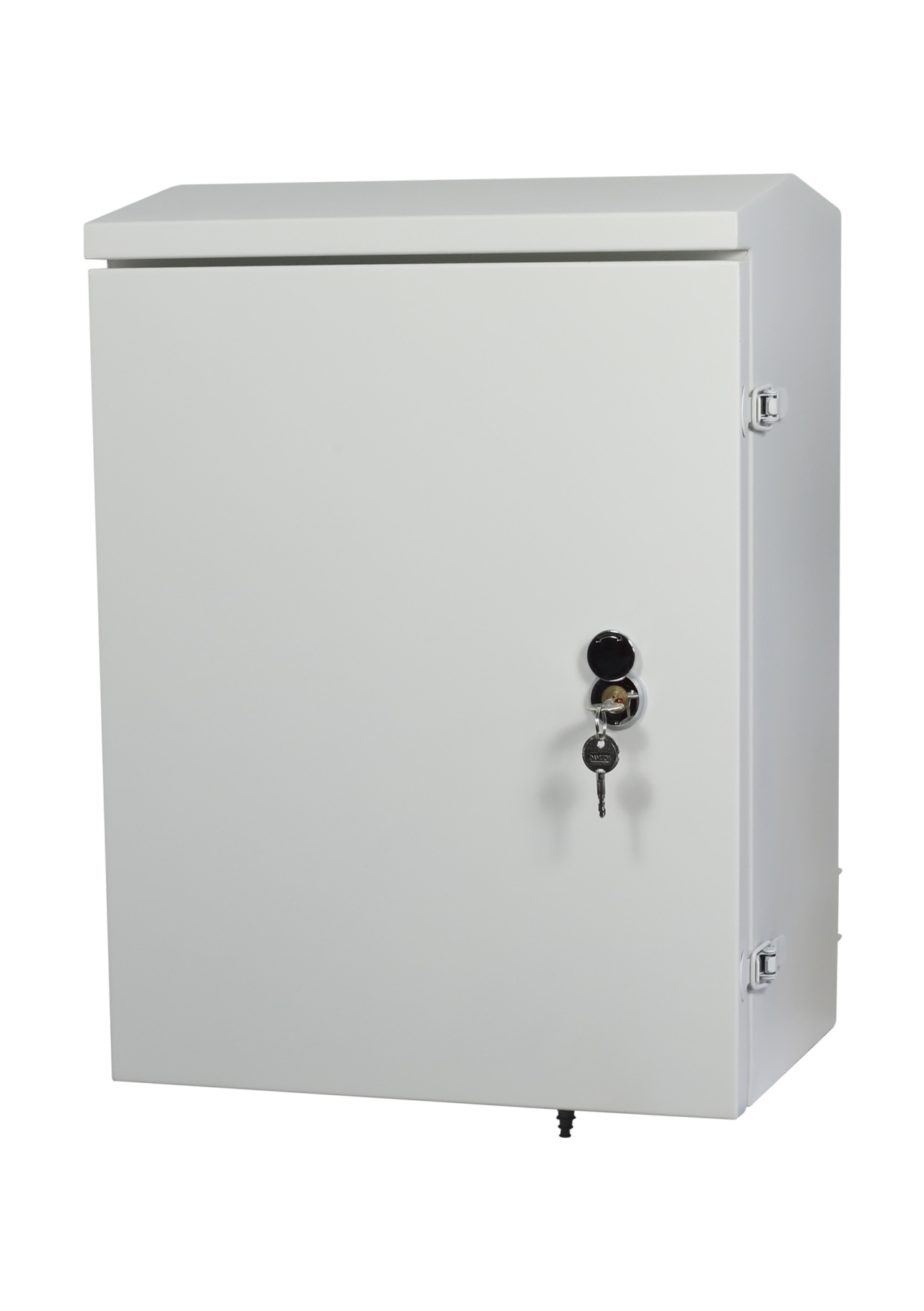

ALLNET DIN-RAIL wall housing/outdoor PoE Smart-Managed Switch T220mm, light gray, IP66, ÜS, ALL-DIN-SGI8012PM
The ALL-DIN-SGI8012PM presents itself as an outstanding outdoor housing for IT devices that features an integrated 8x Gigabit PoE Smart Managed Switch including 2 optional SFP ports. This case sets new standards as it combines a number of innovative components. Its robust casing contains not only a
Availability: In stock
["The ALL-DIN-SGI8012PM presents itself as an outstanding outdoor housing for IT devices that features an integrated 8x Gigabit PoE Smart Managed Switch including 2 optional SFP ports. This case sets new standards as it combines a number of innovative components. Its robust casing contains not only a double 2P circuit breaker with 2 protective poles and a double 2P SPD surge arrester, but also a practical AC protective contact socket. A powerful 240W Meanwell industrial power supply is integrated for a reliable power supply. Equally impressive is the Icotek cable entry strip KEL-ER 24/1, which is manufactured in Germany and ensures efficient cable organization. Particularly noteworthy is the additional space on the DIN rail on which the power supply is located. This area can be used to attach optional terminal devices for DIN rail mounting, such as the ALL-RUT22 LTE router, which can be perfectly integrated into the overall concept. The possible applications of the housing are diverse and range from sophisticated video surveillance solutions to reliable forest monitoring and the establishment of stable WIFI/radio connections. Thanks to its outstanding waterproof properties (protection class IP66) and rust resistance, this housing is ideal for long-term use outdoors. The flexible assembly allows it to be attached to walls as well as to poles using the included metal mast strap. Made in Germany Icotek KEL-ER 24/10 Cable entry strip IP66 equipped >5S long press: restore factory settings Green LEDs indicate Link/Act,yellow LEDs indicate PoE 6KV,contact / 8KV:air,standard:IEC6 1000-4-2", "3PIN AC100~240V Power INPUT", "2P circuit breaker 10A included", "2P SPD surge protection device / surge arrester", "Built-in 8x port Gigabit Webmanaged PoE switch with 2 SFP ports tray", "Integrated 48VDC 240W industrial power supply from Meanwell SDR-240-48", "Made in Germany Icotek KEL-ER 24/10 cable entry strip IP66 equipped with KT", "IP66 waterproof housing and is suitable for long-term outdoor use", "DIN rail for mounting additional devices such as switches or power supplies (see accessories)", "Incl. metal strap for pole mounting (see picture 7)"]
Specifications
| 19/10"/DIN-Rail | DIN-Rail |
| Breite | 380 mm |
| Farben | Lichtgrau |
| Height | 500 mm |
| Schrankart | Wall housing |
| Schutzklasse | IP66 |
| Tiefe | 220 mm |
| Door type | Solid sheet metal door |
| Wall housing 1 or 2 parts | Wall housing, 1 piece |
| Parameter | Specifications |
| Power input | AC100~240V, 50/60Hz, 10A |
| AC output | AC output 1 channel |
| Switch | 8 Port RJ45 Gigabit Smart managed Industrial Switch 2x SFP Slot Gigabit |
| Circuit breaker | 2P 10A |
| Connector | Made in Germany Icotek KEL-ER 24/10 Cable entry strip IP66 equipped |
| Powersupply | 48VDC 240W Meanwell Powersupply |
| Lock | Key lock with protective cap with 2x key |
| Operating Temperature | -40°C ~ 75°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity (no condensation) | 0~95% |
| Dimension(H×W×D) | 500×380×220mm |
| Material | Metal |
| Colour | White |
| Net-weight | 20kg |
| Reset Key | >5S long press: restore factory settings |
| Console port | RJ45 to serial port (38400,8,N,1) |
| Cable and distance | Use cat5e/6,100m max |
| Standard | IEEE802.3,IEEE802.3u,IEEE802.3z |
| Switch fabric | 20Gbps |
| Thoughput | 14.88Mpps |
| Buffer | 1M |
| MAC address table | 8K |
| Power | 1*red |
| Uplink 9~10 | Green LEDs indicate Link/Act |
| Downlink 1~8 | Green LEDs indicate Link/Act,yellow LEDs indicate PoE |
| Surge | 6KV,standard:IEC6 1000-4-5 |
| ESD | 6KV,contact / 8KV:air,standard:IEC6 1000-4-2 |
| System configuration | System date time |
| User Management | \ |
| Safe Management | http |
| SNMP | Enable/Disable |
| telnet | Enable/Disable |
| SSH | Enable/Disable |
| Configuration file | \ |
| \ | Save/Delete |
| Firmware file | \ |
| System | \ |
| Port configuration | Common |
| Speed | Auto |
| Full-1000 Mbps | Yes |
| Full-100 Mbps | Yes |
| Full-10 Mbps | Yes |
| Half-10 Mbps | Yes |
| Flow control | \ |
| Storm constrain | Action |
| Broadcast | Min-rate | Max-rate 1~1488100pps |
| Enable | Log |
| Interval | 6~180s |
| Multicast | Min-rate | Max-rate 1~1488100pps |
| Unicast | Min-rate | Max-rate 1~1488100pps |
| Strom control | Broadcast(1~1024000kbps) |
| Rate limit | TX |
| Protected Port | / |
| Learn Limit | MAC Address |
| Port trunk | Trunk Group |
| Member Port | Add/Delete |
| Trunk Method | Src-mac |
| Dst-mac | Yes |
| Src-dst-mac | Yes |
| Src-ip | Yes |
| Dst-ip | Yes |
| Src-dst-ip | Yes |
| Port Mirror | Mirror Port |
| Mirrored Port | / |
| 19/10"/DIN-Rail | DIN-Rail |
