Features Ubiquiti Nanobeam 2AC

Point-to-point access point (2.4GHz)With WiFi radio, only for connection with mobile deviceRemote management with UMobile appLess sensitive to disturbing environmental signalsMaximum transmission power of 27 dBmWiFi standard 802.11n at 330 MbpsGigabit LAN port with PoE for network and powerEasy installation, including mast bracketsDish diameter: 189mmWorks with free Ubiquiti spectrum analyzer softwareQoS for video streaming and VoIP

Nanobeam 2AC

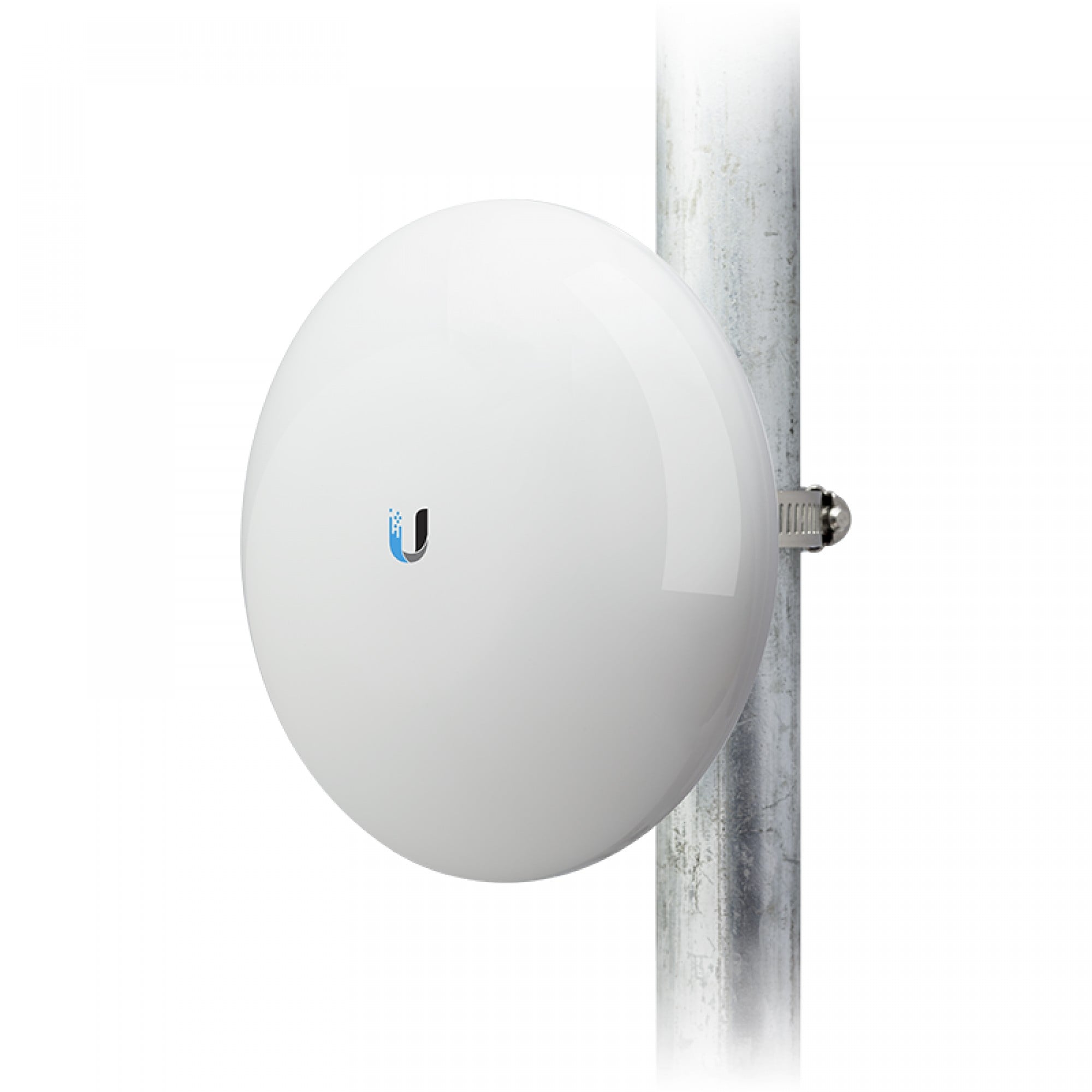

The Ubiquiti Nanobeam 2AC is the 2.4GHz model from the Ubiquiti Nanobeam AC series. The antenna of this model offers a gain of 13 dBi and a transmission power of 27 dBm. In addition, the Nanobeam 2AC contains a separate WiFi radio for connection with the UMobile app on your mobile phone or tablet. You can easily manage and configure the access point remotely via the UMobile app (iOS and Android).

Perfect solution for Point to Point WiFi

The Ubiquiti Nanobeam AC Gen2 is an excellent solution, intended for creating a point to point WiFi connection. When you align 2 units against each other, you can, for example, connect 2 nearby buildings. You intelligently share one internet connection so that each branch has a backup connection, without having to extend cables.

Power supply and network

The Ubiquiti Nanobeam 2AC has 1 Gigabit LAN connection with Power over Ethernet (PoE) support (PoE injector 24V, 0.5A PoE required). The unit can be supplied with both power and network connection via the network cable, which is ideal for locations where there is no power socket available. The dish has a diameter of 189mm and can be adjusted as desired. You can read the signal strength using the integrated LEDs and thus determine the best position for the device. A bracket for mast mounting is included as standard.

AirOS for easy management

You can easily install and manage the access point via the Ubiquiti AirOS system. This makes it possible to monitor the throughput speed and link status of your connections. Using the free spectrum analyzer software you can quickly detect any malfunctions. The software shows you on which channels within the 5 GHz spectrum equipment is active. Thanks to this software you can always choose the right channel so that your connection will achieve optimal results.

AirControl

You can manage your entire Ubiquiti network from the cloud via Ubiquiti AirControl. Easily roll out firmware updates for all your access points and have a handy overview of all your equipment.

No seamless roaming

Ubiquiti's access points do not support seamless roaming. The access points you are looking at are also only suitable for point-to-point solutions and not as an access point for a daily WiFi network. If you are looking for an access point that supports seamless roaming, take a look at the products fromRuckus WirelessorAerohive.

Package contents

• Ubiquiti Nanobeam NBE-2AC-13
• PoE injector
• Fastening material
• Adjustment screws
• Mounting brackets
• Manual
