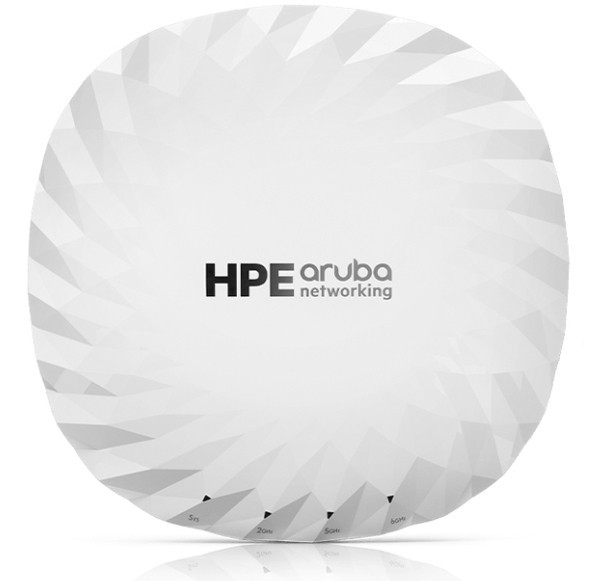

HPE Aruba Networking AP-735 (RW) Wireless Connection White WiFi
- HPE Aruba Networking AP 735 (RW) Campus wireless connection ZigBee, Bluetooth 5.4 LE, Wi Fi 7 Wi Fi 7 2.4 GHz, 5 GHz, 6 GHz BTO ceiling mountable
Availability: In stock
Product description: HPE Aruba Networking AP-735 (RW) - Campus - wireless connection - Wi-Fi 7 Device type: Wireless connection Form factor: Ceiling mountable - indoors Data connection protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4 LE, IEEE 802.11be (Wi-Fi 7) Frequency band: 2.4 GHz, 5 GHz, 6 GHz Performance: Maximum data rate (5 GHz): 2.9 Gbps Maximum data rate (2.4 GHz): 688 Mbps Maximum data rate (6 GHz): 5.8 Gbps Maximum tri-band aggregate data rate: 9.3 Gbps Capacity: Spatial streams: 2 Associated client devices per radio: 512 BSSIDs per radio: 16 OFDMA units: 37 OS required: ArubaOS 10.7.0.0 Power Over Ethernet (PoE) supported: PoE Class 5 Price type: BTO Dimensions (W x D x H): 24 cm x 24 cm x 5.6 cm Weight: 1.44 kg Manufacturer's Warranty: Limited Lifetime Warranty
Specifications
| Width | 24 cm |
| Depth | 24 cm |
| Device type | Wireless connection |
| Height | 5.6 cm |
| Built-in equipment | GNSS receiver, barometric pressure sensor |
| Robust design for outdoor use | Indoors |
| Weight | 1.44 kg |
| Data connection protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4 LE, IEEE 802.11be (Wi-Fi 7) |
| Characteristics | Trusted Platform Module (TPM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) Ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), Cyclic Shift Diversity (CSD), Packet Aggregation A-MPDU, Packet Aggregation A-MSDU, Intelligent Power Monitoring (IPM), 2x2 MIMO Technology, Very High Throughput (VHT) Support, Security Slot (Kensington security lock compatible), Target Wait Time (TWT), HPE SmartRate, |
| Connection technology | Wireless |
| Frequency band | 2.4 GHz, 5 GHz, 6 GHz |
| Capacity | Spatial currents: 2 | Associated client devices per radio: 512 | BSSIDs per radio: 16 | OFDMA units: 37 |
| Encryption algorithm | WPA, WPA2, WPA3-Enterprise, WPA3-Enhanced Open, WPA2-MPSK |
| Line encoding format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, 4096 QAM, DSSS |
| Model | Ceiling mountable |
| Compliance Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, IEEE 802.11be |
| Performance | Maximum data rate (5 GHz): 2.9 Gbps | Maximum data rate (2.4 GHz): 688 Mbps | Maximum data rate (6 GHz): 5.8 Gbps | Maximum tri-band aggregate data rate: 9.3 Gbps |
| Spread-spectrum method | OFDM, DSSS, OFDMA |
| Status indicators | System, status, radio |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) compliant | Yes |
| Communication technology | Bluetooth Low Energy (LE), Zigbee |
| Interface | 2 x 2.5 GBase-T - RJ-45 | 2 x USB 2.0 (Host) - Type A | 1 x console - micro-USB |
| MTBF (expected time between failures) | 635,000 hours |
| Compliance Standards | UL 2043, FCC, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, ETS 300 019 Class 2.3, RED 2014/53/EU, IEC/EN 62368-1, ETS 300 019 Class 3.2 |
| Price type | BTO |
| Power Over Ethernet (PoE) supported | PoE Class 5 |
| OS required | ArubaOS 10.7.0.0 |
| Width at shipment | 27.1 cm |
| Depth at shipment | 25.8 cm |
| Height at shipment | 8.9 cm |
| Shipping weight | 1.83 kg |
| Service & Support | Limited Warranty - Lifetime |
| Humidity level during use | 5 - 95% RH |
| Max. operating temperature | 50 °C |
| My. operating temperature | 0 °C |
