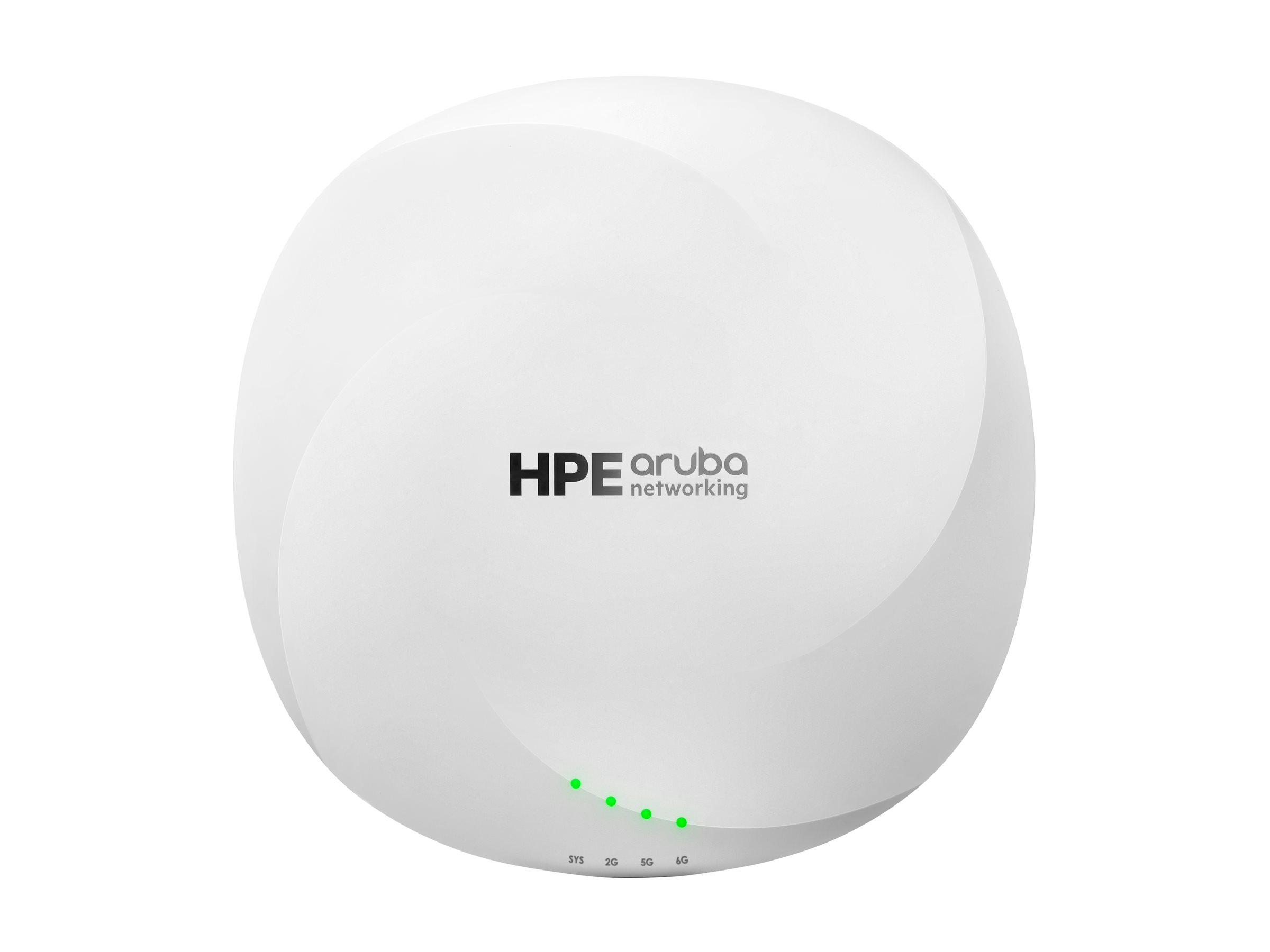

HPE Aruba Networking AP-635 (RW) Wireless Connection White WiFi
- HPE Aruba Networking AP 635 (RW) Campus Wireless Connection Wi Fi 6 ZigBee, Bluetooth, Wi Fi 6E 2.4 GHz, 5 GHz, 6 GHz Ceiling Mountable (Pack of 5)
Availability: In stock
Quantity per pack: 5 (specifications are for single items) Width: 22 cm Depth: 22 cm Device type: Wireless connection Height: 5.1 cm Robust design for outdoor use: Indoors Weight: 1.3 kg Data connection protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0 LE, IEEE 802.11ax (Wi-Fi 6E) Data transfer speed: 3.9 Gbps Features: Trusted Platform Module (TPM), Reset Button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Security Lock Opening (Cable Lock Sold Separately), Advanced Cellular Coexistence (ACC), Cyclic Shift Diversity (CSD), MU-MIMO Technology, Packet Aggregation A-MPDU, Packet Aggregation A-MSDU, Very High Throughput (VHT) Support, Target Wait Time (TWT), HPE SmartRate, 160 MHz bandwidth support, Advanced IoT Coexistence (AIC), au Connection technology: Wireless Frequency band: 2.4 GHz, 5 GHz, 6 GHz Capacity: Spatial Flows: 2 | Associated client devices per radio: 512 | BSSIDs per radio: 16 | OFDMA units: 8 Encryption algorithm: WPA, WPA2, WPA3 Line coding format: CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, 4096 QAM, DSSS Model: Ceiling mountable Compliance Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax Performance: Maximum data rate (5 GHz): 1.2 Gbps | Maximum data rate (2.4 GHz): 574 Mbps | Maximum data rate (6 GHz): 2.4 Gbps Spread-spectrum method: OFDM, DSSS, OFDMA Status indicators: System, status, radio Antenna: Internal Directivity: Omni-directional Internet of Things (IoT) Compatible: Yes Communication technology: Bluetooth Low Energy (LE), Zigbee Interface: 2 x 2.5 GBase-T | 1 x USB 2.0 (Host) - Type A | 1 x console - micro-USB MTBF (expected time between failures): 520,000 hours Compliance Standards: UL 2043, FCC, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, RED 2014/53/EU, IEC/EN 62368-1, EN60601-1-2 Equipment included: Mounting bracket Power Over Ethernet (PoE) supported: PoE Class 5 OS required: InstantOS 8.9.0.0, ArubaOS 8.12.0.0 Width when shipped: 25 cm Depth when shipped: 24 cm Height when shipped: 8.5 cm Shipping weight: 1.65 kg Service & Support: Limited warranty - lifetime Humidity during use: 5 - 95% RH Max. operating temperature: 50 °C Min. operating temperature: 0 °C
Specifications
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 7 dBi |
| Antenna type | Internal |
| Compliance certificates | CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ISED, Low Voltage Directive (LVD) |
| Placement | Ceiling |
| Product colour | White |
| Recommended usage | Indoor |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ethernet LAN data rates | 2500, 5000 |
| Frequency band | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps GHz |
| GPS (satellite) | Yes |
| MACsec support | No |
| Maximum data transfer rate | 2400 Mbit/s |
| MIMO | Yes |
| Modulation | 1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, QPSK |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 10 - 100 % |
| Storage temperature (T-T) | -40 - 70 °C |
| I/O ports | E0, E1: Two Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Mounting | The AP-635 built-in antennas are optimized for horizontal orientation of the AP, mounted at a typical ceiling height. |
| Weight (imperial) | 2,86 lbs |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| Power over Ethernet (PoE) | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 year |
