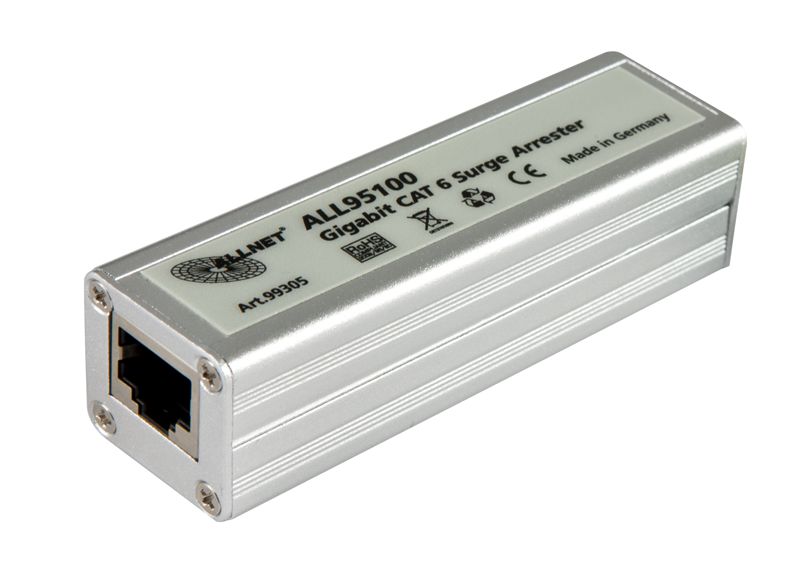

ALLNET TP Cat 6 Surge/Lightning Protection Surge Protector ALL95100
The ALLNET ALL95100 offers cost-effective and reliable protection against damage to sensitive devices. The ALLNET surge protector, housed in a compact housing, is simply plugged between the network cable and the device to be protected. Attention: For DSL or telephone connections with voltage applied
Availability: In stock
["The ALLNET ALL95100 offers cost-effective and reliable protection against damage to sensitive devices. The ALLNET surge protector, housed in a compact housing, is simply plugged between the network cable and the device to be protected. Attention: For DSL or telephone connections with voltage applied (pins 4+5 of the RJ45 plug) please order the ALL95101 instead! This takes over the protection of the device against overvoltage immediately and without configuration. Together with regular surge protection and potential equalization, the infrastructure in safety-relevant areas can be permanently protected, for example. If the overvoltage is too high, the device will break and must be replaced! 90VDC ±20% (Pair to Earth) <450V (at 100V/µs) <600V (at 1kV/µs) (pins)1 - 8 (on 8-pin module plug) Temperature operation: -15 ~ 40 °C Humidity operation: 10% ~ 95% (non-condensing)", "Plug and Play assembly", "Reliable protection against surges for all devices with a network connection", "Switch", "routers", "Firewall", "Notebook", "PC/Server", "TV sets", "Multimedia devices"]
Specifications
| Element | Spezifikation |
| Network connection | 1x RJ45 10/100/1000Mbps |
| PoE capability | IEEE802.3af, at, LTPoE++ bis 90W |
| Dissipation capacity | 10kA (8/20µs), 100A (10/1000µs) |
| Ignition voltage | 90VDC ±20% (Pair to Earth) <450V (bei 100V/µs) <600V (bei 1kV/µs) |
| Diff. Clamping | <15V, <5ns, 30Apk (Pair wire to wire) |
| Diff. capacity | <4.0pF |
| protected conductors | (Stifte)1 - 8 (an 8 poligem Modulstecker) |
| Test mark | IEEE 802.3, CAT 5, 6 |
| ESD Schutz | IEC 61000-4-2 class 4 (10kV CD) |
| Housing | Metal case |
| Vicinity | Operating temperature: -15 ~ 40°C Operating humidity: 10% ~ 95% (non-condensing) |
| Labeling | CE, RoHS |
| Mass | 82 x 25 x 25 mm (length x width x height) |
| Weight | 200 Gramm |
| Verpackungsinhalt | -ALLNET ALL95100 -User manual |
