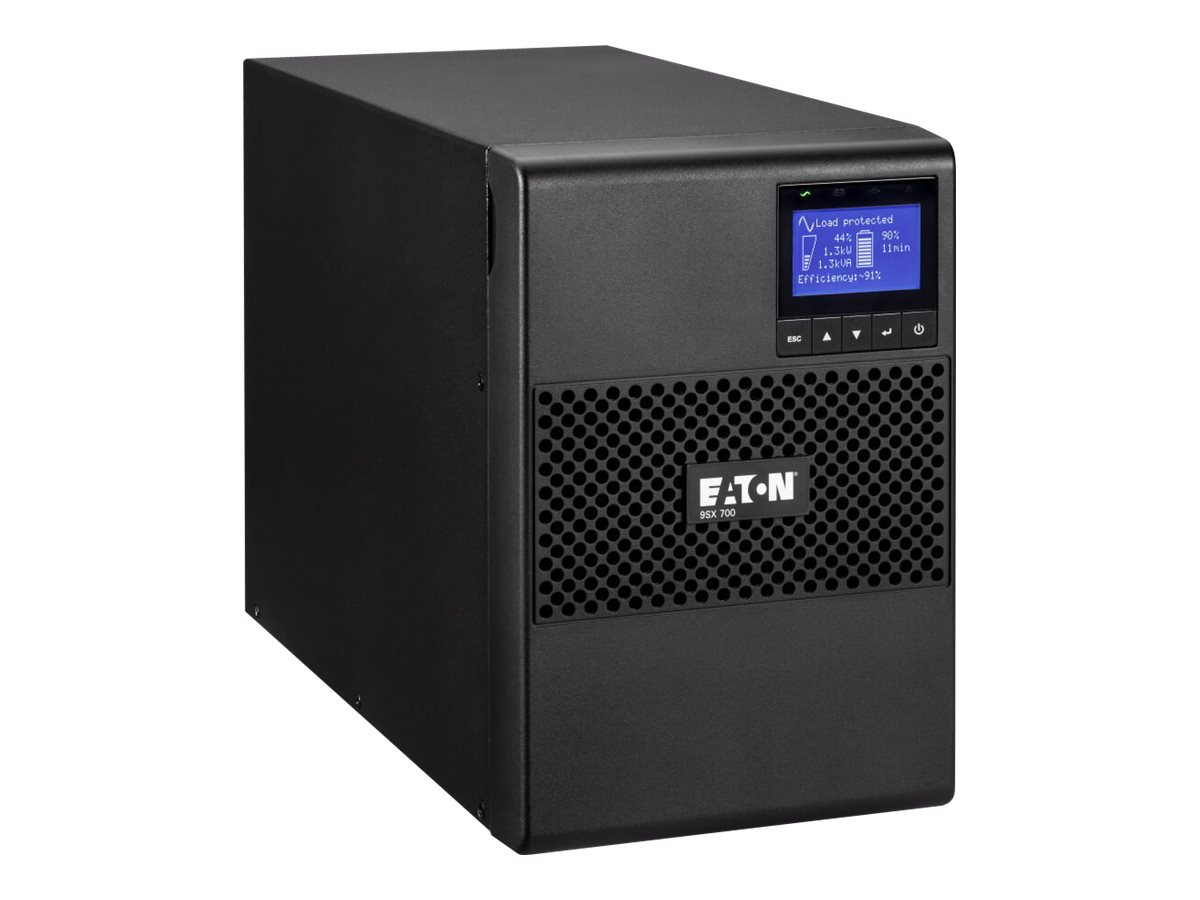

Eaton 9SX 9SX700I UPS 630Watt 700VA
€625,03
Eaton 9SX 9SX700I - UPS - AC 200/208/220/230/240 V - 630 Watt - 700 VA - RS-232, USB - output-stikforbindelser: 6 - PFC
Availability: In stock
Secure payment · Fast delivery
EAN:0743172090911Categories:, , Brand:
Eaton 9SX 9SX700I - UPS - AC 200/208/220/230/240 V - 630 Watt - 700 VA - RS-232, USB - output-stikforbindelser: 6 - PFC
Specifications
Specifications
| Produktbeskrivelse | Eaton 9SX 9SX700I - UPS - 630 Watt - 700 VA |
| Enhedstype | UPS - Power Factor Correction (PFC) - ekstern |
| Vægt | 11.5 kg |
| Indgangspænding | AC 200/208/220/230/240 V |
| Udgangspænding | AC 200/208/220/230/240 V |
| Strømkapacitet | 630 Watt / 700 VA |
| Input-stik | 1 x current IEC 60320 C14 10 A |
| Output-stikforbindelser | 6 x strøm IEC 60320 C13 10 A |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 16 cm x 35.7 cm x 25.2 cm |
| Producentgaranti | 2 year warranty |
| Device Type | UPS - Power Factor Correction (PFC) - external |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C14 10A |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 120 - 276 V |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Power Capacity | 630 Watt / 700 VA |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 6 x power IEC 60320 C13 10A |
| UPS Technology | On-line |
| Run Time (Up To) | 7.5 min at 500 Watts | 14 min at 300 Watts |
| Remote Management Interface | RS-232, USB |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | EPO (emergency power off) - mini terminal block | Relay output - mini terminal block |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-3, CSA C22.2, IEC 62040-2, KCC, cULus, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1, BIS |
| Features | Advance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test, temperature-compensated battery charging, 3-stage charging, double conversion, power measuring |
| Service & Support | Limited warranty - 2 years |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 40 dBA |
| Depth | 35.7 cm |
| Height | 25.2 cm |
| Weight | 11.5 kg |
| Width | 16 cm |
