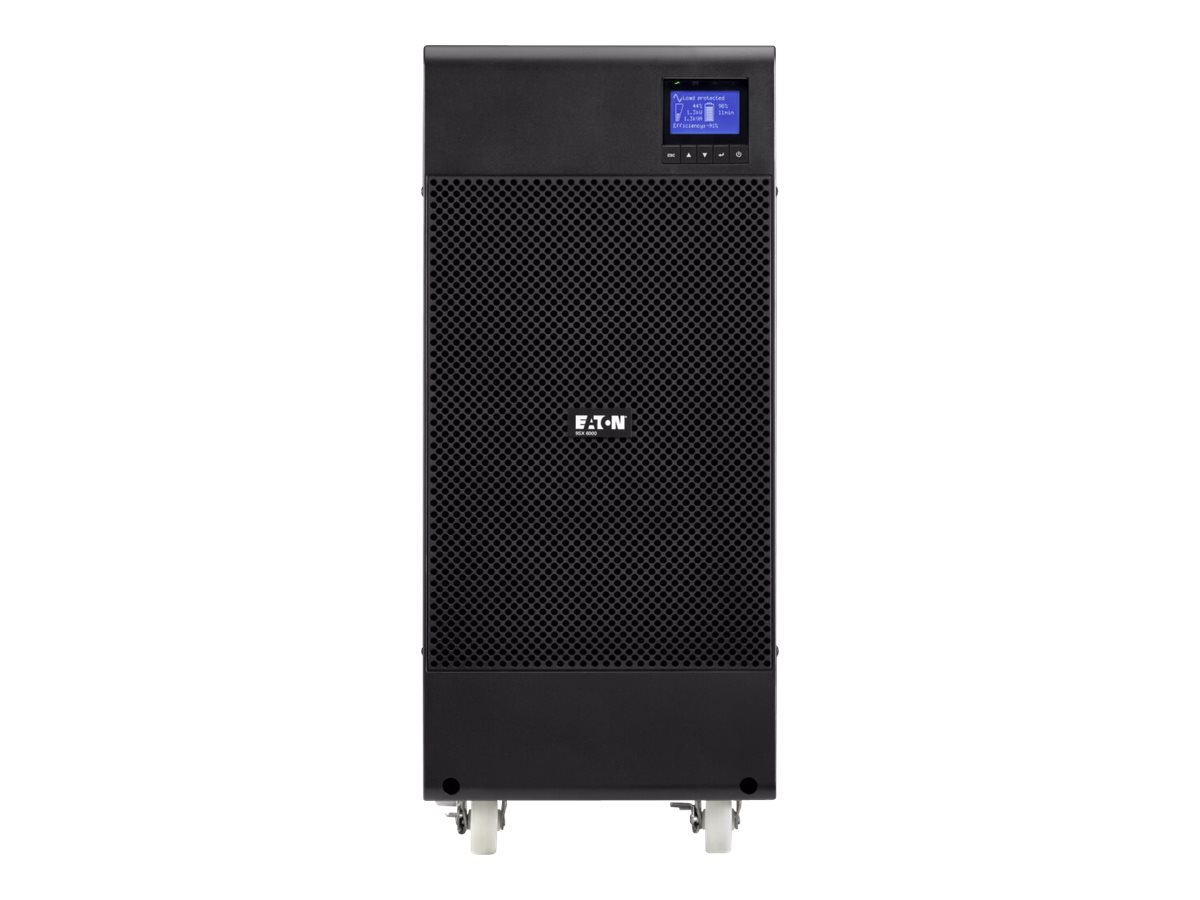

Eaton 9SX 9SX5KI UPS 4500Watt 5000VA
€2801,89
Eaton 9SX 9SX5KI - UPS - AC 200/208/220/230/240 V - 4500 Watt - 5000 VA - RS-232, USB - PFC
Availability: In stock
Secure payment · Fast delivery
EAN:0743172091000Categories:, , Brand:
Eaton 9SX 9SX5KI - UPS - AC 200/208/220/230/240 V - 4500 Watt - 5000 VA - RS-232, USB - PFC
Specifications
Specifications
| Produktbeskrivelse | Eaton 9SX 9SX5KI - UPS - 4500 Watt - 5000 VA |
| Enhedstype | UPS - Power Factor Correction (PFC) - ekstern |
| Vægt | 65.5 kg |
| Indgangspænding | AC 200/208/220/230/240 V |
| Udgangspænding | AC 200/208/220/230/240 V |
| Strømkapacitet | 4500 Watt / 5000 VA |
| Input-stik | Terminalblok |
| Output-stikforbindelser | Terminalblok |
| Batteri | Kan udvides |
| Driftstid (op til) | 19 min ved 70 % belastning |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 24.4 cm x 54.2 cm x 57.5 cm |
| Producentgaranti | 2 year warranty |
| Device Type | UPS - Power Factor Correction (PFC) - external |
| Efficiency | 98% hi-efficiency mode, 94% online mode |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Terminal block |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 120 - 276 V |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Power Capacity | 4500 Watt / 5000 VA |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | Terminal block |
| UPS Technology | On-line |
| Run Time (Up To) | 19 min at 70% load | 30 min at half load | 2 min at 110% load | 1 min at 125% load | 0.17 min at 150% load | 0.008 min at 150% load |
| Type | Expandable |
| Remote Management Interface | RS-232, USB |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) | 1 x USB - 4 pin USB Type B | 1 x EPO (emergency power off) | 1 x relay output |
| Compliant Standards | UL 1778, CB, IEC 62040-3, IEC 62040-2, FCC Part 15 A, EN 62040-2, EN 62040-3, IEC 62040-1, EN 62040-1 |
| Features | Advance Battery Management (ABM), LCD display, internal bypass, deep discharge protection, overload protection, cold-start function, automatic self-test, hot-swappable batteries, energy meter, temperature-compensated battery charging, 3-stage chargin |
| Software Included | Intelligent Power Software Suite |
| Service & Support | Limited warranty - 2 years |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 46 dB |
| Depth | 54.2 cm |
| Height | 57.5 cm |
| Weight | 65.5 kg |
| Width | 24.4 cm |
