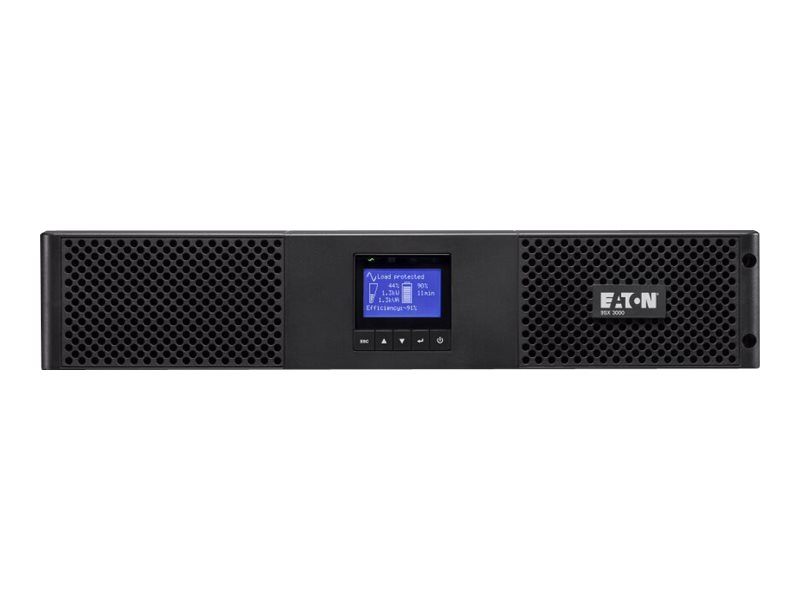

Eaton 9SX 9SX2000IR UPS
€1655,12
Eaton 9SX 9SX2000IR - UPS (rackversion) - AC 200/208/220/230/240 V - 1800 Watt - 2000 VA - RS-232, USB - output-stikforbindelser: 8 - PFC - 2U - 19""
Availability: In stock
Secure payment · Fast delivery
EAN:0743172090973Categories:, , Brand:
Eaton 9SX 9SX2000IR - UPS (rackversion) - AC 200/208/220/230/240 V - 1800 Watt - 2000 VA - RS-232, USB - output-stikforbindelser: 8 - PFC - 2U - 19""
Specifications
Specifications
| Produktbeskrivelse | Eaton 9SX 9SX2000IR - UPS - 1800 Watt - 2000 VA |
| Enhedstype | UPS - Power Factor Correction (PFC) - rackversion |
| Rackstørrelse | 19" - 2U |
| Vægt | 26.5 kg |
| Indgangspænding | AC 200/208/220/230/240 V |
| Udgangspænding | AC 200/208/220/230/240 V |
| Strømkapacitet | 1800 Watt / 2000 VA |
| Input-stik | 1 x power IEC 60320 C20 |
| Output-stikforbindelser | 8 x strøm IEC 60320 C13 10 A |
| Batteri | Kan udvides |
| Netværk | RS-232, USB |
| Dimensioner (B x D x H) | 43.8 cm x 60.8 cm x 8.65 cm |
| Producentgaranti | 2 year warranty |
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 140 - 276 V |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Power Capacity | 1800 Watt / 2000 VA |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 10A |
| UPS Technology | On-line |
| Run Time (Up To) | 8 min at 1200 Watts |
| Type | Expandable |
| Remote Management Interface | RS-232, USB |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | EPO (emergency power off) - mini terminal block | Relay output - mini terminal block |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-3, CSA C22.2, IEC 62040-2, cULus, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1 |
| Features | Advance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test, temperature-compensated battery charging, 3-stage charging, double conversion, power measuring |
| Service & Support | Limited warranty - 2 years |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dB |
| Depth | 60.8 cm |
| Height | 8.65 cm |
| Weight | 26.5 kg |
| Width | 43.8 cm |
