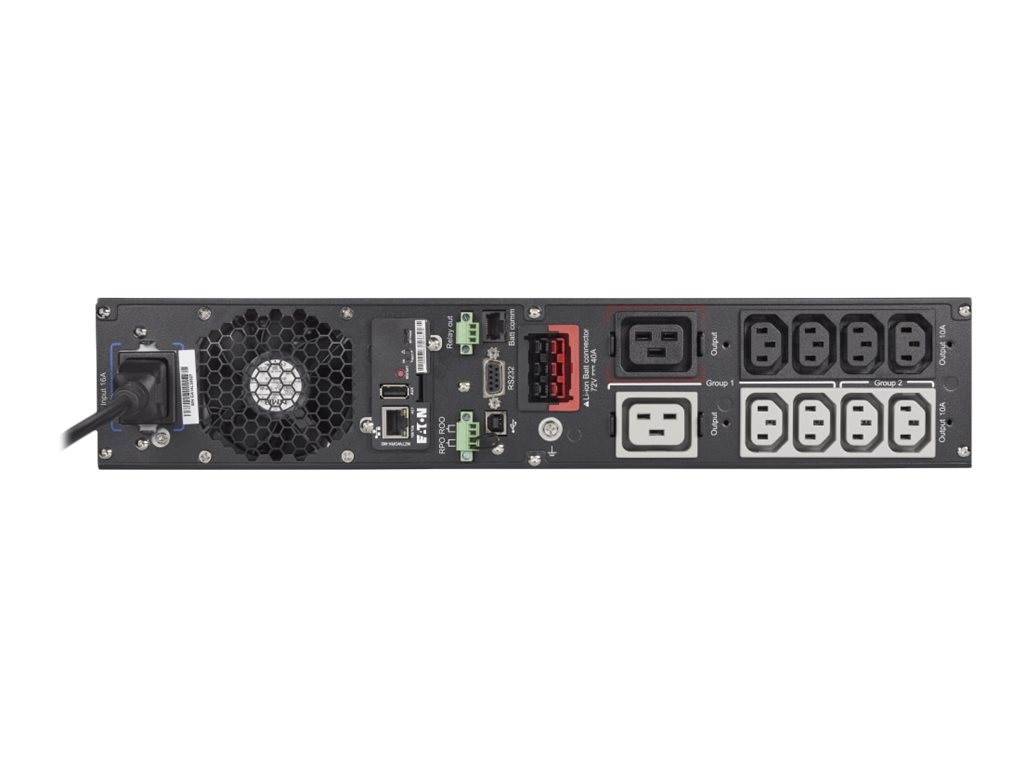

Eaton 9PX Lithium-ion UPS
€5255,37
Eaton 9PX Lithium-ion - Netpack - UPS (stativ-monterbar / ekstern) - AC 200/208/220/230/240 V - 2400 Watt - 3000 VA - 1-faset - RS-232, USB, Ethernet 10/100/1000 - output-stikforbindelser: 10 - 2U - 19"" - sort, sølv
Availability: In stock
Secure payment · Fast delivery
EAN:0743172105851Categories:, , Brand:
Eaton 9PX Lithium-ion - Netpack - UPS (stativ-monterbar / ekstern) - AC 200/208/220/230/240 V - 2400 Watt - 3000 VA - 1-faset - RS-232, USB, Ethernet 10/100/1000 - output-stikforbindelser: 10 - 2U - 19"" - sort, sølv
Specifications
Specifications
| Produktbeskrivelse | Eaton 9PX Lithium-ion - Netpack - UPS - 2400 Watt - 3000 VA |
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rackstørrelse | 19" - 2U |
| Vægt | 20.88 kg |
| Indgangskabler | 1-faset |
| Indgangspænding | AC 200/208/220/230/240 V |
| Udgangspænding | AC 200/208/220/230/240 V ± 1% |
| Strømkapacitet | 2400 Watt / 3000 VA |
| Input-stik | 1 x power IEC 60320 C20 |
| Output-stikforbindelser | 8 x power IEC 60320 C13<br>2 x strøm IEC 60320 C19 |
| Batteri | Litium-ion kan udvides |
| Driftstid (op til) | 10 min ved fuld belastning |
| Netværk | RS-232, USB, Ethernet 10/100/1000 |
| Protokol til fjernadministration | SNMP |
| Udstyr inkluderet | Tårnstander |
| Farve | Sort, sølv |
| Dimensioner (B x D x H) | 44 cm x 60.5 cm x 8.65 cm |
| Miljømæssige standarder | ENERGY STAR |
| Producentgaranti | 5 year warranty |
| Color | Black, silver |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Efficiency | 98% hi-efficiency mode, 94% online mode |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 100 - 276 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 200/208/220/230/240 V ± 1% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2400 Watt / 3000 VA |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details | 8 x power IEC 60320 C13 | 2 x power IEC 60320 C19 |
| Total Harmonic Distortion (THD) | 3 % |
| UPS Technology | On-line |
| Features | LCD display, internal bypass, automatic shut down, double conversion |
| Run Time (Up To) | 10 min at full load | 20 min at half load | 68 min at 300 Watts | 46 min at 500 Watts | 30 min at 800 Watts | 14 min at 1800 Watts |
| Technology | Lithium ion |
| Type | Expandable |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | 1 x remote power (on/off) - terminal block | 1 x remote power off - terminal block | 1 x relay output - 3 pin terminal block | 1 x management (Gigabit Ethernet) |
| Cables Included | Serial cable - external | USB cable - external | 2 x power cable - external | Power cable 1.8 m |
| Compliant Standards | FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, CSA 22.2, EN 62040-2, EAC, IEC 62040-1, EN 62040-1, UL 2900-1, IEC 62443-4-2 |
| Included Accessories | Tower stand |
| Rack Mounting Kit | Included |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 5 years |
| Humidity Range Operating | 0 - 96% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 40 dB |
| Depth | 60.5 cm |
| Height | 8.65 cm |
| Weight | 20.88 kg |
| Width | 44 cm |
