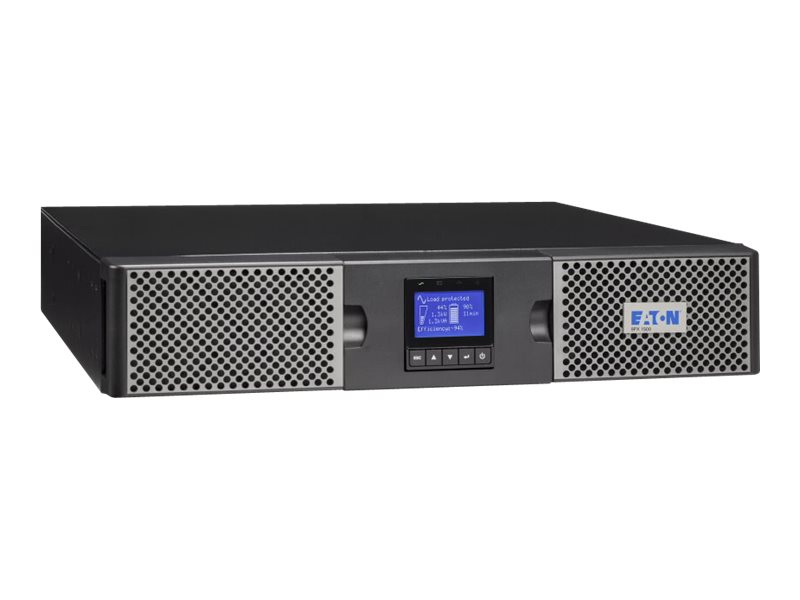

Eaton 9PX 9PX1000IRT2U UPS
€1052,45
Eaton 9PX 9PX1000IRT2U - UPS (stativ-monterbar / ekstern) - AC 200/208/220/230/240 V - 1000 Watt - 1000 VA - 7 At - RS-232, USB - output-stikforbindelser: 8 - 2U
Availability: In stock
Secure payment · Fast delivery
EAN:0743172081407Categories:, , Brand:
Eaton 9PX 9PX1000IRT2U - UPS (stativ-monterbar / ekstern) - AC 200/208/220/230/240 V - 1000 Watt - 1000 VA - 7 At - RS-232, USB - output-stikforbindelser: 8 - 2U
Specifications
Specifications
| Produktbeskrivelse | Eaton 9PX 9PX1000IRT2U - UPS - 1000 Watt - 1000 VA |
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rackstørrelse | 2U |
| Indgangspænding | AC 200/208/220/230/240 V |
| Udgangspænding | AC 200/208/220/230/240 V ± 1% |
| Strømkapacitet | 1000 Watt / 1000 VA |
| Input-stik | 1 x power IEC 60320 C14 |
| Output-stikforbindelser | 1 x current IEC 60320 C14<br>8 x current IEC 60309 10A |
| Batteri | Blysyre kan udvides - 7 At |
| Antal batterier | 4 |
| Netværk | RS-232, USB |
| Udstyr inkluderet | Tårnstander |
| Miljømæssige standarder | ENERGY STAR |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Circuit Protection | Fuse |
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 176 - 276 V |
| Output Voltage | AC 200/208/220/230/240 V ± 1% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1000 Watt / 1000 VA |
| Power Output Connectors Details | 1 x power IEC 60320 C14 | 8 x power IEC 60309 10A |
| Total Harmonic Distortion (THD) | 3 % |
| UPS Technology | On-line |
| Capacity | 7 Ah |
| Features | Audible alarm, LCD display, internal bypass, overload protection, cold-start function |
| Quantity | 4 |
| Technology | Lead acid |
| Type | Expandable |
| Voltage Provided | 48 V |
| Remote Management Interface | RS-232, USB |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) | 1 x management (USB) - 4 pin USB Type B | EPO (emergency power off) |
| Cables Included | Serial cable - external | USB cable - external |
| Compliant Standards | CISPR 22 Class B, ICES-003, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1778, FCC Part 15 B, IEC 62040-3, IEC 62040-2, cULus, KC, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1 |
| Included Accessories | Tower stand |
| Rack Mounting Kit | Included |
| ENERGY STAR | Yes |
| Humidity Range Operating | 0 - 96% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 47 dBA |
