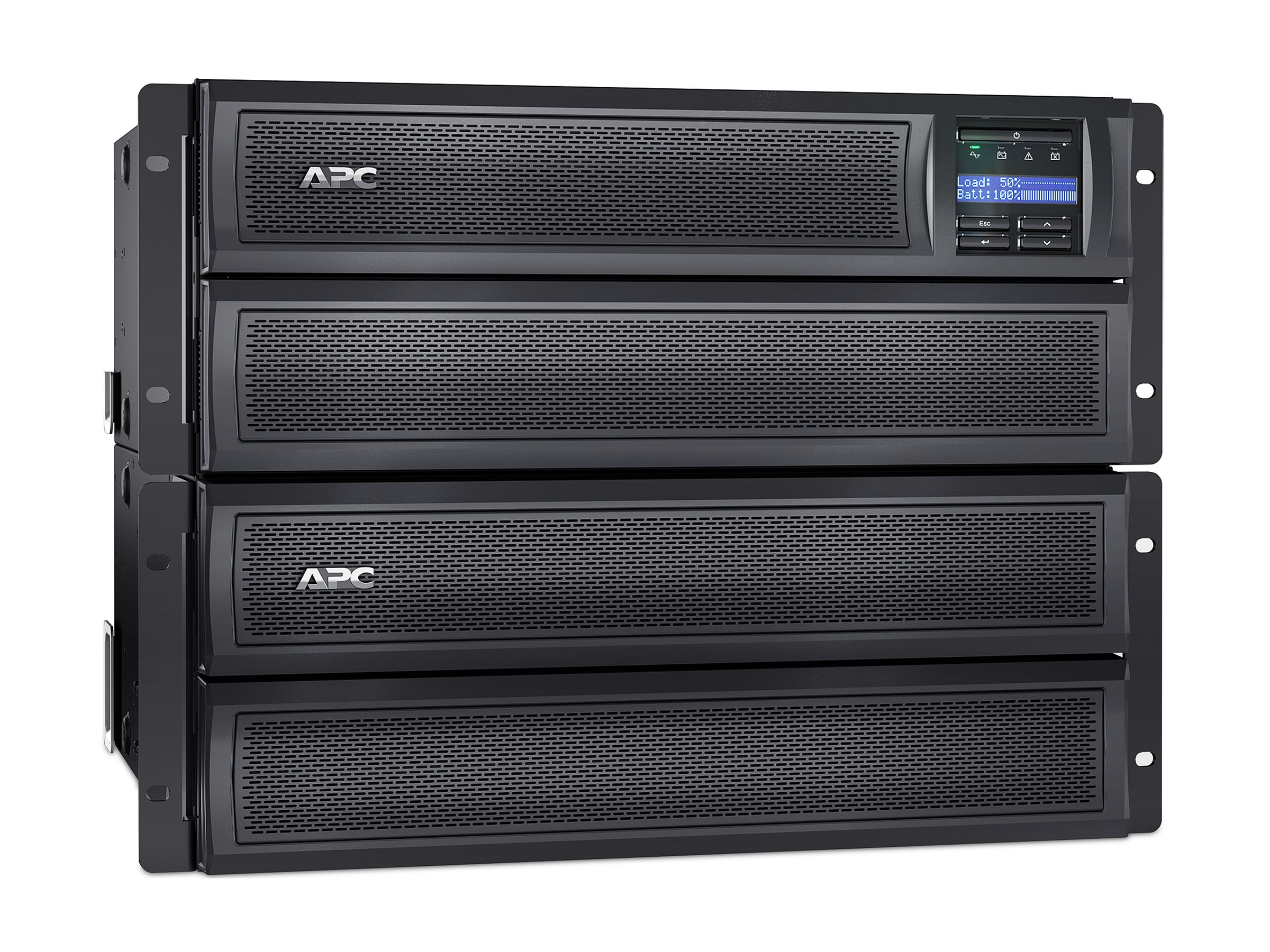

APC Smart-UPS X 3000 Rack/Tower LCD UPS
This APC from Schneider Electric Smart-UPS X is a high-performance Uninterruptible Power Supply (UPS). It protects electronic equipment against power interruptions, partial power outages and fluctuations in current strength, small fluctuations in current strength and major disturbances. The UPS also provides battery backup until the power from the mains supply returns to a safe level or until the batteries are completely discharged. This product is part of the Smart-UPS series, intelligent and efficient network power protection, from basic to scalable runtime. This premium and reliable 3000 VA/2700 W line interactive UPS delivers clean sine wave and scalable runtime for critical applications. The convertible 4U rack/tower SMX has an optional network management card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS comes with replaceable batteries (up to 10) which provide more run time during extended power outages. It comes with BS1363A Briti
Availability: In stock
This APC from Schneider Electric Smart-UPS X is a high-performance Uninterruptible Power Supply (UPS). It protects electronic equipment against power interruptions, partial power outages and fluctuations in current strength, small fluctuations in current strength and major disturbances. The UPS also provides battery backup until the power from the mains supply returns to a safe level or until the batteries are completely discharged. This product is part of the Smart-UPS series, intelligent and efficient network power protection, from basic to scalable runtime. This premium and reliable 3000 VA/2700 W line interactive UPS delivers clean sine wave and scalable runtime for critical applications. The convertible 4U rack/tower SMX has an optional network management card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS comes with replaceable batteries (up to 10) which provide more run time during extended power outages. It comes with BS1363A British, IEC 320 C20, Schuko CEE 7/EU1-16P input, 8x IEC 320 C13 and 2x IEC 320 C19 outlets and 2x IEC jumper cable. The UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 483 mm (D) x 432 mm (H) x 178 mm (W) and weighs 38.64 kg. Ideal for server rooms, network cabinets, enterprise VoIP, data storage and NAS (Network Attached Storage) as well as small data centers. It complies with EAC, CE, IRAM, RCM, TISI and VDE, EN/IEC -1/-2.
Specifications
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rack size | 4U |
| Weight | 38.64 kg |
| Input cables | 1-faset |
| Input voltage | AC 208/230 V |
| Output voltage | AC 208/230 V |
| Power capacity | 2700 watt / 3000 VA |
| Input-stik | 1 x power IEC 60320 C20 |
| Output-stikforbindelser | 8 x power IEC 60320 C13 2 x IEC socket 2 x power IEC 60320 C19 |
| Batteri | Blysyre |
| Antal batterier | 1 |
| Driftstid (op til) | 6.3 min ved fuld belastning |
| Network | RS-232, USB |
| Farve | Sort |
| Pristype | APC Take-Back |
| Dimensioner (B x D x H) | 17.8 cm x 48.3 cm x 43.2 cm |
| Producentgaranti | 3 year warranty |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 4U |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.5% |
| Frequency Provided | 47 - 63 Hz |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 140 - 280 V |
| Output Voltage | AC 230 V 47 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2700 Watt / 3000 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 | 2 x power IEC 60320 C19 |
| Surge Energy Rating | 645 Joules |
| Surge Suppression | yes |
| UPS Technology | Line interactive |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) | 6.3 min at full load | 15.7 min at half load |
| Technology | Lead acid |
| Remote Management Interface | RS-232, USB |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces | 1 x USB | 1 x RS-232 | 1 x EPO (emergency power off) |
| Cables Included | Serial cable | USB cable | Power cable 1.83 m |
| Compliant Standards | CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH |
| Features | Audible alarm, LCD display, overload protection |
| Rack Mounting Kit | Included |
| Software Included | APC PowerChute Business Edition |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 2 years |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Depth | 48.3 cm |
| Height | 43.2 cm |
| Weight (2) | 38.64 kg |
| Width | 17.8 cm |
| Shipping Depth | 63.3 cm |
| Shipping Height | 33 cm |
| Shipping Weight | 47.73 kg |
| Shipping Width | 58.6 cm |
| Designed For | P/N: ACDC2513, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3140G, AR3 |
