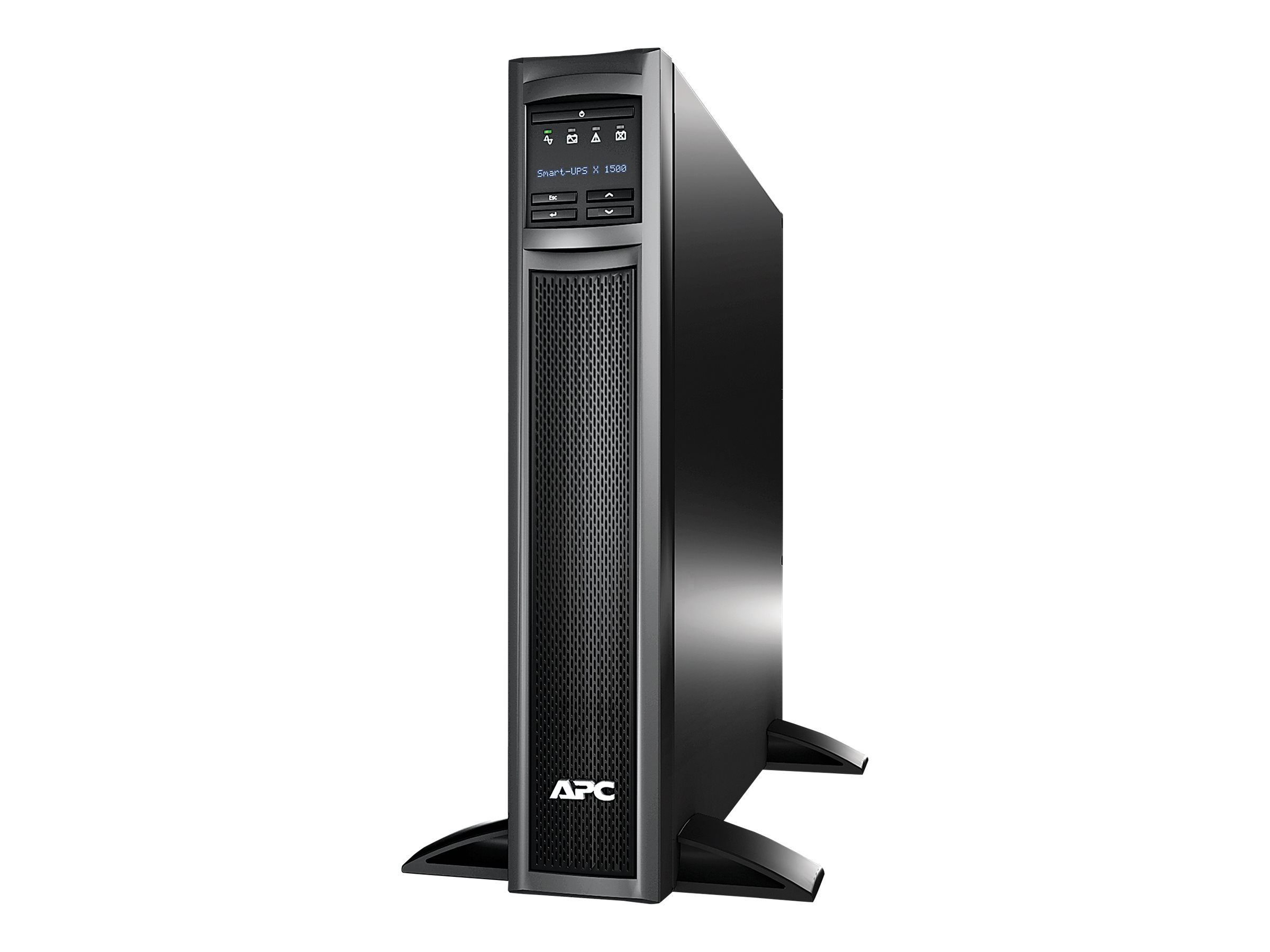

APC Smart-UPS X 1500 Rack/Tower LCD UPS
Smart-UPS is a high-performance power supply protection for protecting business-critical equipment. Smart-UPS is an online UPS that can be used either as a freestanding unit or as a rack mount. This product is part of the Smart-UPS series, intelligent and efficient network power protection, from basic to scalable runtime. This premium and reliable 1500 VA/1200 W line interactive UPS delivers pure sine wave and scalable runtime for critical applications. The convertible 2U rack/tower SMX has a pre-installed network management card in the Smart Slot for network-based monitoring and control of the UPS. PowerChute network shutdown provides hassle-free, unattended shutdown. The UPS has replaceable batteries (up to 10) that provide more run time during extended power outages. It comes with IEC 320 C14 input, 8 x IEC 320 C13 outputs and 2 x IEC jumper cables. The UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 490 mm (D) x 89 mm (H) x 432
Availability: In stock
Smart-UPS is a high-performance power supply protection for protecting business-critical equipment. Smart-UPS is an online UPS that can be used either as a freestanding unit or as a rack mount. This product is part of the Smart-UPS series, intelligent and efficient network power protection, from basic to scalable runtime. This premium and reliable 1500 VA/1200 W line interactive UPS delivers pure sine wave and scalable runtime for critical applications. The convertible 2U rack/tower SMX has a pre-installed network management card in the Smart Slot for network-based monitoring and control of the UPS. PowerChute network shutdown provides hassle-free, unattended shutdown. The UPS has replaceable batteries (up to 10) that provide more run time during extended power outages. It comes with IEC 320 C14 input, 8 x IEC 320 C13 outputs and 2 x IEC jumper cables. The UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 490 mm (D) x 89 mm (H) x 432 mm (W) and weighs 24.82 kg. Ideal for server rooms, network cabinets, enterprise VoIP, data storage and NAS (Network Attached Storage) as well as small data centers. It complies with C-Tick, CE, VDE and EAC, EN/IEC -1/-2.
Specifications
| Enhedstype | UPS - rackversion |
| Rack size | 2U |
| Weight | 24.8 kg |
| Input voltage | AC 230 V |
| Output voltage | AC 230 V |
| Power capacity | 1200 watt / 1500 VA |
| Input-stik | Power IEC 60320 C14 |
| Output-stikforbindelser | 8 x power IEC 60320 C13 |
| Batteri | Blysyre |
| Batteri formfaktor | Indstiksmodul |
| Antal batterier | 1 |
| Driftstid (op til) | 5.8 min ved fuld belastning |
| Network | Ethernet, RS-232, USB |
| Farve | Sort |
| Dimensioner (B x D x H) | 8.9 cm x 49 cm x 43.2 cm |
| Producentgaranti | 3 year warranty |
| Designet for | P/N: AR106SH6, AR106V, AR106VI, AR109SH6, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3340G, AR3357X674, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A, SMX48RMBP2US |
| Battery Enclosure Type | Plug-in module |
| Color | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 47 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60320 C14 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 160 - 285 V |
| Input Voltage Range (Adjustable) | AC 151 - 302 V |
| Output Voltage | AC 230 V 47 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1200 Watt / 1500 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Surge Energy Rating | 645 Joules |
| Surge Suppression | yes |
| UPS Technology | Line interactive |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) | 5.8 min at full load | 17.2 min at half load |
| Technology | Lead acid |
| Remote Management Interface | Ethernet, RS-232, USB |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Interfaces | 1 x management (RS-232) | 1 x management (USB) | 1 x EPO (emergency power off) | 1 x management (Ethernet) - RJ-45 |
| Cables Included | Serial cable - external | USB cable - external | Power cable - integrated - 1.8 m |
| Compliant Standards | C-Tick, UL 1449, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1 |
| Features | Audible alarm, emergency power off, LCD display |
| Rack Mounting Kit | Included |
| Software Included | APC PowerChute Business Edition |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 2 years |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 40 dBA |
| Depth | 49 cm |
| Height | 43.2 cm |
| Weight (2) | 24.8 kg |
| Width | 8.9 cm |
| Shipping Depth | 62 cm |
| Shipping Height | 58.9 cm |
| Shipping Weight | 30 kg |
| Shipping Width | 24.6 cm |
| Designed For | P/N: ACDC2513, AR106SH6, AR106V, AR106VI, AR109SH6, AR112SH6, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3003, AR3003SP, AR3006, AR3006SP, AR3100G, AR3100TAA, AR3100W, AR3103, AR3103S |
