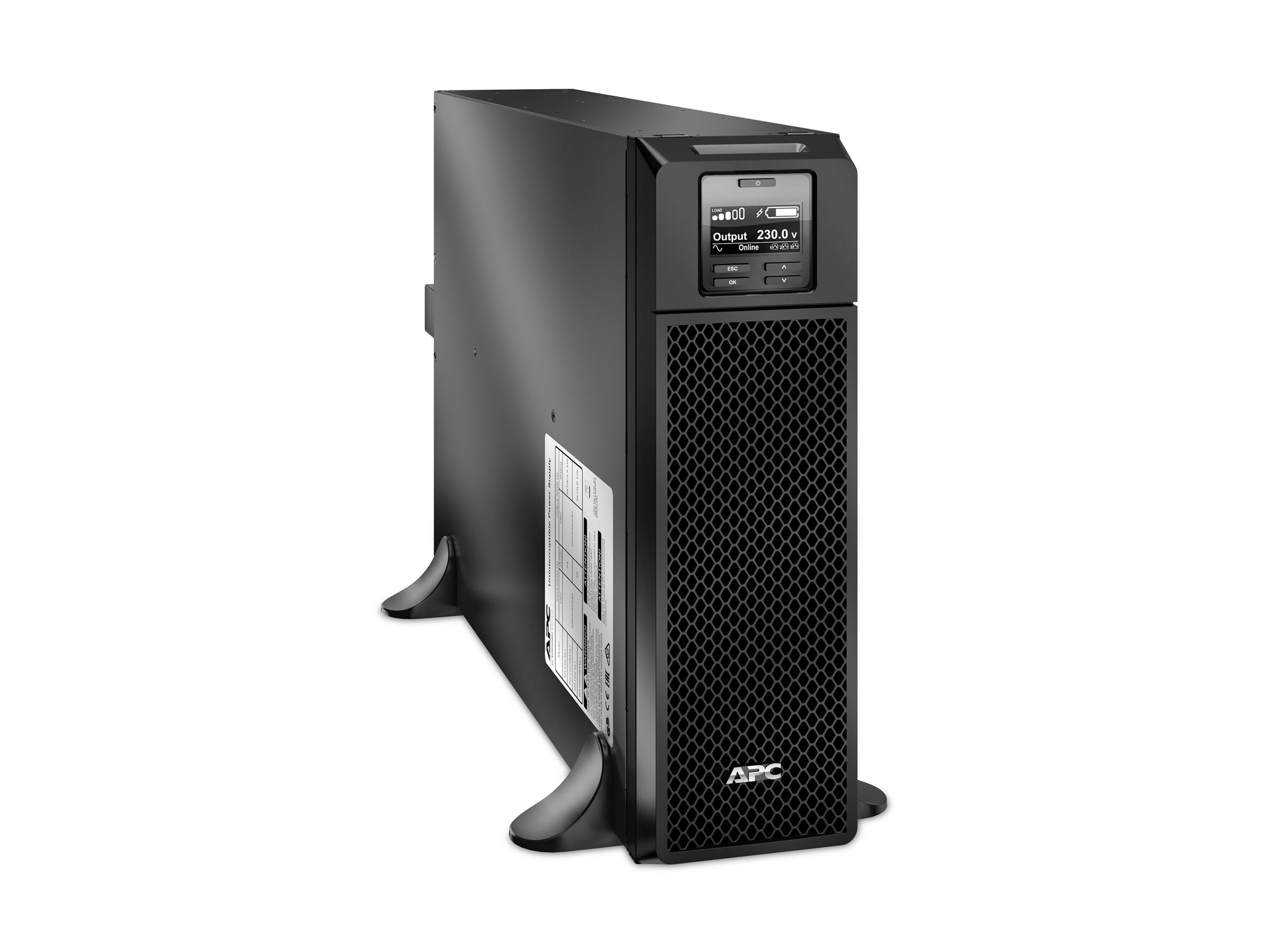

APC Smart-UPS SRT 5000VA UPS
This APC Smart-UPS is designed for IT staff or network administrators to maintain uptime and business continuity. This 5 kVA online UPS unit delivers pure sine wave power and extended run time to support critical electronics during power outages. It is supplied with hard 3-wire input (1P+N+E), 6x IEC 320 C13 and 4x IEC 320 C19 outputs and 2x IEC jumper cables. The UPS has an integrated network management card for network-based monitoring and control of the UPS. The UPS comes with PowerChute, a network shutdown that provides efficient shutdown of physical servers, virtual machines and HCI clusters. It has an additional SmartSlot for optional accessory cards, such as I/O card for dry contact. The UPS can be connected to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Availability: In stock
This APC Smart-UPS is designed for IT staff or network administrators to maintain uptime and business continuity. This 5 kVA online UPS unit delivers pure sine wave power and extended run time to support critical electronics during power outages. It is supplied with hard 3-wire input (1P+N+E), 6x IEC 320 C13 and 4x IEC 320 C19 outputs and 2x IEC jumper cables. The UPS has an integrated network management card for network-based monitoring and control of the UPS. The UPS comes with PowerChute, a network shutdown that provides efficient shutdown of physical servers, virtual machines and HCI clusters. It has an additional SmartSlot for optional accessory cards, such as I/O card for dry contact. The UPS can be connected to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Specifications
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rack size | 3U |
| Weight | 54.55 kg |
| Input voltage | AC 230 V |
| Output voltage | AC 230 V ± 3% |
| Power capacity | 4500 watt / 5000 VA |
| Input-stik | 1 x hardwire 3-wire (1PH + N + G) |
| Output-stikforbindelser | 6 x power IEC 60320 C13 4 x power IEC 60320 C19 2 x IEC connection |
| Batteri | Blysyre |
| Driftstid (op til) | 4 min ved fuld belastning |
| Network | Ethernet 10/100, USB |
| Farve | Sort |
| Dimensioner (B x D x H) | 13 cm x 71.9 cm x 43.2 cm |
| Producentgaranti | 3 year warranty |
| Designet for | P/N: SRT192RMBPM |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 3U |
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | 1 x hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 4500 Watt / 5000 VA |
| Power Output Connectors Details | 6 x power IEC 60320 C13 | 4 x power IEC 60320 C19 | 2 x IEC connector |
| Surge Energy Rating | 480 Joules |
| Surge Suppression | yes |
| UPS Technology | On-line |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) | 4 min at full load | 11.8 min at half load |
| Technology | Lead acid |
| Remote Management Interface | Ethernet 10/100, USB |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces | 1 x management (Ethernet) - RJ-45 | 1 x management (USB) - 4 pin USB Type B | 1 x EPO (emergency power off) | 1 x serial - RJ-45 |
| Compliant Standards | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
| Software Included | APC PowerChute Business Edition |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 2 years |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Depth | 71.9 cm |
| Height | 43.2 cm |
| Weight (2) | 54.55 kg |
| Width | 13 cm |
| Shipping Depth | 96 cm |
| Shipping Height | 33 cm |
| Shipping Weight | 63.5 kg |
| Shipping Width | 61 cm |
| Designed For | P/N: SRT1000RMXLA, SRT1000XLA, SRT10KRMXLT-10KTF, SRT10KRMXLT30, SRT10KRMXLT-5KTF2, SRT10KRMXLT-IEC, SRT10KXLT, SRT10KXLT30, SRT10KXLT-5KTF2, SRT10KXLT-IEC, SRT10KXLTUS, SRT1500RMXLA-NC, SRT1500XLA, SRT192BP, SRT192BPUS, SRT192RMBP, SRT192RMBP2, SRT1 |
