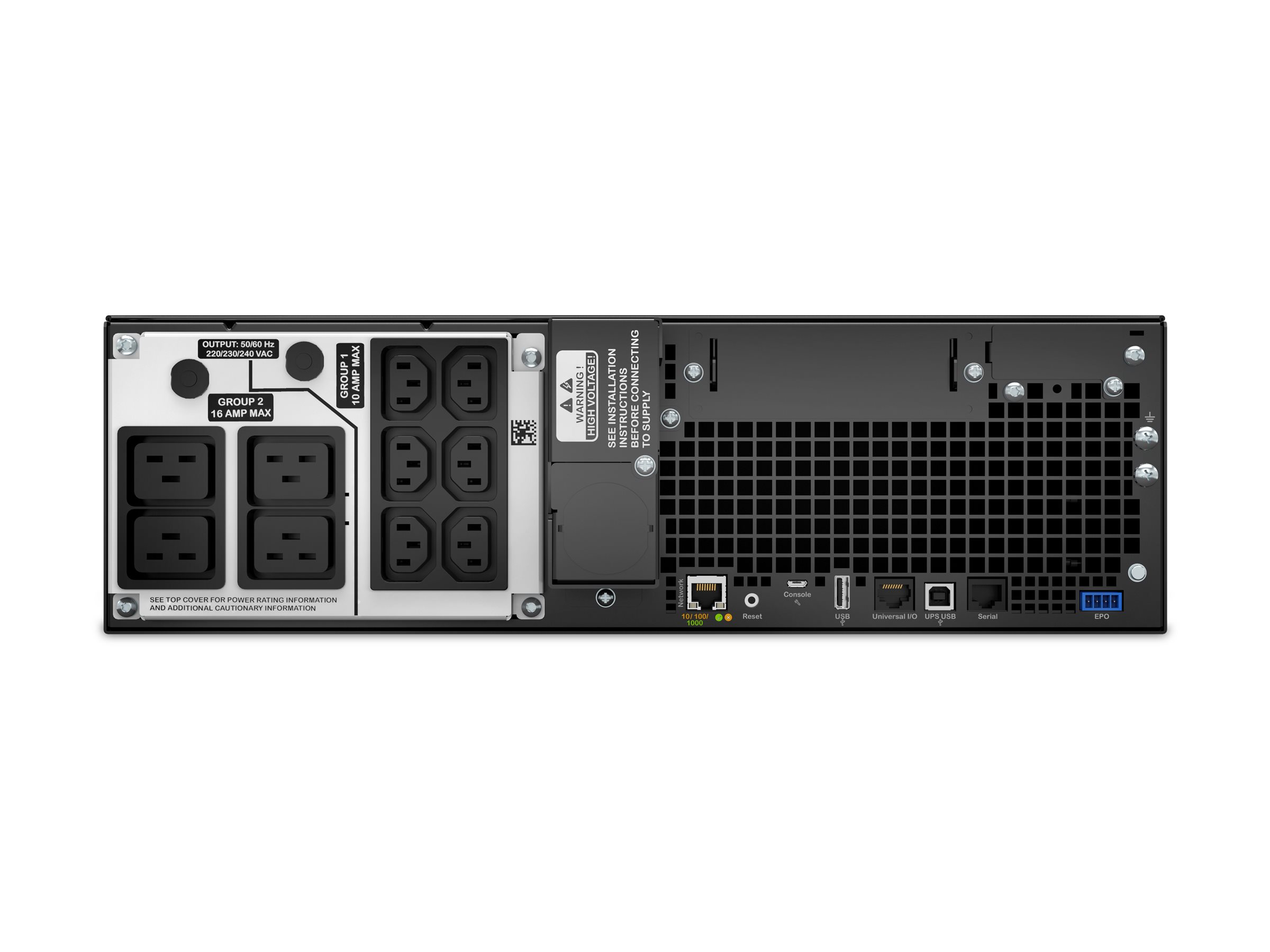

APC Smart-UPS SRT 5000VA RM UPS
Text and mime charts showing operating states, system parameters and alarms. Connect the device to a network using a 10 or 100 BaseT connection.Patent-pending operating mode that bypasses unused electrical components under good current conditions to achieve very high operating efficiency without sacrificing any protection. Provides early warning of failure analysis on batteries so that preventive maintenance can be carried out in time. This APC Smart-UPS is designed for IT staff or network administrators to maintain uptime and business continuity. This online 5 kVA 3U rack-mount UPS unit delivers pure sine wave and extended runtime to support critical electronics during power outages. It comes with hardwire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outputs and 2x IEC jumper cables. The UPS has an integrated network management card for network-based monitoring and control of the UPS. The UPS comes with PowerChute, a network shutdown that provides efficient shutdown of phy
Availability: In stock
Text and mime charts showing operating states, system parameters and alarms. Connect the device to a network using a 10 or 100 BaseT connection.Patent-pending operating mode that bypasses unused electrical components under good current conditions to achieve very high operating efficiency without sacrificing any protection. Provides early warning of failure analysis on batteries so that preventive maintenance can be carried out in time. This APC Smart-UPS is designed for IT staff or network administrators to maintain uptime and business continuity. This online 5 kVA 3U rack-mount UPS unit delivers pure sine wave and extended runtime to support critical electronics during power outages. It comes with hardwire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outputs and 2x IEC jumper cables. The UPS has an integrated network management card for network-based monitoring and control of the UPS. The UPS comes with PowerChute, a network shutdown that provides efficient shutdown of physical servers, virtual machines and HCI clusters. It has an additional SmartSlot for optional accessory cards, such as I/O card for dry contact. The UPS can be connected to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty.
Specifications
| Enhedstype | UPS - rackversion |
| Rack size | 3U |
| Weight | 54.55 kg |
| Input voltage | AC 230 V |
| Output voltage | AC 230 V ± 3% |
| Power capacity | 4500 watt / 5000 VA |
| Input-stik | Hardwire 3-wire (1PH + N + G) |
| Output-stikforbindelser | 6 x power IEC 60320 C13 4 x power IEC 60320 C19 2 x IEC connection |
| Batteri | Blysyre |
| Driftstid (op til) | 4 min ved fuld belastning |
| Network | USB |
| Farve | Sort |
| Dimensioner (B x D x H) | 43.2 cm x 71.9 cm x 13 cm |
| Producentgaranti | 3 year warranty |
| Designet for | P/N: ACDC2513, AR2407, AR2480, AR2487, AR2487G, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, NBWL0356A |
| Color | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 3U |
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | Hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 4500 Watt / 5000 VA |
| Power Output Connectors Details | 6 x power IEC 60320 C13 | 4 x power IEC 60320 C19 | 2 x IEC connector |
| Surge Energy Rating | 480 Joules |
| Surge Suppression | yes |
| UPS Technology | On-line |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) | 4 min at full load | 11.8 min at half load |
| Technology | Lead acid |
| Remote Management Interface | USB |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces | 1 x serial - RJ-45 | 1 x management (USB) - 4 pin USB Type B | 1 x EPO (emergency power off) |
| Compliant Standards | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
| Software Included | APC PowerChute Business Edition |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 2 years |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Depth | 71.9 cm |
| Height | 13 cm |
| Weight (2) | 54.55 kg |
| Width | 43.2 cm |
| Shipping Depth | 96 cm |
| Shipping Height | 33 cm |
| Shipping Weight | 63.6 kg |
| Shipping Width | 61 cm |
| Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR2407, AR2480, AR2487, AR2487G, AR2507, AR2580, AR2587, AR300 |
