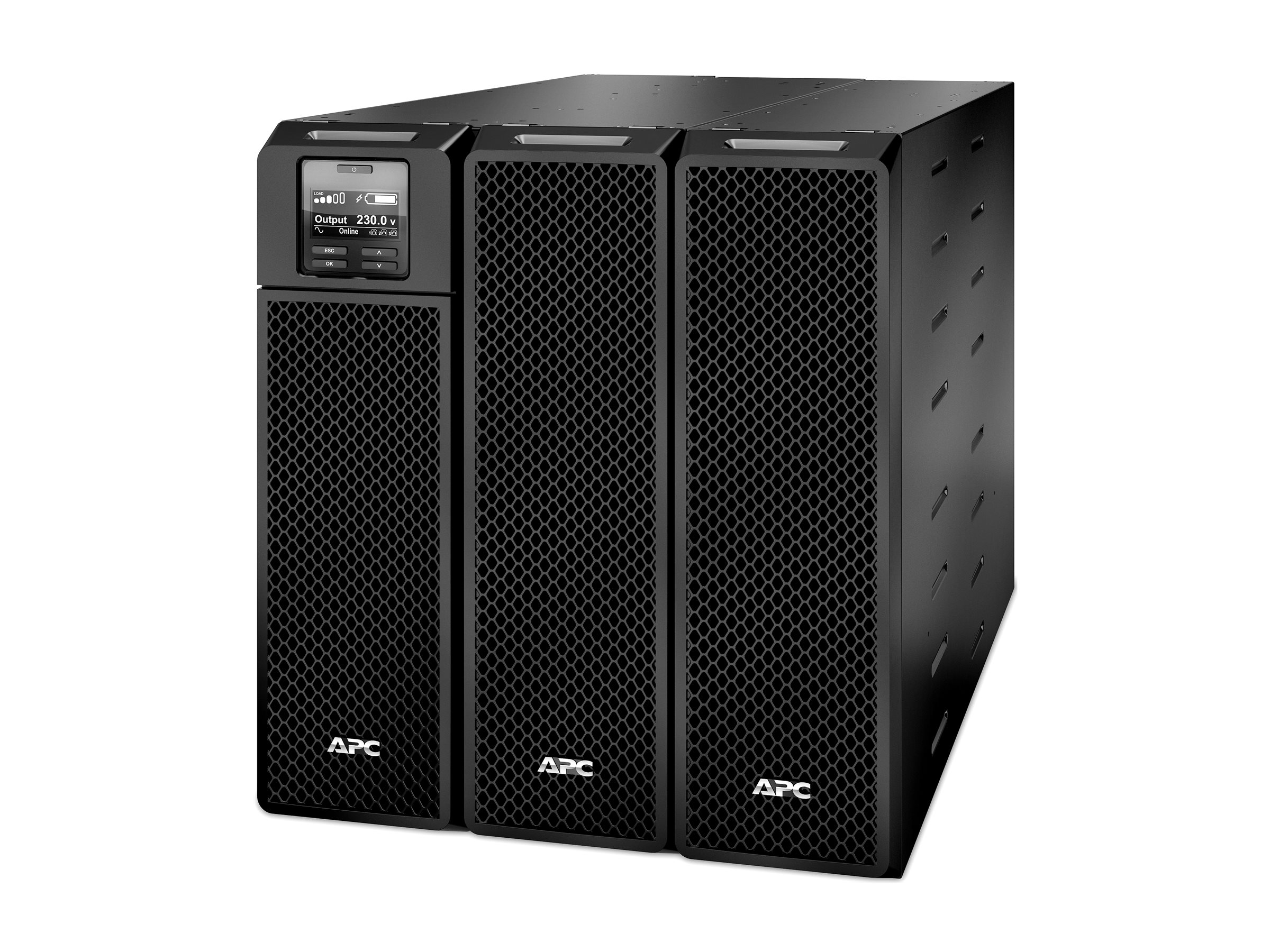

APC Smart-UPS SRT 10000VA UPS
These APC Smart-ups are designed for IT professionals or network administrators to maintain uptime and business continuity. This 10 kVA online UPS unit delivers pure sine wave power and extended runtime to support critical electronics during power outages. It comes with hard 3-wire(1P+N+E)/5-cable(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outputs and 3x IEC jumper cables. The UPS has an integrated network management card for network-based monitoring and control of the UPS. The UPS comes with PowerChute, a network shutdown that provides efficient shutdown of physical servers, virtual machines and HCI clusters. It has an additional SmartSlot for optional accessory cards, such as I/O card for dry contact. The UPS can be connected to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Availability: In stock
These APC Smart-ups are designed for IT professionals or network administrators to maintain uptime and business continuity. This 10 kVA online UPS unit delivers pure sine wave power and extended runtime to support critical electronics during power outages. It comes with hard 3-wire(1P+N+E)/5-cable(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outputs and 3x IEC jumper cables. The UPS has an integrated network management card for network-based monitoring and control of the UPS. The UPS comes with PowerChute, a network shutdown that provides efficient shutdown of physical servers, virtual machines and HCI clusters. It has an additional SmartSlot for optional accessory cards, such as I/O card for dry contact. The UPS can be connected to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Specifications
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rack size | 6U |
| Weight | 111.82 kg |
| Input cables | Trefaset / enfaset |
| Input voltage | AC 230/380/400/415 V |
| Output voltage | AC 230 V ± 3% |
| Power capacity | 10 kW / 10000 VA |
| Input-stik | 2 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Output-stikforbindelser | 6 x power IEC 60320 C13 3 x IEC socket 4 x power IEC 60320 C19 1 x hardwire 3-wire (HN + E) |
| Batteri | Blysyre |
| Driftstid (op til) | 3.8 min ved fuld belastning |
| Network | Ethernet 10/100, USB |
| Farve | Sort |
| Pristype | APC Take-Back |
| Dimensioner (B x D x H) | 26.3 cm x 71.5 cm x 43.2 cm |
| Producentgaranti | 3 year warranty |
| Designet for | P/N: SRT192BP2, SRT192BP2US |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 6U |
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 10 kW / 10000 VA |
| Power Output Connectors Details | 6 x power IEC 60320 C13 | 4 x power IEC 60320 C19 |
| Surge Energy Rating | 480 Joules |
| Surge Suppression | yes |
| UPS Technology | On-line |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) | 3.8 min at full load | 11.5 min at half load |
| Technology | Lead acid |
| Remote Management Interface | Ethernet 10/100, USB |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces | 1 x management (Ethernet) - RJ-45 | 1 x management (USB) - 4 pin USB Type B | 1 x EPO (emergency power off) | 1 x serial - RJ-45 |
| Compliant Standards | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
| Software Included | APC PowerChute Business Edition |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 2 years |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Depth | 71.5 cm |
| Height | 43.2 cm |
| Weight (2) | 111.82 kg |
| Width | 26.3 cm |
| Shipping Depth | 1 m |
| Shipping Height | 46.1 cm |
| Shipping Width | 60 cm |
| Designed For | P/N: SRT1000XLA, SRT10KRMXLT, SRT10KRMXLT-10KTF, SRT10KRMXLT30, SRT10KRMXLT-5KTF2, SRT10KRMXLT-IEC, SRT10KXLT30, SRT10KXLT-5KTF2, SRT10KXLT-IEC, SRT10KXLTUS, SRT1500XLA, SRT192BP, SRT192BPUS, SRT192RMBP, SRT192RMBP2, SRT192RMBP2US, SRT192RMBPM, SRT19 |
