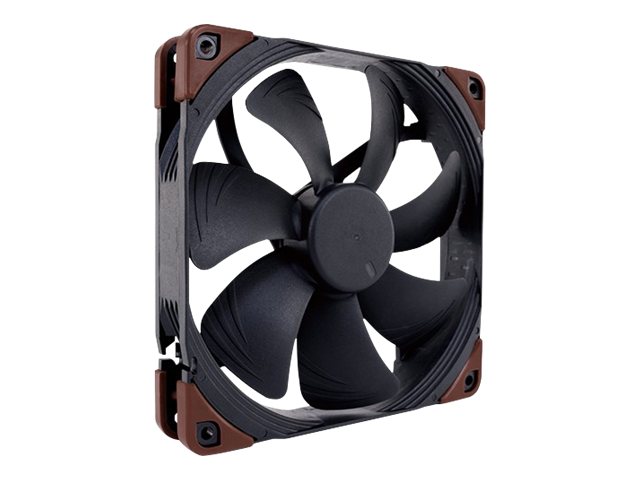

Noctua IndustrialPPC NF-A14 Fan 1-pack 140 mm
NF-A14 industrial PPC (Protected Performance Cooling) is developed for industrial heavy duty applications that require enhanced cooling performance and advanced protection against intrusion, and is a robust high-speed version. Thanks to the exceptional aerodynamic efficiency of the NF-A14 design and the use of a new three-phase motor, the industrial PPC version provides superior airflow and pressure capacity, while keeping the noise level and power consumption at a moderate level compared to comparable high-speed fans. The fiberglass-reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, and the recognized SSO2 bearing technology guarantees a long-term MTBF. The NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate reliability.
Availability: In stock
NF-A14 industrial PPC (Protected Performance Cooling) is developed for industrial heavy duty applications that require enhanced cooling performance and advanced protection against intrusion, and is a robust high-speed version. Thanks to the exceptional aerodynamic efficiency of the NF-A14 design and the use of a new three-phase motor, the industrial PPC version provides superior airflow and pressure capacity, while keeping the noise level and power consumption at a moderate level compared to comparable high-speed fans. The fiberglass-reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, and the recognized SSO2 bearing technology guarantees a long-term MTBF. The NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate reliability.
Specifications
| Product type | Insert with fan |
| Fan diameter | 140 mm |
| Fan height | 25 mm |
| Blower with ball bearing | SSO2 leje |
| Omdrejningshastighed | 800-3000 o/min |
| Air flow | 156,5 cfm |
| Noise level | 41.3 dBA |
| Stik | 4-pin fan connector |
| Rated Voltage | 12 V |
| Egenskaber | Puls-bredde modulation (PWM) support, Advanced Acoustic Optimisation (AAO), flow-accelerationskanaler, integrerede anti-vibrationspuder |
| Product material | Fiberglass reinforced polyamide |
| Dimensioner (B x D x H) | 14 cm x 14 cm x 2.5 cm |
| Producentgaranti | 6 year warranty |
| Depth | 14 cm |
| Finish | Lacquered |
| Height | 2.5 cm |
| Product Material | Fiberglass-reinforced polyamide |
| Product Type | Case fan |
| Width | 14 cm |
| Air Flow | 156.5 cfm |
| Air Pressure | 10.52 mm |
| Fan Bearing | SSO2 bearing |
| Fan Diameter | 140 mm |
| Fan Height | 25 mm |
| Features | Pulse-width modulation (PWM) support, Advanced Acoustic Optimisation (AAO), flow acceleration channels, integrated anti-vibration pads |
| Noise Level | 41.3 dBA |
| Power Connector | 4-pin fan connector |
| Power Consumption | 6.6 W |
| Rated Current | 0.55 A |
| Rotation Speed | 800-3000 rpm |
| Compliant Standards | IP52 |
| Mounting Kit | Included |
| MTBF | 150,000 hour(s) |
| Service & Support | Limited warranty: - 6 years |
