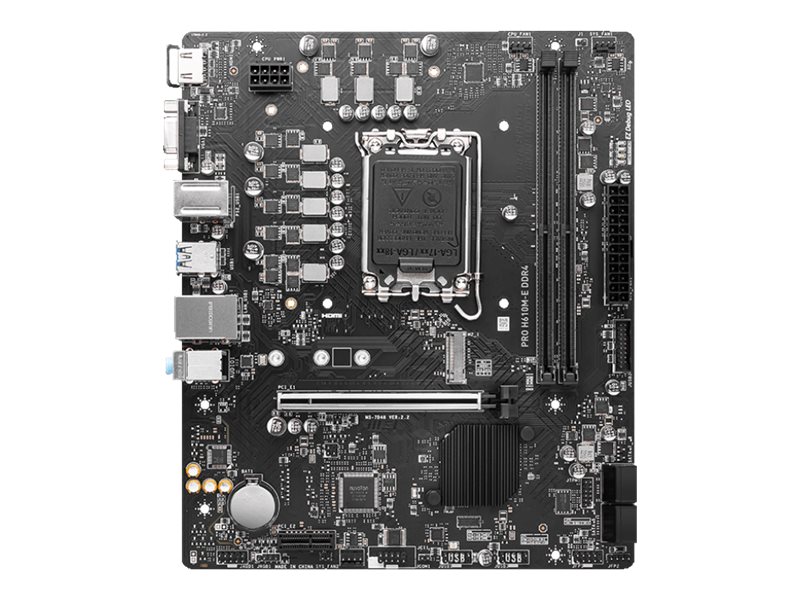

MSI PRO H610M-E DDR4 Micro-ATX LGA1700 Intel H610
€42,67
MSI PRO H610M-E DDR4 - Bundkort - micro ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711377002660Categories:, , Brand:
MSI PRO H610M-E DDR4 - Bundkort - micro ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | MSI PRO H610M-E DDR4 - bundkort - micro ATX - LGA1700 sokkel - H610 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | Intel H610 |
| Processor-socket | 1 x LGA1700 sokkel |
| Kompatible processorer | (supports 12th and 13th Generation Intel Core/Pentium Gold/Celeron) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600, 1 x M.2 |
| USB / FireWire porte | 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Chipset Type | Intel H610 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2133 MHz, 2666 MHz, 3200 MHz |
| Features | Dual channel memory architecture |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | WEEE, FCC Part 15 Class B, JIS C 0950 |
| Type | HD Audio (8-channel) |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) | 1 x PCIe 3.0 x1 |
| Interfaces | 1 x HDMI | 1 x VGA | 2 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x PS/2 keyboard / mouse | 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 1 x serial - header | 1 x SPI - header | 1 x audio - header | 2 x USB 3.2 Gen 1 - header | 4 x USB 2.0 - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA | PCIe 3.0 -connectors: 1 x M.2 |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | Chassis intrusion detection, MSI Audio Boost, Debug LED, MSI Core Boost, MSI PCIe Steel Slot, MSI Memory Boost |
| Cables Included | 2 x Serial ATA cable |
| Depth | 20 cm |
| Included Accessories | IO shield, M.2 clip |
| Software Included | MSI Center |
| Width | 23.6 cm |
