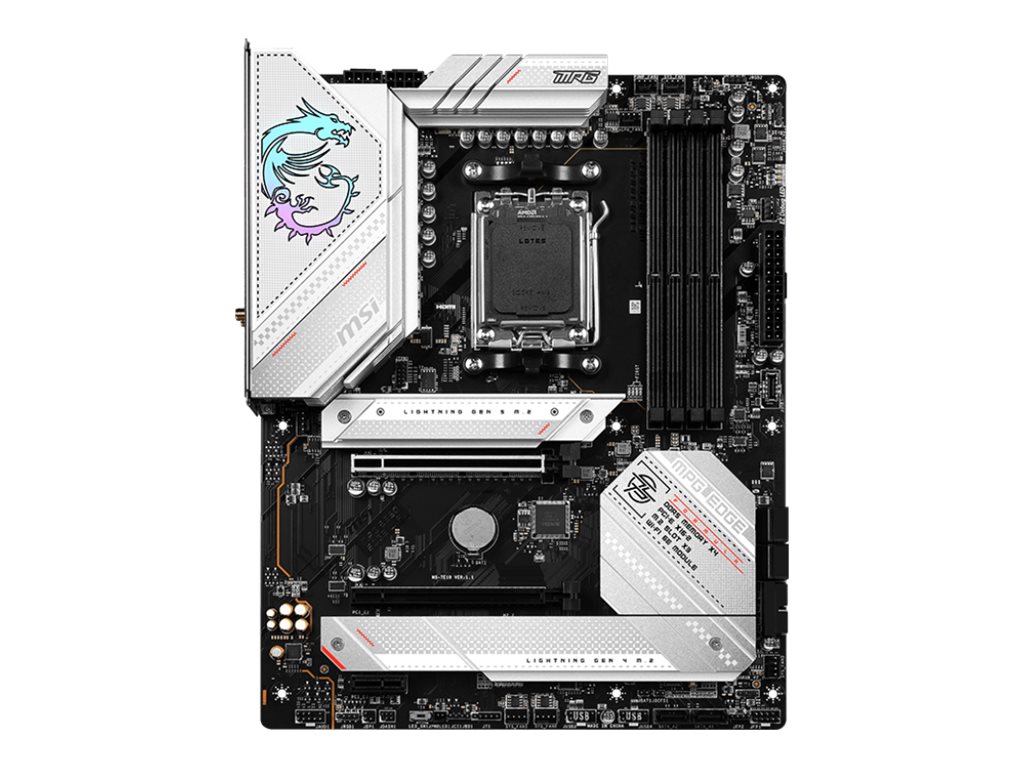

MSI MPG B650 EDGE WIFI ATX AM5 AMD B650
€244,50
MSI MPG B650 EDGE WIFI - Bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711377010191Categories:, , Brand:
MSI MPG B650 EDGE WIFI - Bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | MSI MPG B650 EDGE WIFI - bundkort - ATX - Socket AM5 - AMD B650 |
| Produkttype | Bundkort - ATX |
| Chipsættype | AMD B650 / Nuvoton NCT6687D-R |
| Processor-socket | 1 x Socket AM5 |
| Kompatible processorer | (supports Ryzen 7000 Series) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR5, non-ECC, not buffered |
| Lagringsporte | 6 x SATA-600 (RAID), 3 x M.2 |
| USB / FireWire porte | 1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Chipset Type | AMD B650 / Nuvoton NCT6687D-R |
| Compatible Processors | (supports Ryzen 7000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - ATX |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.) |
| Features | Dual channel memory architecture, A-XMP support, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | ErP 2009/125/EC, EMC 2014/30/EU, Directive 2014/35/EU, DisplayPort 1.4, RED 2014/53/EU, ROHS Directive 2011/65/EU |
| Type | HD Audio (8-channel) |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x2 mode) | 1 x PCIe 3.0 x1 | 2 x M.2 socket (PCIe 4.0 x4 mode) | 1 x M.2 socket (PCIe 5.0 x4 mode) |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 1 x LAN (2.5Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 1 x audio line-out (rear) - mini-jack | 1 x microphone - mini-jack | 1 x audio line-out (front surround) - mini-jack | 2 x USB 2.0 | 3 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Ge |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header | 2 x USB 3.2 Gen 1 - header | 4 x USB 2.0 - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 | PCIe 5.0 -connectors: 1 x M.2 |
| BIOS Features | Multilingual BIOS, UEFI BIOS, ACPI 6.4 support, SMBIOS 3.4 support |
| BIOS Type | AMI |
| Hardware Features | 4K resolution support, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, pre-mounted I/O shield, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, double side M.2 Shield FROZR, MSI Audio |
| Cables Included | 2 x Serial ATA cable |
| Depth | 30.48 cm |
| Included Accessories | 2 x M.2 Hex screws, Wi-Fi antenna, cable stickers, 2 x EZ M.2 clips |
| Width | 24.384 cm |
