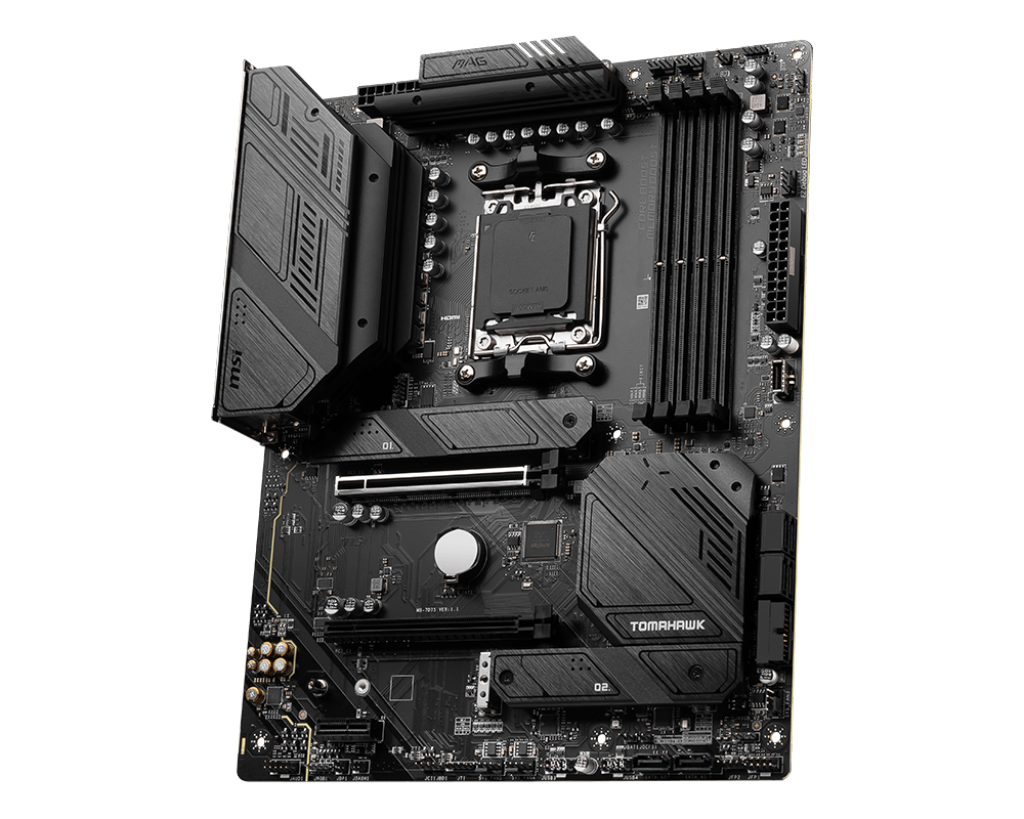

MSI Mag B650 Tomahawk Wifi
€151,51
MSI MAG B650 TOMAHAWK WIFI - ATX - AM5
Availability: In stock
Secure payment · Fast delivery
EAN:4711377010153Categories:, , Brand:
MSI MAG B650 TOMAHAWK WIFI - ATX - AM5
Specifications
Specifications
| Socket | AM5 |
| Chipset | AMD B650 |
| Supported Memory Speeds | 6600MHz+(OC), 6400MHz(OC), 6200MHz(OC), 6000MHz(OC), 5800MHz(OC), 5600MHz(OC), 5400MHz(OC), 5200MHz(OC), 5000MHz(OC), 4800MHz(JEDEC) |
| Memory Slots | 4x DDR5 |
| Ethernet | Realtek® RTL8125B 2.5Gbps LAN |
| Wifi | AMD Wi-Fi 6E, 2.4GHz/ 5GHz or 6GHz |
| Bluetooth | 5.2 |
| I/O Ports | 1 x DisplayPort 1.4, 1 x 2.5G LAN Port, 2 x USB 2.0 Port, 4 x USB 3.2 Gen 1 5Gbps Type-A, Wi-Fi / Bluetooth Antenna Module, 5 x HD Audio Connectors, 1 x Flash BIOS Button, 1 x HDMI™ 2.1 Port, 3 x USB 3.2 Gen 2 10Gbps Type-A, 1 x USB 3.2 Gen 2x2 20Gbps Type-C, 1 x Optical S/PDIF OUT |
| Audio | Realtek® ALC4080 Codec |
| Supported OS | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX, 243.84mm x 304.8mm |
| Chipset Type | AMD B650 / Nuvoton NCT6687D-R |
| Compatible Processors | (supports Ryzen 7000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - ATX |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.) |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | ErP 2009/125/EC, EMC 2014/30/EU, Directive 2014/35/EU, DisplayPort 1.4, RED 2014/53/EU, ROHS Directive 2011/65/EU |
| Type | HD Audio (8-channel) |
| Network Controller | Realtek RTL8125B |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4 mode) | 1 x PCIe 3.0 x1 | 3 x M.2 socket (PCIe 4.0 x4 mode) |
| Interfaces | 1 x HDMI | 1 x DisplayPort | 1 x LAN (2.5Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 1 x audio line-out (rear) - mini-jack | 1 x microphone - mini-jack | 1 x audio line-out (front surround) - mini-jack | 2 x USB 2.0 | 3 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Ge |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header | 2 x USB 3.2 Gen 1 - header | 4 x USB 2.0 - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 |
| BIOS Features | Multilingual BIOS, UEFI BIOS, ACPI 6.4 support, SMBIOS 3.4 support |
| BIOS Type | AMI |
| Hardware Features | Digital PWM, 4K resolution support, Debug LED, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, overvoltage protection, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, MSI Core Boost, Extended Heatsink Design, MSI Audio Boost 5, Windows 11 compat |
| Cables Included | 1 x Serial ATA cable |
| Depth | 30.48 cm |
| Included Accessories | Wi-Fi antenna, cable stickers, 2 x EZ M.2 clips |
| Width | 24.384 cm |
