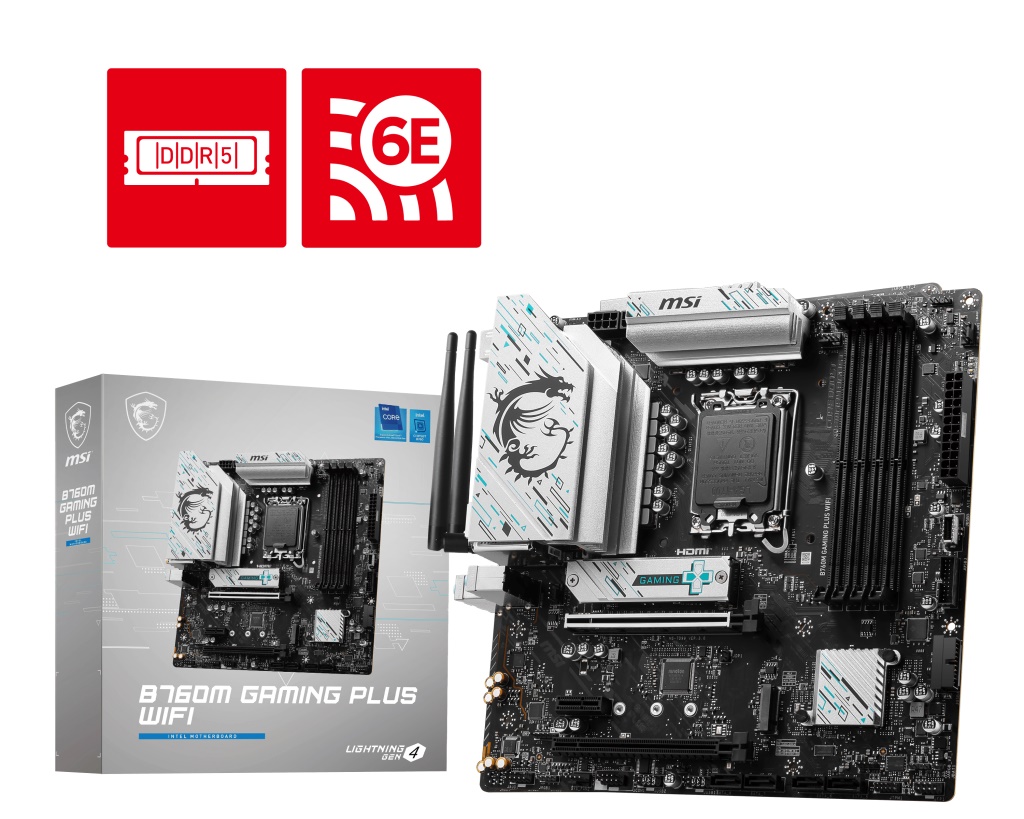

MSI B760M Gaming Plus WIFI Micro-ATX LGA1700
€101,36
MSI B760M GAMING PLUS WIFI - Bundkort - micro ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711377154017Categories:, , Brand:
MSI B760M GAMING PLUS WIFI - Bundkort - micro ATX - LGA1700 sokkel - B760 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Chipsættype | Intel B760 |
| Kompatible processorer | LGA 1700, Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| RAM understøttet | 4 DIMM slots - DDR5, non-ECC, not buffered, Maximum Memory Capacity 192GB |
| Onboard Graphics | 2x HDMI 2.1, 2x DisplayPort 1.4 |
| PCI-e slots | 2x PCI-E x16 slot (1x PCIe 4.0 x16 from CPU, 1x PCIe 4.0 x4 from chipset), 1x PCI-E x1 slot (1x PCIe 3.0 x1 from chipset) |
| Lageråbninger | 2x M.2 (1x From CPU supports up to PCIe 4.0 x4, 1x From Chipset supports up to PCIe 4.0 x4 / SATA mode), 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Rear USB | 2x USB 2.0 (Rear), 2x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen2 Type A (Rear) |
| Front USB | 4x USB 2.0 (Front), 4x USB 3.2 Gen1 Type A (Front), 1x USB 3.2 Gen1 Type C (Front) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Trådløs | Intel Wi-Fi 6E (M.2 Key-E slot), Bluetooth 5.3, FIPS, FISMA |
| Lyd | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LED feature | 4x EZ Debug LED |
| Mål | mATX - 243.84 x 243.84mm |
