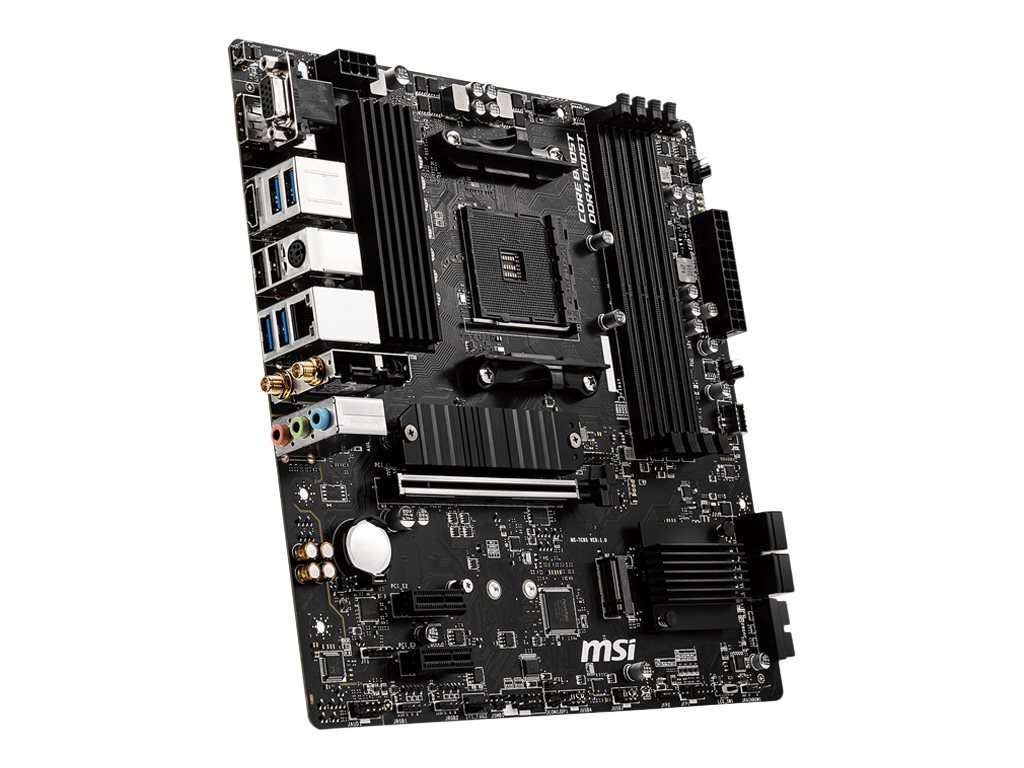

MSI B550M PRO-VDH WIFI Micro-ATX AM4 AMD B550
€94,11
MSI B550M PRO-VDH WIFI - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen1, USB 3.2 Gen 1 - Bluetooth, Gigabit LAN, Wi-Fi - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4719072733698Categories:, , Brand:
MSI B550M PRO-VDH WIFI - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen1, USB 3.2 Gen 1 - Bluetooth, Gigabit LAN, Wi-Fi - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | MSI B550M PRO-VDH WIFI - bundkort - micro ATX - Socket AM4 - AMD B550 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | AMD B550 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM slots - DDR4, non-ECC, ECC (operation in non-ECC mode), not buffered |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Maks. allokeret RAM-størrelse | 16 GB |
| Audio | HD Audio (8-kanaler) |
| LAN | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
| Max Allocated RAM Size | 16 GB |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Network Controller | Realtek RTL8111HN / Intel Dual Band Wireless-AC 3168 |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 2 x PCIe 3.0 x1 |
| Interfaces | 1 x LAN (Gigabit Ethernet) | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 4 x USB 3.2 Gen 1 | 1 x PS/2 keyboard / mouse | 2 x USB 2.0 | 1 x HDMI | 1 x DisplayPort | 1 x VGA |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen 1 - header | 1 x audio - header | 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 | PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Hardware Features | MSI Audio Boost, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, MSI Mystic Light Sync |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | 2 antennas, case badge, I/O back cover |
| Software Included | Drivers & utilities |
| Width | 24.4 cm |
