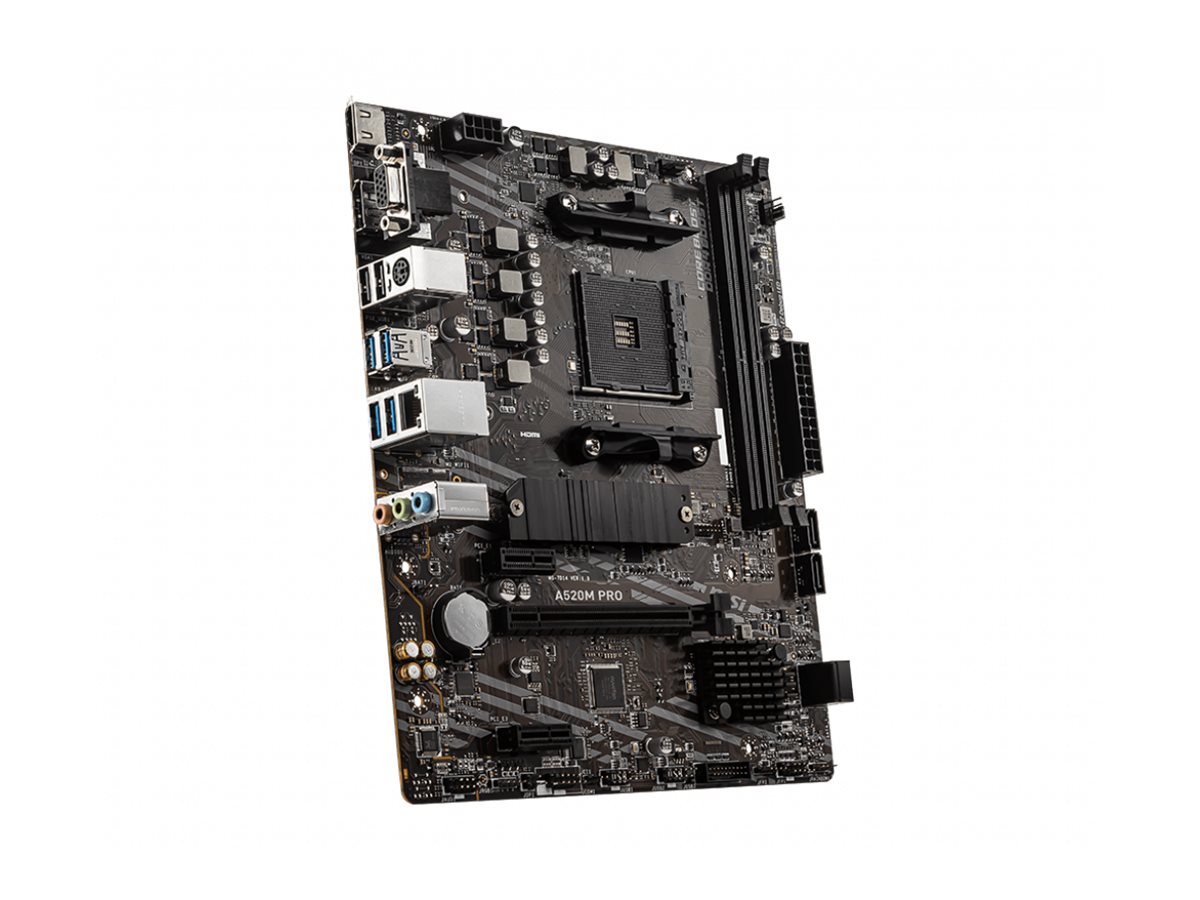

MSI A520M PRO Micro-ATX AM4 AMD A520
€51,80
MSI A520M PRO - Bundkort - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4719072755492Categories:, , Brand:
MSI A520M PRO - Bundkort - micro ATX - Socket AM4 - AMD A520 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| Produktbeskrivelse | MSI A520M PRO - bundkort - micro ATX - Socket AM4 - AMD A520 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | AMD A520 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter 3. Generation Ryzen og Ryzen 4000 G-Serie) |
| Max RAM-størrelse | 64 GB |
| RAM understøttet | 2 DIMM slots - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 1 x M.2 |
| USB / FireWire porte | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Maks. allokeret RAM-størrelse | 2 GB |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Chipset Type | AMD A520 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen and Ryzen 4000 G-Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 3066 MHz |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
| Max Size | 64 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
| Max Allocated RAM Size | 2 GB |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU | 2 x DIMM 288-pin | 1 x PCIe x16 | 2 x PCIe 3.0 x1 |
| Interfaces | 1 x LAN (Gigabit Ethernet) | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 4 x USB 3.2 Gen 1 | 1 x PS/2 keyboard / mouse | 2 x USB 2.0 | 1 x HDMI | 1 x DisplayPort | 1 x VGA |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | MSI Audio Boost, Debug LED, Turbo M.2, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI Mystic Light Sync |
| Cables Included | 2 x Serial ATA cable |
| Depth | 21 cm |
| Included Accessories | Case badge, I/O back cover |
| Software Included | Drivers & utilities |
| Width | 24.4 cm |
