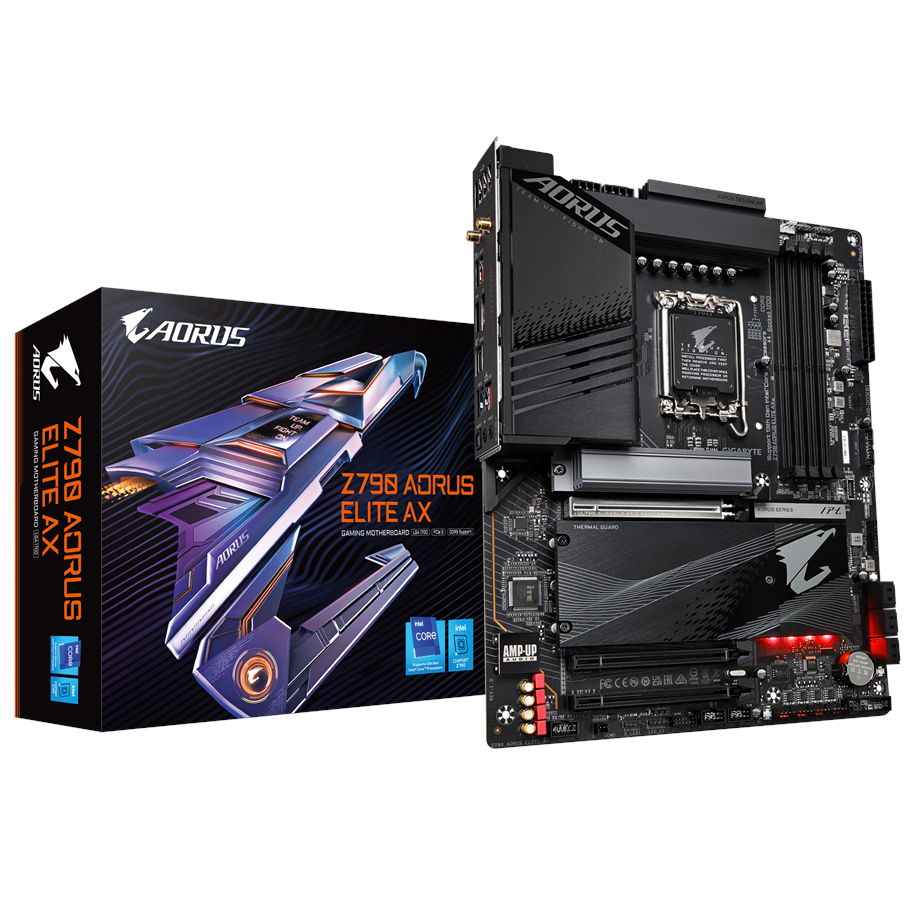

Gigabyte Z790 Aorus Elite AX - DDR5
€191,36
Gigabyte Z790 Aorus Elite AX - DDR5
Availability: In stock
Secure payment · Fast delivery
EAN:4719331849467Categories:, , Brand:
Gigabyte Z790 Aorus Elite AX - DDR5
Specifications
Specifications
| Socket | LGA1700 |
| Chipset | Intel® Z790 Express Chipset |
| RAM Type | DDR5 - Un-Buffered DIMM |
| RAM Hastighed | DDR5 7600MHz(O.C.), 7400MHz(O.C.), 7200(O.C.), 7000MHz(O.C.), 6800MHz(O.C.), 6600MHz(O.C.), 6400MHz(O.C.), 6200MHz(O.C.), 6000MHz(O.C.), 5800MHz(O.C.), 5600MHz(O.C.), 5400MHz(O.C.), 5200MHz(O.C.), 4800MHz, 4000MHz |
| RAM Kapacitet (Maks.) | 128 GB (32GB x 4) |
| Grafik | Integrated Graphics Processor-Intel® HD Graphics |
| Lyd | Realtek® Audio CODEC |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi | Intel® Wi-Fi 6E AX211 |
| I/O Porte | 1x USB Type-C® port with USB 3.2 Gen 2x2 support, 2x USB 3.2 Gen 2 Type-A ports (red), 3x USB 3.2 Gen 1 ports, 4x USB 2.0/1.1 ports, 2x SMA antenna connectors (2T2R), 1x HDMI 2.0 port, 1x DisplayPort, 1x RJ-45 port, 1x optical S/PDIF Out connector, 2x audio jacks |
| Understøttede OS | Windows 10/11 64-bit |
| Form Faktor | ATX |
| Chipset Type | Intel Z790 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1700 Socket |
| Product Type | Motherboard - ATX |
| Bus Clock | 5200 MHz (O.C.), 5400 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR5 |
| Compliant Standards | WEEE, EU RoHS, HDCP 2.3, UKCA, FCC Part 15 Subpart B |
| Type | HD Audio (8-channel) |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x16 | 4 x M.2 socket (2280/22110 M.2 Key M slot) |
| Interfaces | 1 x DisplayPort | 1 x HDMI | 1 x USB-C 3.2 Gen2x2 | 2 x USB 3.2 Gen 2 | 3 x USB 3.2 Gen 1 | 4 x USB 2.0 | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 2 x antenna | 1 x SPDIF out |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header | 1 x USB-C 3.2 Gen 2 - header | 4 x USB 2.0 - header | 2 x Thunderbolt - header | 1 x SPI - header | 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| BIOS Type | AMI |
| Hardware Features | Q-Flash, Ultra Durable, 2x Copper PCB, 6 Layer PCB, Q-Flash Plus, RGB FUSION, Ultra Durable PCIe Armor, Water Pump Header, pre-mounted I/O shield, Solid Pin Power Connectors, DIY Friendly Design, GIGABYTE Smart Fan 6, MultiKey, M.2 Thermal Guard III, |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, fan control |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |
| Included Accessories | External antenna |
| Package Details | Box |
| Software Included | Norton Internet Security |
| Width | 30.5 cm |
