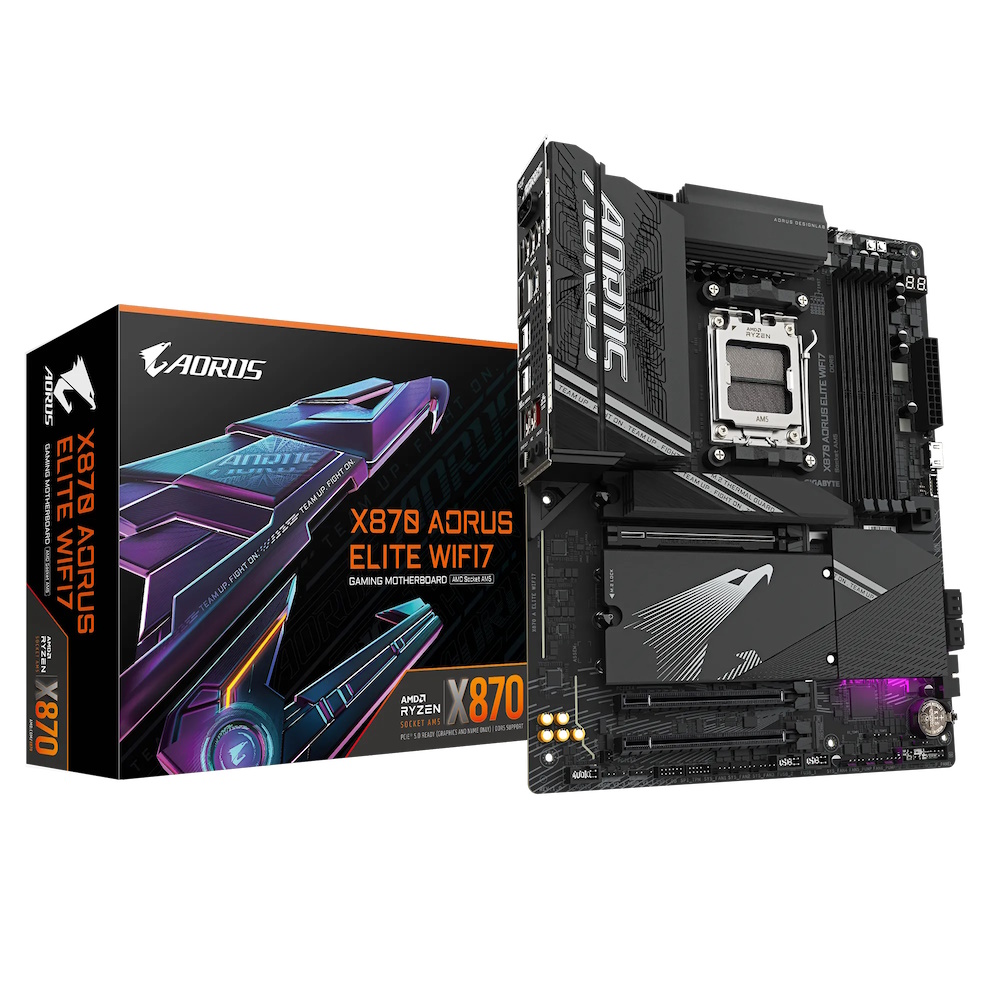

Gigabyte X870 Aorus Elite WIFI7 ATX AM5 Socket DDR5
€215,26
Gigabyte X870 Aorus Elite WIFI7 Bundkort - AMD X870 - AMD AM5 socket - DDR5 RAM - ATX
Availability: In stock
Secure payment · Fast delivery
EAN:4719331864811Categories:, , Brand:
Gigabyte X870 Aorus Elite WIFI7 Bundkort - AMD X870 - AMD AM5 socket - DDR5 RAM - ATX
Specifications
Specifications
| CPU | AMD Socket AM5 (Ryzen™ 9000, 8000, 7000) |
| Chipset | AMD X870 |
| Memory | 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity), Dual channel non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| Onboard Graphics | 2x USB4 Type-C (DisplayPort 1.4 alt mode), 1x HDMI 2.1, 1x front HDMI 1.4 |
| Audio | Realtek® ALC1220 CODEC |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0), Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1), Bluetooth 5.4 |
| Expansion Slots | 1x PCI Express x16 slot (5.0 x16 mode or x8 when M2B_CPU or M2C_CPU), 1x PCI Express x16 slot (4.0 x4 mode), 1x PCI Express x16 (3.0 x2 mode) |
| Storage Interface | 1x M.2 (Up to 5.0 x4/x2), 2x (Up to 5.0 x4/x2), 1x M.2 (PCIe 4.0 x4/x2) |
| Back panel connectors | 2x USB4 Type-C (DP alt mode support), 4x USB 3.2 Gen 1, 4x USB 2.0/1.1, 2x USB 3.2 Gen 2 Type-A (red), 1x HDMI port, 2x antenna connectors (2T2R), 1x RJ-45 port, 1x optical S/PDIF, 2x audio jacks |
| USB internal | 1x USB Type-C (3.2 Gen 2x2), 2x USB 3.2 Gen 1, 4x USB 2.0/1.1 |
| I/O Controller | iTE® I/O Controller Chip |
| BIOS | 256 Mbit flash AMI UEFI BIOS |
| Operating System Support | Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
