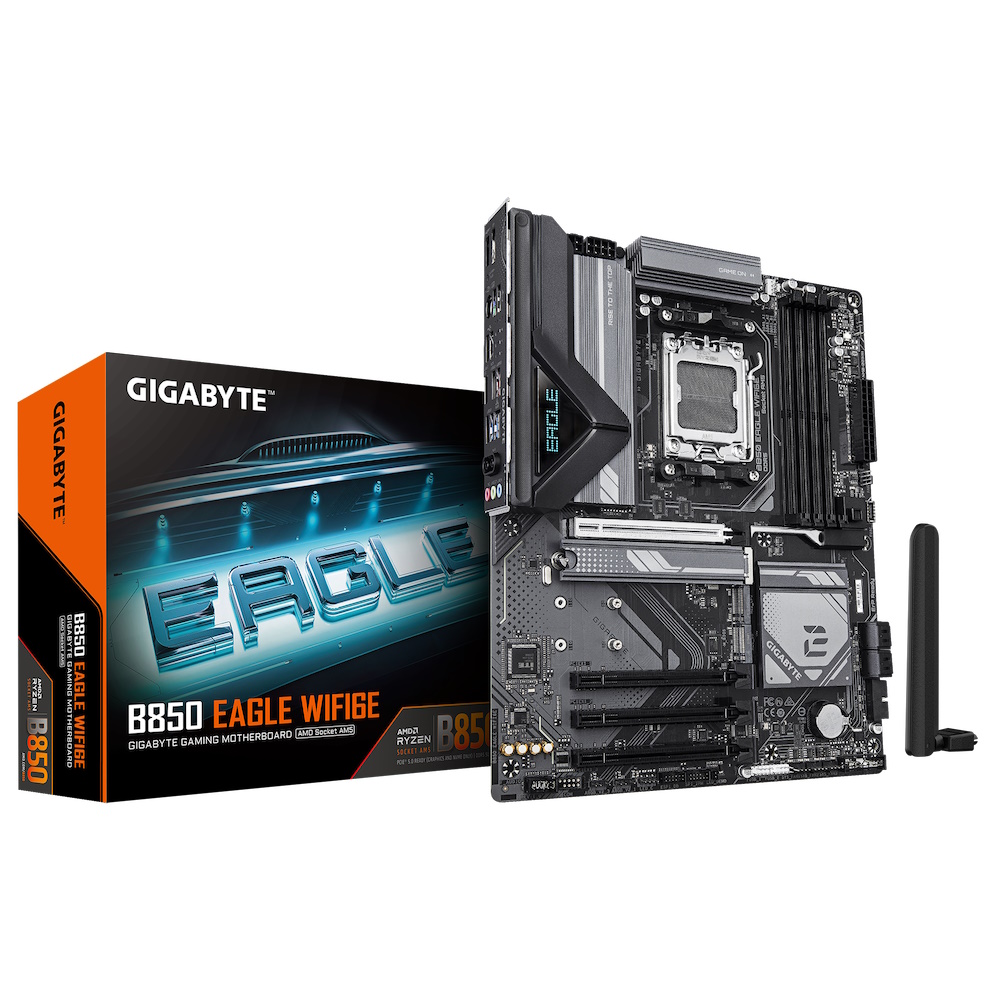

Gigabyte B850 Eagle WIFI6E ATX AM5
€140,69
Gigabyte B850 EAGLE WIFI6E - Bundkort - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 6E, Bluetooth, Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4719331866587Categories:, , Brand:
Gigabyte B850 EAGLE WIFI6E - Bundkort - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 6E, Bluetooth, Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000, 8000, 7000 |
| Chipset | AMD B850 |
| Memory | 4x DDR5 DIMM, up to 256 GB |
| Onboard Graphics | 1x DisplayPort 1.4, 1x HDMI 2.1 |
| Audio | Realtek® Audio CODEC |
| Wireless | Intel® Wi-Fi 6E AX210 (PCB rev. 1.0), Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1), Bluetooth 5.3 |
| Expansion Slots | 1x PCI Express x16 slot (Ryzen 9000/7000: PCIe 5.0 x16 mode, Ryzen 8000: PCIe 4.0 x8/x4 mode), 3x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface | 1x M.2, M key, type 22110/2280 (Ryzen 9000/7000: PCIe 5.0 x4/x2, Ryzen 8000: PCIe 4.0 x4/x2), 1x M.2 M key, type 22110/2280 (PCIe 4.0 x4/x2), 1x M.2 M key, type 22110/2280 (PCIe 4.0 x2), 4x SATA 6Gb/s |
| USB | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support, 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header, 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 4 x USB 2.0/1.1 ports on the back panel, 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Back Panel Connectors | 1 x DisplayPort*, 1 x HDMI port*, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x USB 3.2 Gen 2 Type-A ports (red), 1 x USB Type-C® port, with USB 3.2 Gen 1 support, 1 x RJ-45 port, 2 x USB 3.2 Gen 1 ports, 2 x antenna connectors (2T2R), 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| BIOS | 256 Mbit flash AMI UEFI BIOS |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
